Installation notes:

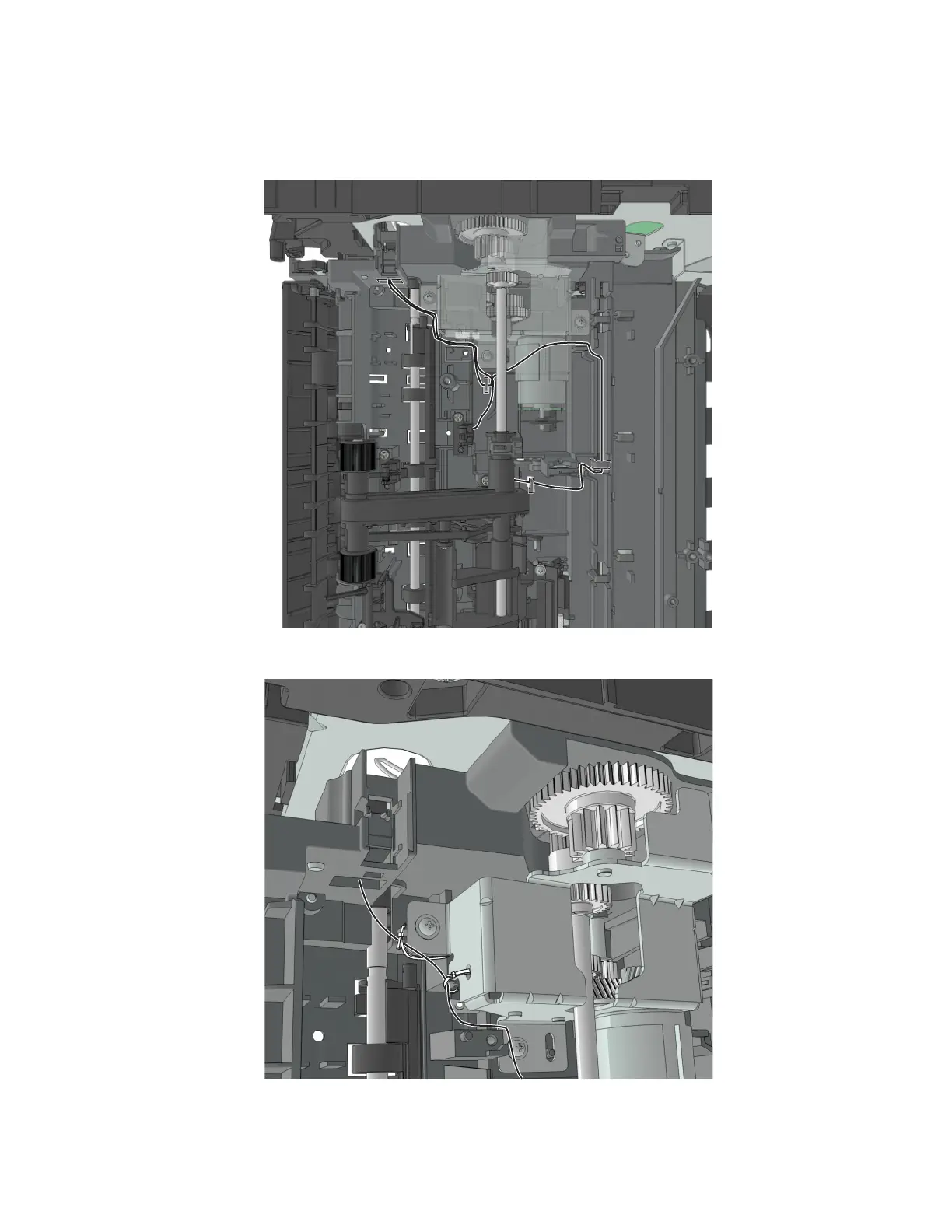

a Install the duplex sensor, followed by the input sensor.
b Route the cable using the new path.
c Secure the cable near the lift plate gearbox using cable ties. Cut o any excess cable tie.
