Duplex transport assembly removal

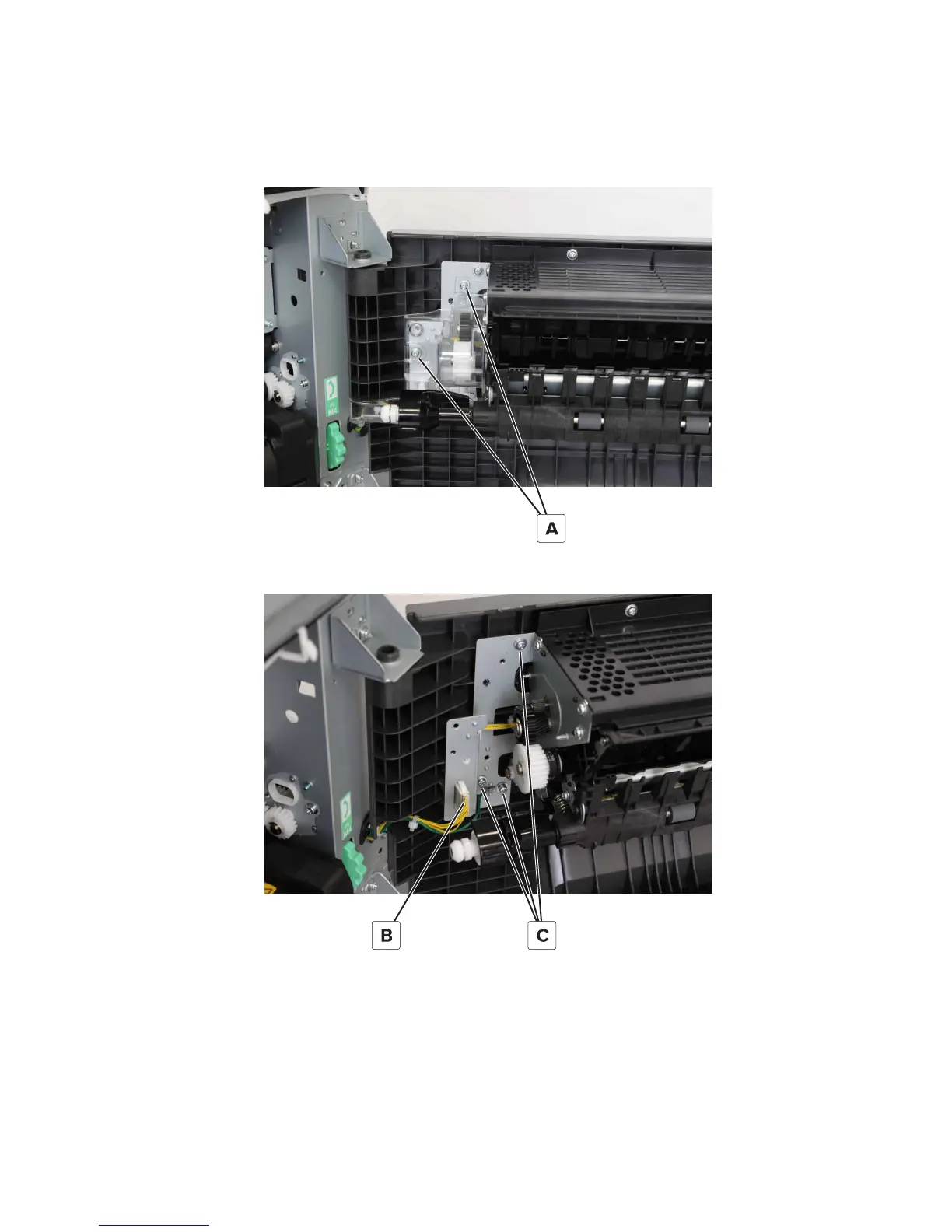

1 Open the right door.
2 Remove the two screws (A), and then remove the cover.
3 Disconnect the cable (B), and then remove the three screws (C).
7421
Repair information
285
