4-6 Service Manual

7462

Go Back

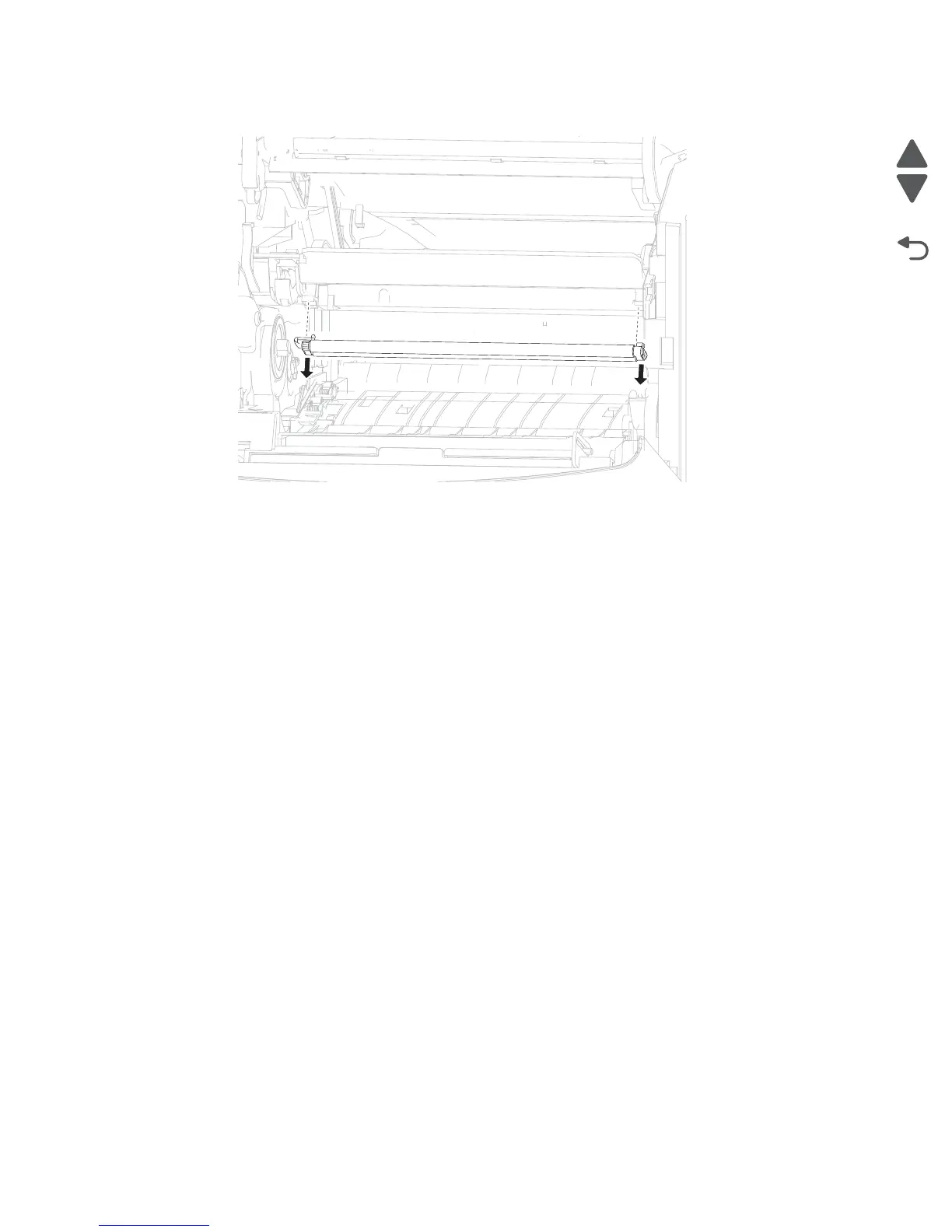

4. Detach the right side of the charge roll assembly from the machine.

5. Remove the charge roll assembly.

Replacement Warning: When replacing the charge roll assembly, avoid touching the charge roll surface.
