Sensor (standard bin exit) actuator assembly removal
1. Open the upper rear door.
2. Remove the fuser access panel.
3. Remove the redrive assembly. See “Redrive assembly removal (models X651, X652, X654, and
X656)” on page 4-100 or “Redrive assembly removal (model X658)” on page 4-99.

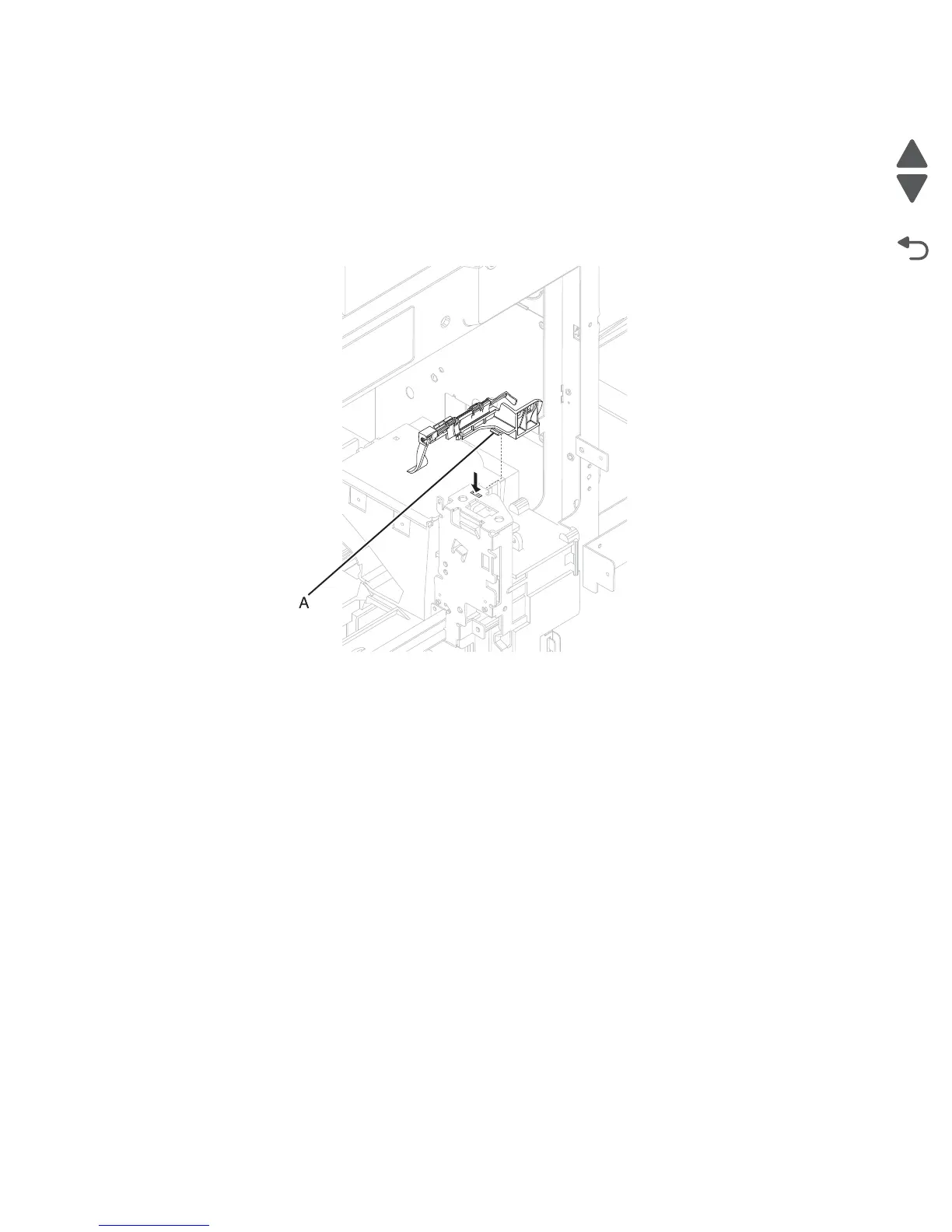

4. Using a flat-blade screwdriver, press on the tab (A) securing the sensor (standard bin exit) actuator
assembly.
5. Position the sensor (standard bin exit) actuator assembly where the laser cover can be removed.
6. Remove the laser cover. See “Laser cover removal (model X658)” on page 4-101.
7. Remove the sensor (standard bin exit) actuator assembly.
