4-8 Service Manual
7462

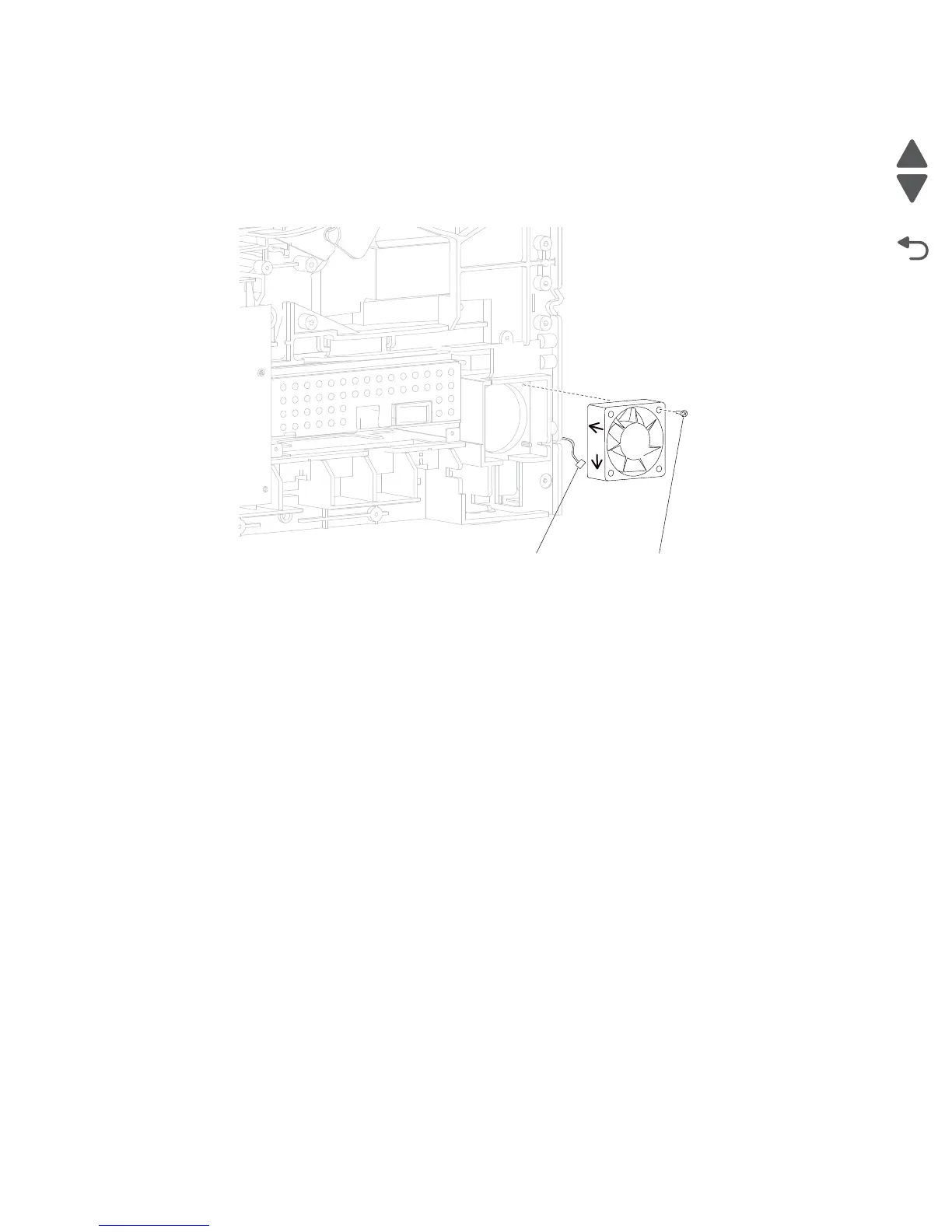

Duplex cooling fan removal
1. Remove the side cover, right. See “Side cover, right removal (models X651, X652, X654, and X656)” on
page 4-119.
2. Remove the screw (A) securing the duplex cooling fan to the machine.
3. Disconnect the connector (B) from the duplex cooling fan.
4. Remove the duplex cooling fan.
Replacement Warning: When replacing the duplex cooling fan, ensure that it is installed as shown in the
picture.
