ADF left hinge removal
1. Remove the ADF unit assembly. See “ADF unit assembly removal (models X651, X652, X654 and
X656)” on page 4-80 or “ADF unit assembly removal (model X658)” on page 4-80.
2. Remove the ADF feed motor bracket assembly with cable. See “ADF feed drive motor assembly
removal” on page 4-73.

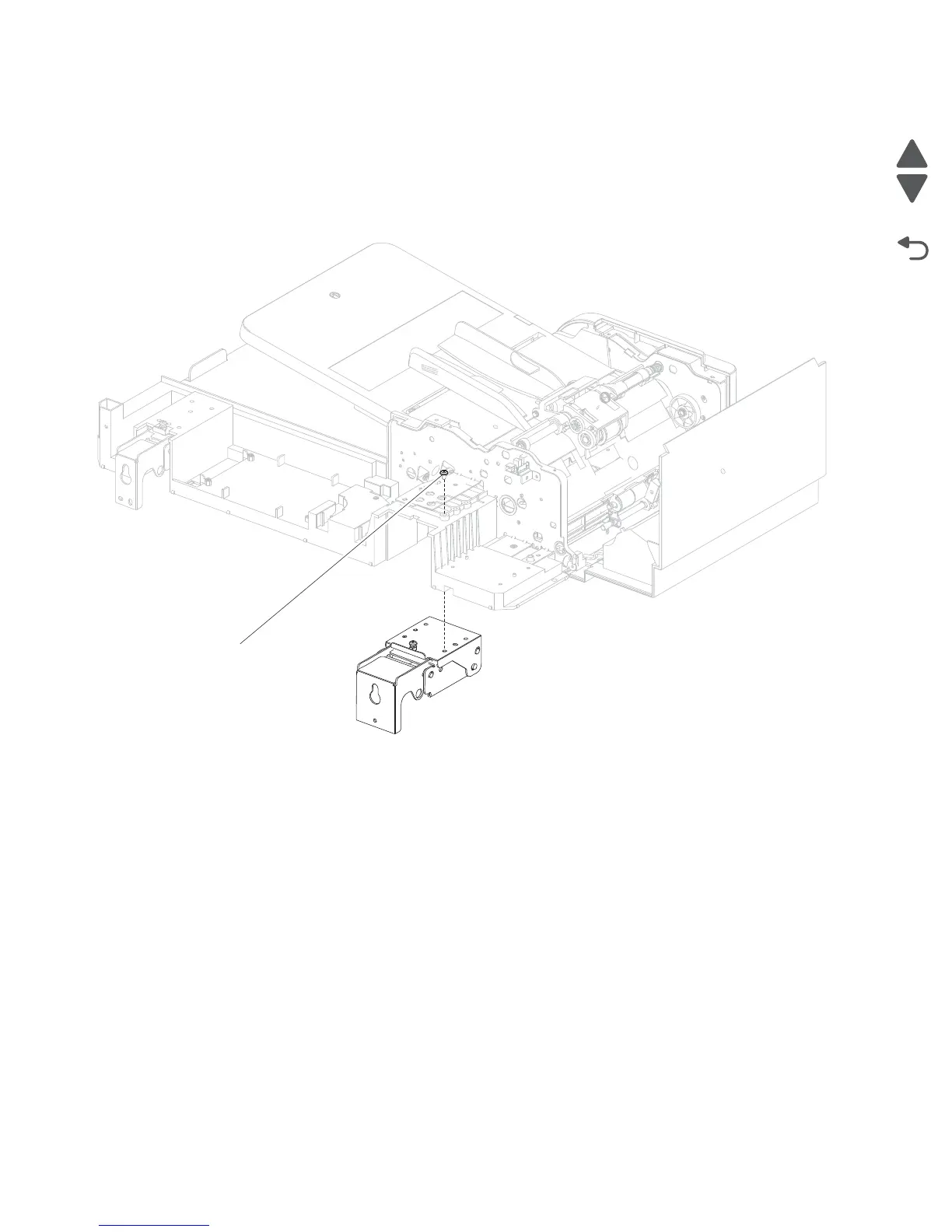

3. Remove the screw (A).
4. Remove the ADF left hinge.
A
