Lexus LS 430 - Page 22

LS 430 CMT - Dual band portable phone
52
4.7

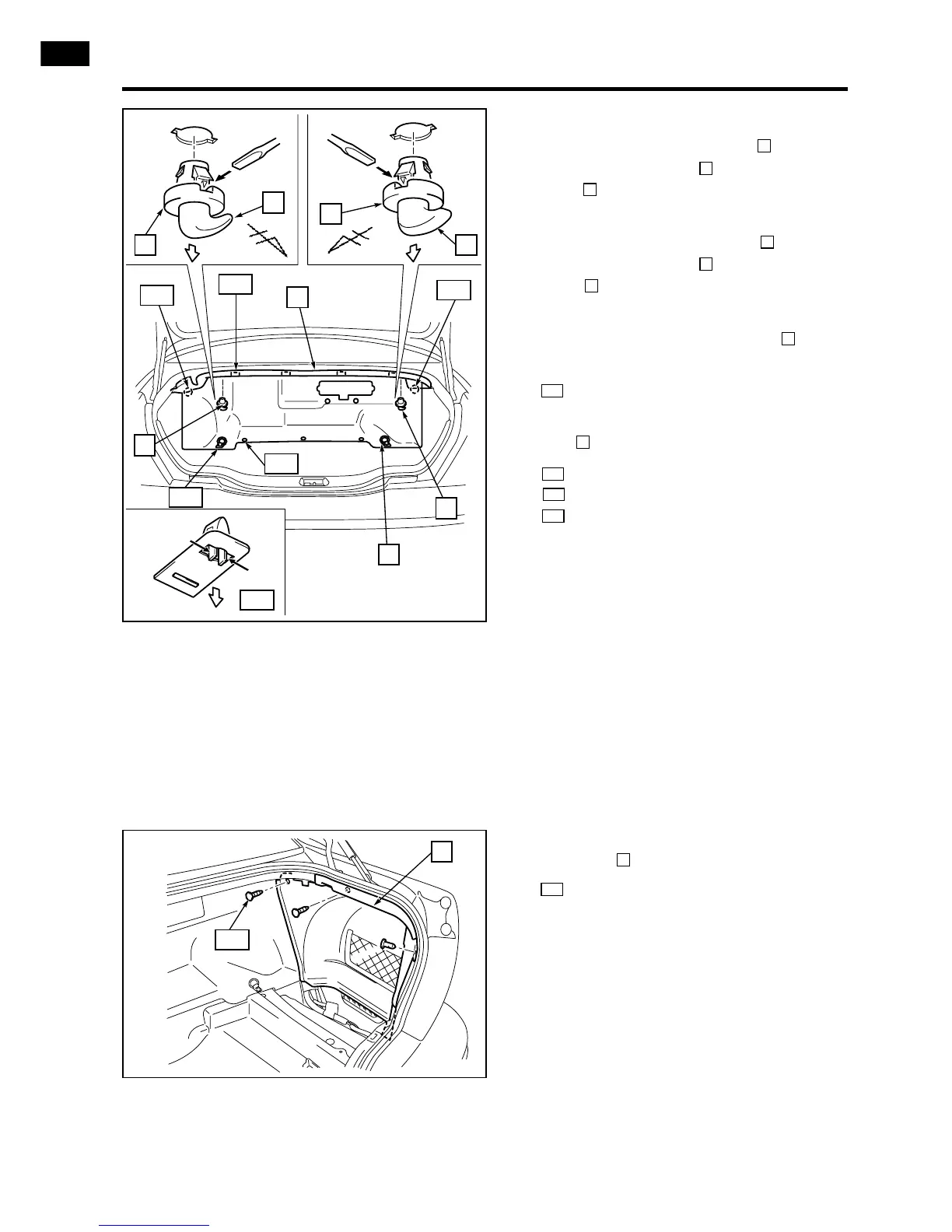

a) Remove the hook clip (LH) .
Turn the clip head of the hook clip
(LH) to the front of the vehicle when
removing.
b) Remove the hook clip (RH) .
Turn the clip head of the hook clip
(RH) to the back of the vehicle when
removing.
c) Remove the D-ring tie downs (LH +
RH).
: Bolt (2x)
d) Remove the luggage compartment front
trim .
: Hook (4x)
: Clip (5x)
: Clip (2x)
106
112
100
26
105
20
27
24
27
25
24
25
4.8 Remove the luggage compartment side
trim (RH) .
: Clip (3x)
112
28
25
24
27
24
106
100
26
106
25
105
112
20
27
106
Pinch this
28
112
