The Leybold MAG integra pumping system consists of:
■
The MAG integra turbo pump
The MAG are turbomolecular pumps uti li zing magnetic bearings.They are
designed to evacuate va cuum chambers down to pressure values in the
high-vacuum range.
The required frequency converter is integrated into the pump for the
MAG ... iP models.
■
The MAG.DRIVE electronic frequency converter
The MAG.DRIVE iM frequency converter is connected to the mains.
It outputs an AC voltage synchronised to the speed for the pump’s motor.
Moreover, the electronic frequency converter processes the measured sig-
nals and controls the magnetic levitation arrangement.

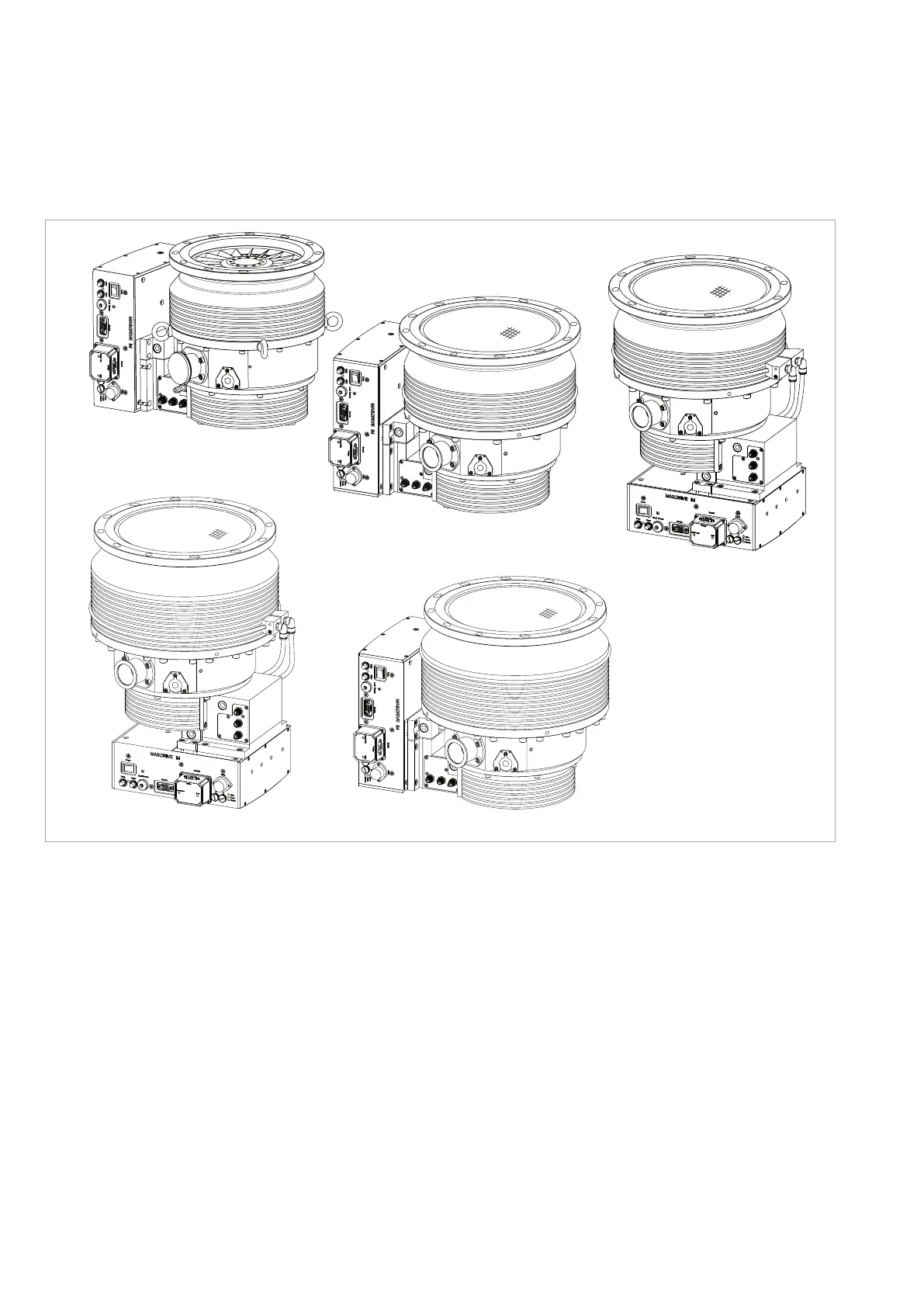

Fig. 1.1 MAG integra models
MAG W 1300 iP
MAG W 1600 iP
MAG W 2000 iP
MAG W 1600 iPL Booster
MAG W 1700 iPL
MAG W 1600 iP Booster
MAG W 1700 iP
MAG W 2200 iPL
MAG W 2200 iP
