LEYBOLD TRIVAC D 2,5 E-LD User Manual

Wearing Parts and Original Spare Parts
41GA01601_002_C1 - 03/2018 - © Leybold
1
2
4
15
12
3
5
10
11
16
17
19
21
18
20
G
7
6
8
9
14
13
17
18
22

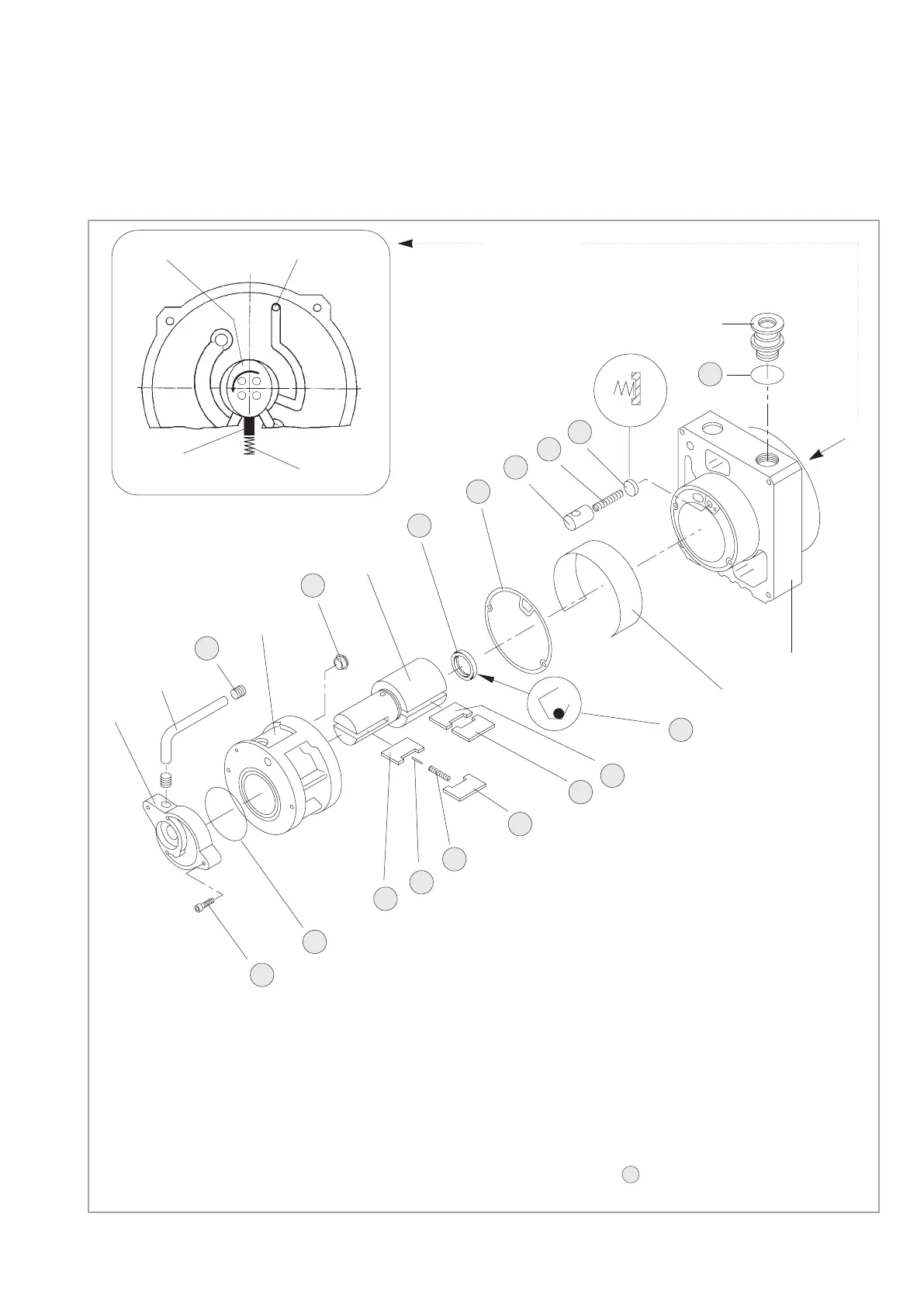

Fig. 12 Complete Set
1 End plate
2 Gas ballast pipe
3 Rubber plug-in component (2x)
4 Forevacuum pot
5 Sealing nipple
6 Rotor
7 Shaft sealing ring
8 Flat seal
9 Tandem valve
10 Compression spring
11 Spacer
12 Intake port
13 O-ring
14 High vacuum bearing piece
15 Oil guiding panel
16 Position/shaft sealing ring
17 Vane (HV)
18 Vane (FV)
19 Compression spring
20 Guide pin
21 O-ring
22 Hex. socket bolt Parts included in the Complete Set
Compression spring
Vane
Oil pump
Silencing nozzle
View ”G”
