LEYBOLD TRIVAC D 2,5 E-LD User Manual

Wearing Parts and Original Spare Parts
38 GA01601_002_C1 - 03/2018 - © Leybold
7.2 Ordering Information for the Maintenance Kits
and the Repair Sets
TRIVAC D 2,5 E-LD
Maintenance kit 1 200 40 022
Maintenance kit 2 200 40 042
Repair set 1 200 40 020
Complete set 200 40 041
The use of the maintenance kits and the repair sets is detailed in the
Tables 5.1 - Maintenance Plan and 6 - Troubleshooting.
7.3 Ordering Information for the Special Tools
TRIVAC D 2,5 E-LD
Special tool for the tie rods 200 02 760
10
1
4
5
7
9
6
2
3
8
11

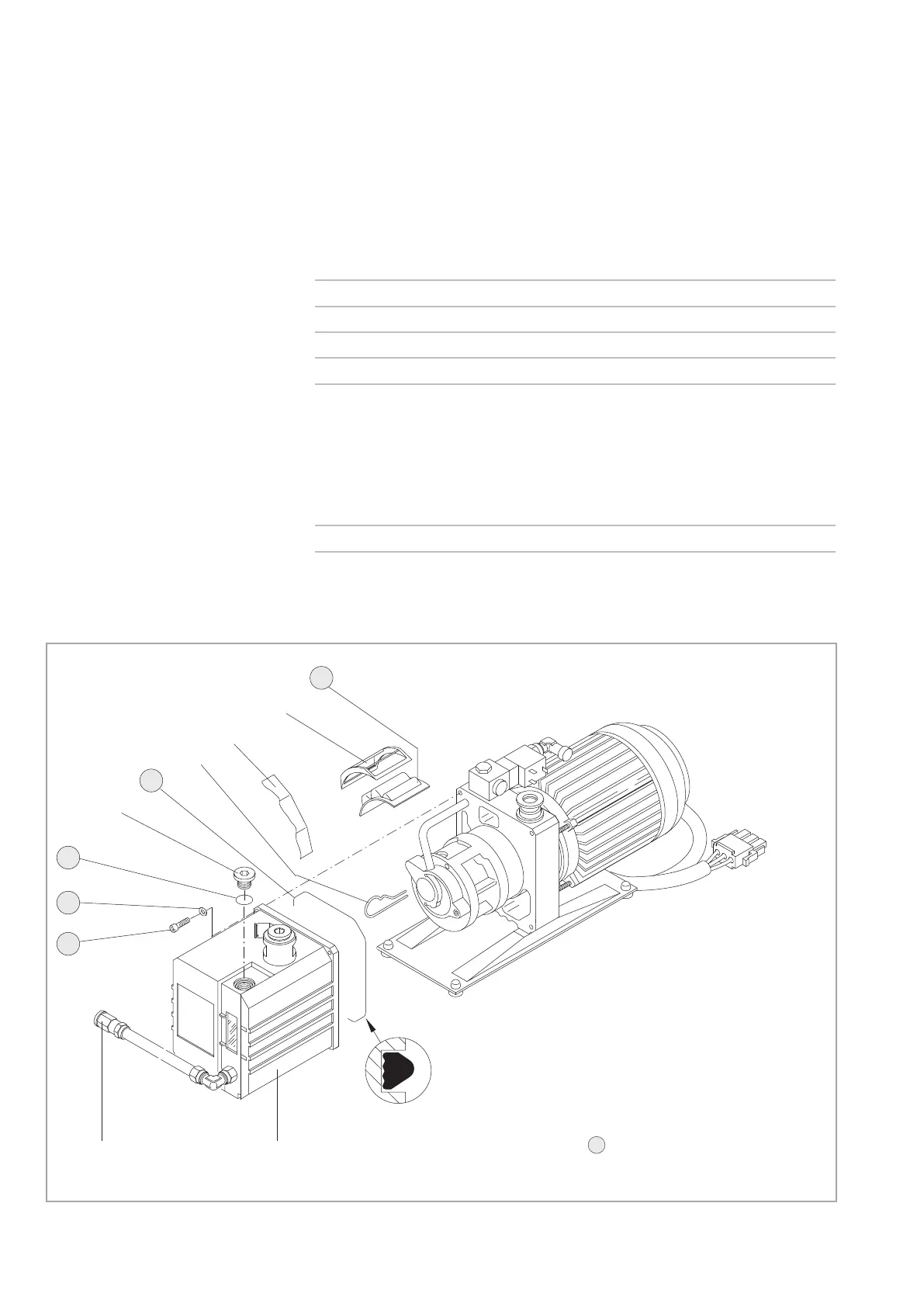

Fig. 9 Maintenance Kit 1
1 Hex. socket screw
2 Washer
3 Gasket
4 Oil fill plug
5 Seal for demister
6 Spring clip
7 Guide panel
8 Holding frame for demister
9 Demister
10 Oil box
11 Oil drain plug
Parts contained in the
Maintenance Kit 1
