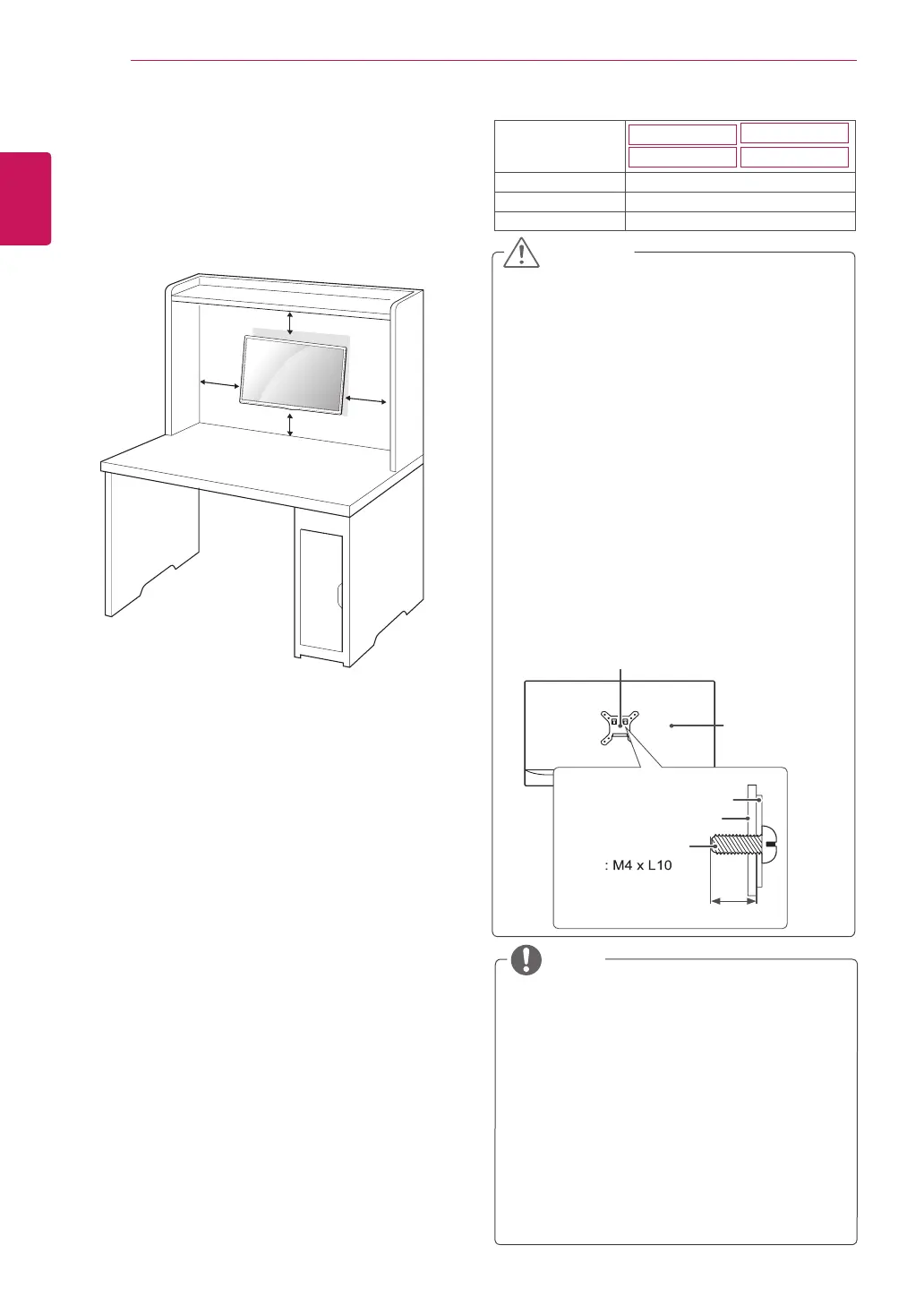

ASSEMBLING AND PREPARING
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1
Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2
If you use screw longer than standard, the
monitor might be damaged internally.
3
If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4
VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications.
5
Please use VESA standard as below.
y
784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
y
787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
10 cm
10 cm
10 cm
10 cm
y
Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y
If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
y
Use only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y
Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
y
Screw length from outer surface of back
cover should be under 8mm.
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit will include an installation
manual and necessary parts.
y
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
y
For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
Back Cover
Wall mount Pad
Wall mount Pad
Back Cover
Standard screw
Max.8mm
Model
22MP56HQ
VESA (A x B) 75 x 75
Standard screw M4
Number of screws 4
24MP56HQ
24EA56VQ
22EA56VQ

LG 24MP56HQ Specifications

General

Panel type	AH-IPS
Aspect ratio	16:9
Backlight type	W-LED
Display surface	Matt
Display diagonal	23.8 \
Separate H/V sync	Yes
Display technology	LED
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
USB Type-A downstream ports quantity	0
Product color	Black, Grey
LED indicators	Power
Tilt angle range	20 - -5 °
Panel mounting interface	75 x 75 mm
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Annual energy consumption	35 kWh
Power consumption (standby)	0.3 W
Power consumption (typical)	24 W
Cables included	VGA

Weight and Dimensions

Depth (with stand)	188 mm
Height (with stand)	436 mm
Weight (with stand)	3100 g
Depth (without stand)	- mm
Width (without stand)	554 mm
Weight (without stand)	- g
