Language
Input Label
SIMPLINK
Key Lock
ISM Method
Low Power
Set ID
SETUP
O
O
AUDIO
O
TIME
O
OPTION G
Prev.
Menu
TIME MACHINE
O
APPENDIX
117
Press the
MMEENNUU
button and then use
D
/
E
button to
select the
OPTION menu.
Press the
G
button and then use
D
/
E
button to
select
SSeett IIDD
.
Press the
G
button and then use
F
/
G
button to
adjust
SSeett IIDD
to choose the desired TV ID number.
• The adjustment range of SET ID is 1~99.
Press
EEXXIITT
button to return to normal TV viewing.
Use this function to specify a set ID number.
Refer to ‘Real Data Mapping’1.
See page
pp..112211
Please make sure the RS-232C configuration below.
If you use different kind of RS-232C cable, system error may occur.
Set ID
2
3
4
1
Language
Input Label
SIMPLINK
Key Lock
ISM Method
Low Power
Set ID
1
2
3
1
GF

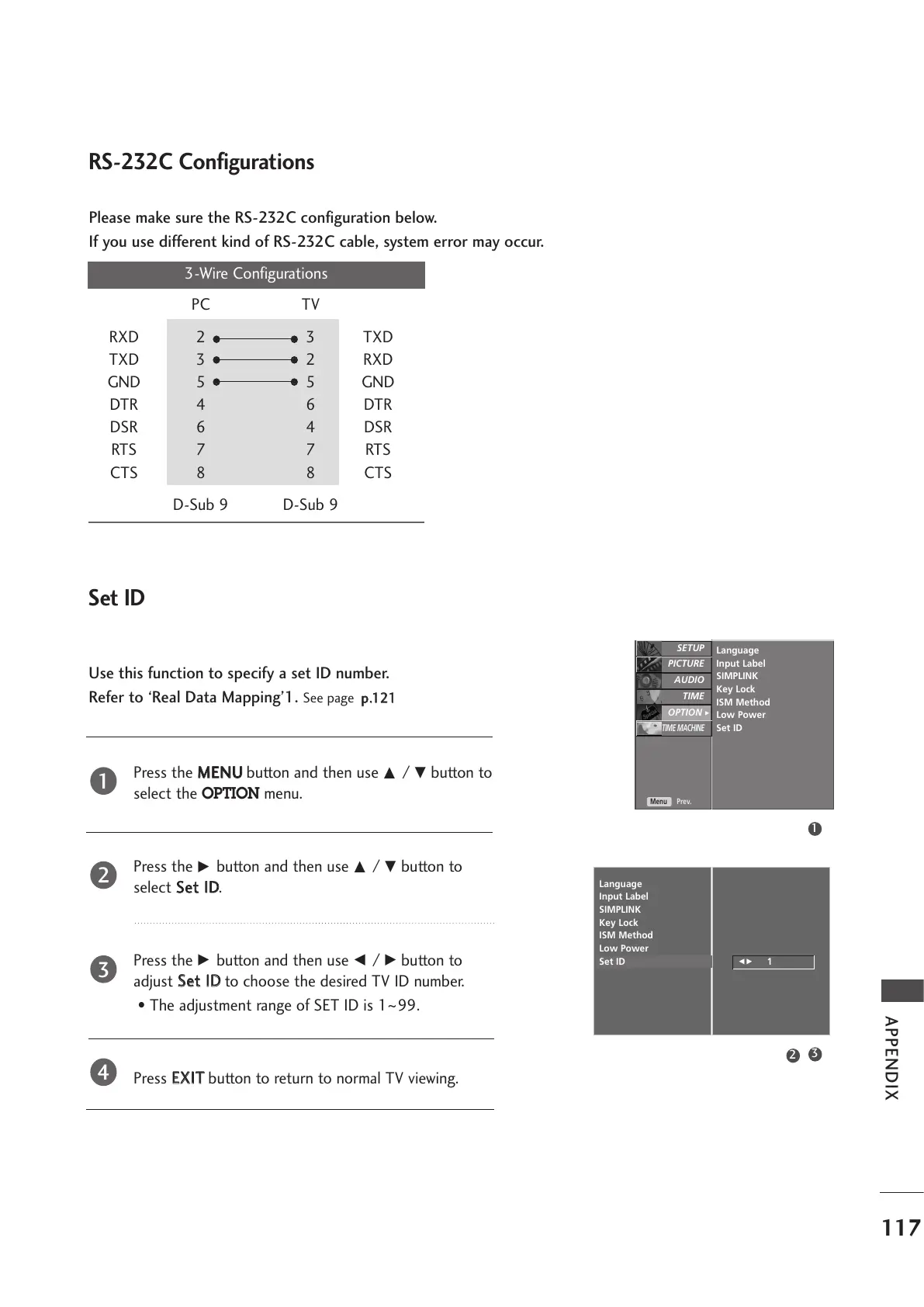

RS-232C Configurations
3-Wire Configurations
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
To Next Page
