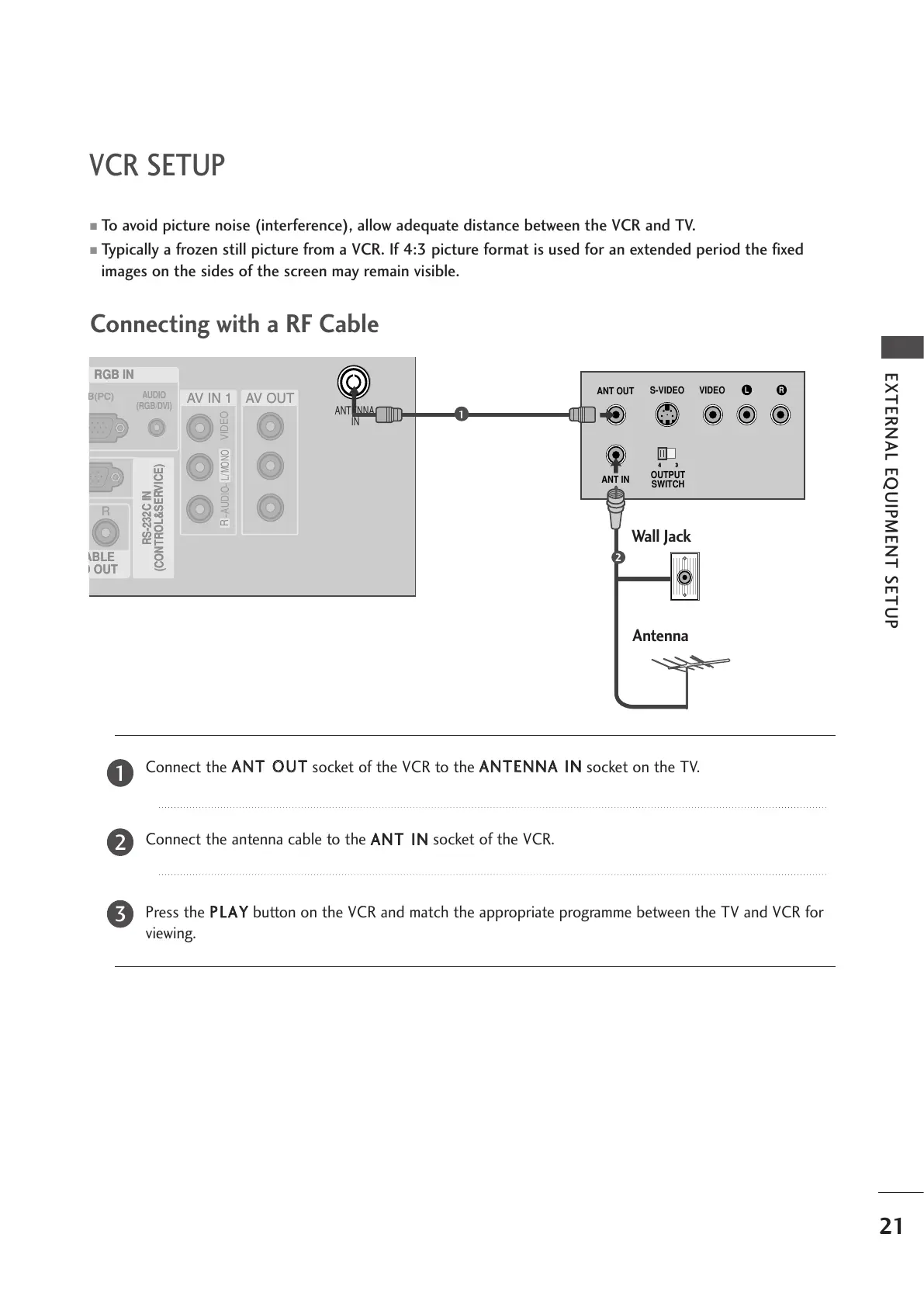

VCR SETUP
EXTERNAL EQUIPMENT SETUP
AV IN 1
L/MONO
R
AUDIO
VIDEO
ABLE
O OUT
ABLE
O OUT
AV IN 1AV IN 1 AV OUTAV OUT
AUDIO
(RGB/DVI)
B(PC)
RGB INRGB IN
RS-232C IN
(CONTROL&SERVICE)
RS-232C IN
(CONTROL&SERVICE)
L/MONO
R
AUDIO
VIDEO
ANTENNA
IN
OUTPUT
SWITCH
ANT IN
R
S-VIDEO VIDEO
ANT OUT
L
USB IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
Wall Jack
Antenna
1
Connecting with a RF Cable
■
To avoid picture noise (interference), allow adequate distance between the VCR and TV.
■
Typically a frozen still picture from a VCR. If 4:3 picture format is used for an extended period the fixed
images on the sides of the screen may remain visible.
Connect the
AANNTT OOUUTT
socket of the VCR to the
AANNTTEENNNNAA IINN
socket on the TV.
Connect the antenna cable to the
AANNTT IINN
socket of the VCR.
Press the
PPLLAAYY
button on the VCR and match the appropriate programme between the TV and VCR for
viewing.
1
2
2
3
1
