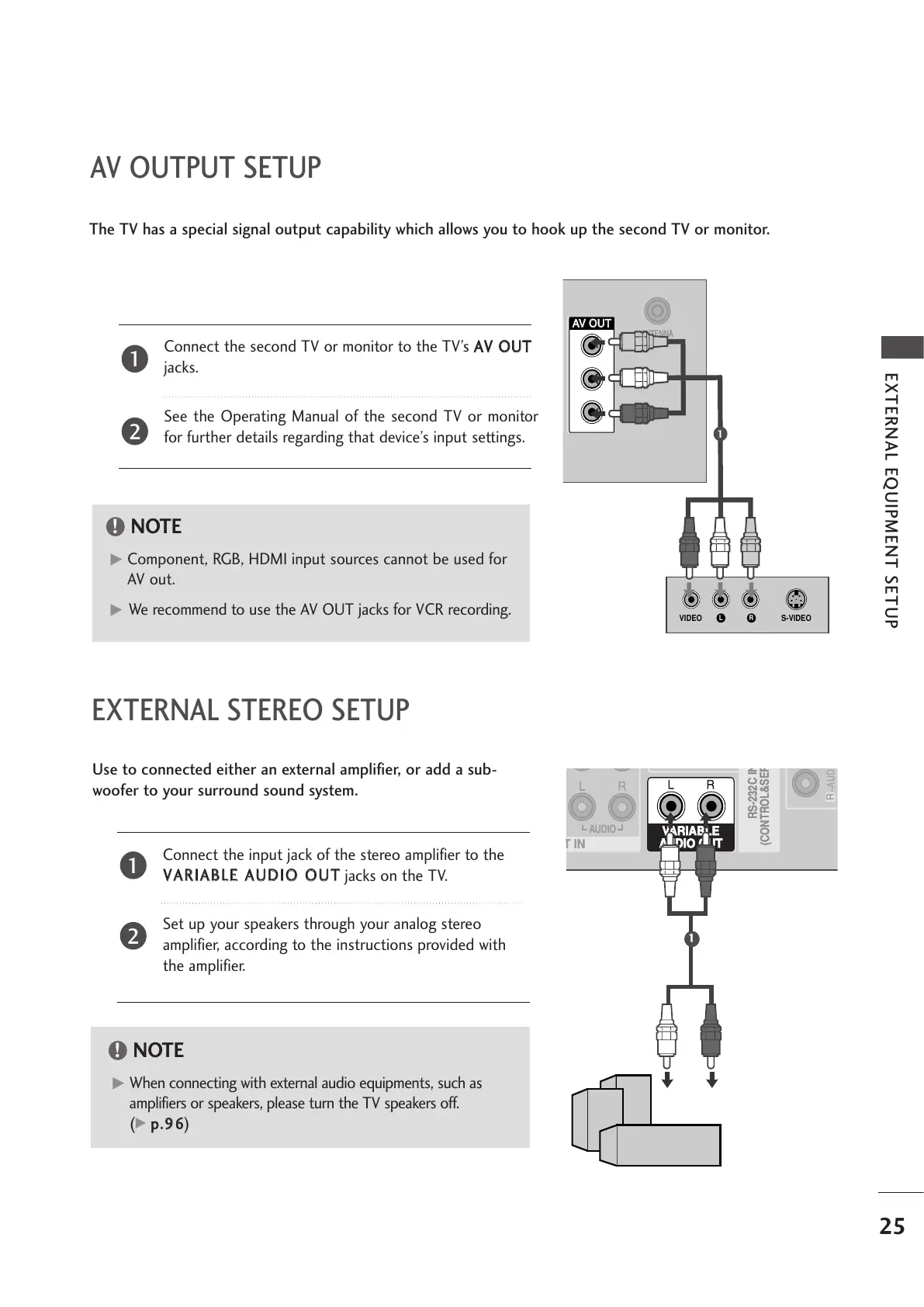

EXTERNAL EQUIPMENT SETUP
25
AV OUTPUT SETUP
EXTERNAL STEREO SETUP
AV OUT
VARIABLE
AUDIO OUT
VARIABLE
AUDIO OUT
T INT IN
AUDIO
RS-232C IN
(CONTROL&SER
RS-232C IN
(CONTROL&SER
R
AUDI
VARIABLE
AUDIO OUT
GG
When connecting with external audio equipments, such as
amplifiers or speakers, please turn the TV speakers off.
(
GG
pp..9966
)
NOTE
!
Use to connected either an external amplifier, or add a sub-
woofer to your surround sound system.
Connect the input jack of the stereo amplifier to the
VVAARRIIAABBLLEE AAUUDDIIOO OOUUTT
jacks on the TV.
Set up your speakers through your analog stereo
amplifier, according to the instructions provided with
the amplifier.
2
1
11
The TV has a special signal output capability which allows you to hook up the second TV or monitor.
AV OUTAV OUT
ANTENNA
IN
ANTENNA
IN
AV OUTV OUT
VARIABLE
AUDIO OUT
L R
S-VIDEOVIDEO
Connect the second TV or monitor to the TV’s
AAVV OOUUTT
jacks.
See the Operating Manual of the second TV or monitor
for further details regarding that device’s input settings.
GG
Component, RGB, HDMI input sources cannot be used for
AV out.
GG
We recommend to use the AV OUT jacks for VCR recording.
NOTE
!
2
1
1
