PC SETUP
EXTERNAL EQUIPMENT SETUP
HDMI IN HDMI IN HDMI/DVI IN HDMI/DVI IN
1
1
2
2
VARIABLE
AUDIO OUT
VARIABLE
AUDIO OUT
COMPONENT INCOMPONENT IN
AUDIO
VIDEO
AV IN 1AV IN 1 AV OUTAV OUT
ANTENNA
IN
ANTENNA
IN
AUDIO
(RGB/DVI)
RGB(PC)
RGB INRGB IN
RS-232C IN
(CO
NTROL&SERVICE)
RS-232C IN
(CO
NTROL&SERVICE)
L/M
O
NO
R
A
U
D
IO
V
ID
E
O
AUDIO
(RGB/DVI)
RGB(PC)
RGB INRGB IN
RGB OUTPUT
AUDIO
HDMI/DVI IN
1
RGB IN
1
2

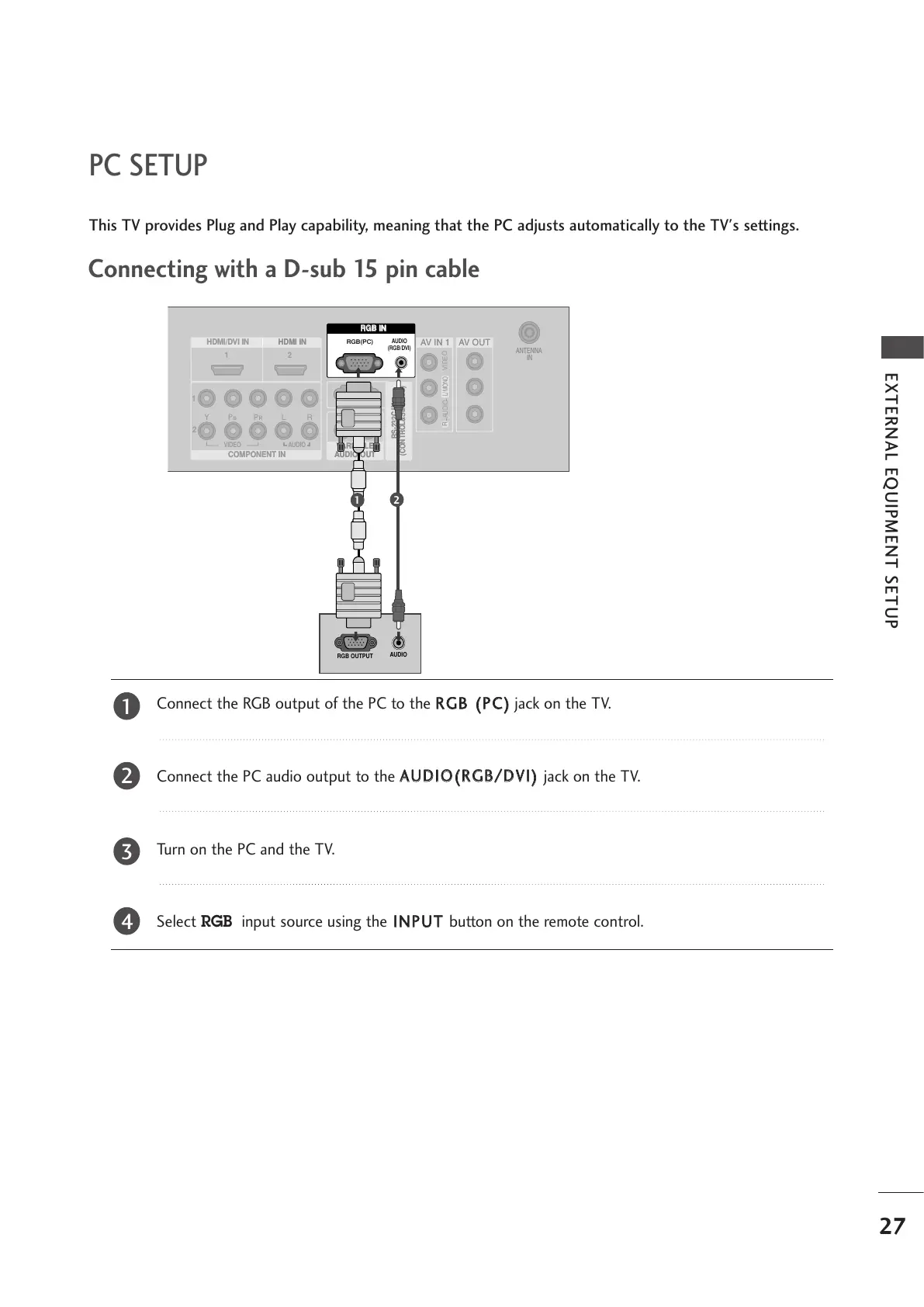

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
Connecting with a D-sub 15 pin cable
Connect the RGB output of the PC to the
RRGGBB ((PPCC))
jack on the TV.
Connect the PC audio output to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the TV.
Turn on the PC and the TV.
Select
RGB input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1
