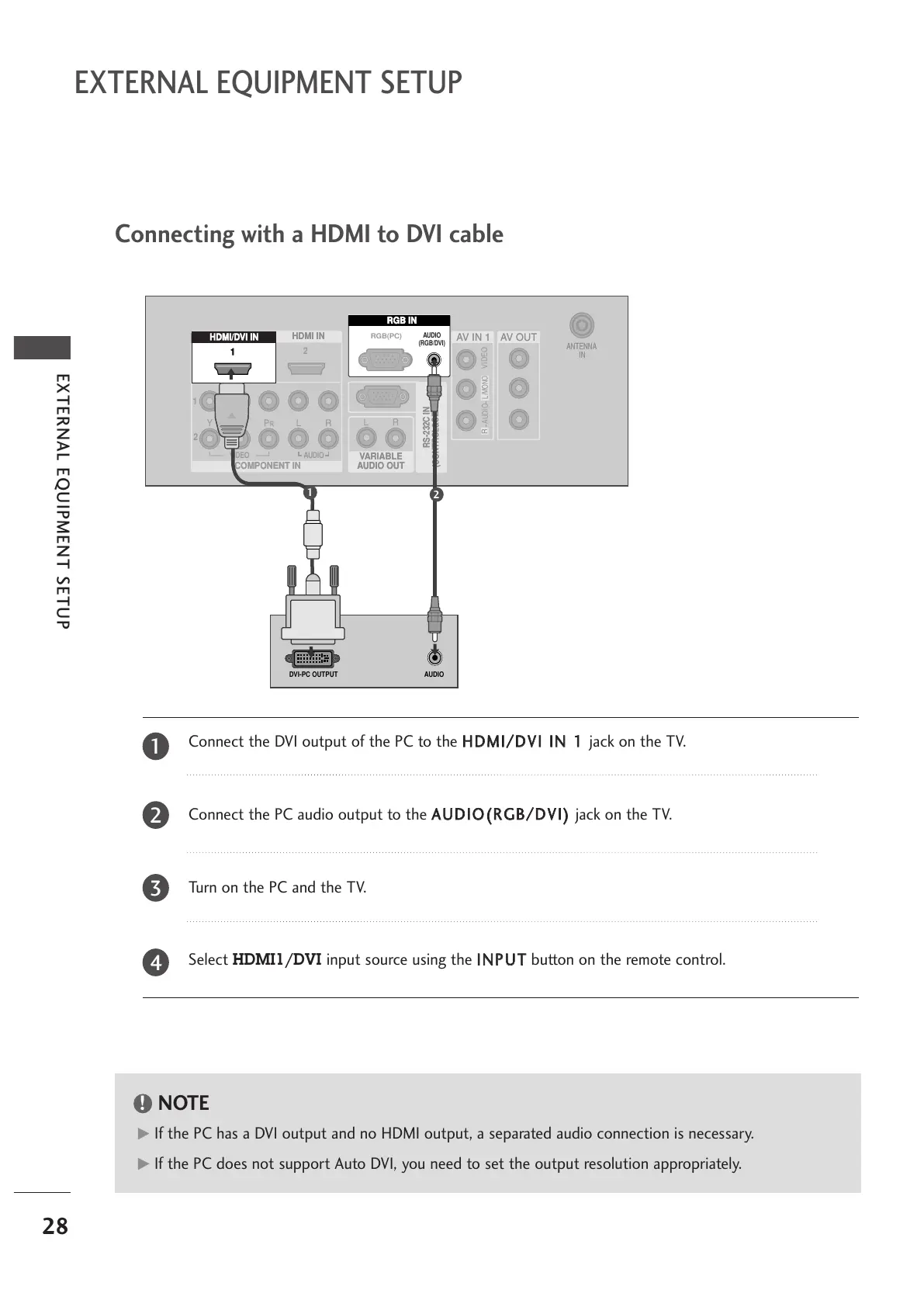

EXTERNAL EQUIPMENT SETUP
28
EXTERNAL EQUIPMENT SETUP
Connecting with a HDMI to DVI cable
RGB IN
HDMI IN HDMI IN HDMI/DVI IN HDMI/DVI IN
1
1
2
2
VARIABLE
AUDIO OUT
VARIABLE
AUDIO OUT
COMPONENT INCOMPONENT IN
AUDIO
VIDEO
AV IN 1AV IN 1 AV OUTAV OUT
ANTENNA
IN
ANTENNA
IN
AUDIO
(RGB/DVI)
RGB(PC)
RGB INRGB IN
RS-232C IN
(CO
NTRO
L&SERVICE)
RS-232C IN
(CO
NTRO
L&SERVICE)
L/MONO
R
AUDIO
VIDEO
RGB(PC)
HDMI/DVI IN
1
AUDIO
(RGB/DVI)
RGB IN
DVI-PC OUTPUT
AUDIO
1
2
Connect the DVI output of the PC to the
HHDDMMII//DDVVII IINN 11
jack on the TV.
Connect the PC audio output to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the TV.
Turn on the PC and the TV.
Select
HDMI1/DVI input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1
GG
If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately.
NOTE
!
