LG 32LB5R Series User Manual

17
EXTERNAL EQUIPMENT SETUP
HDMI IN HDMI/DVI IN
12
1
2
COMPONENT IN
USB IN
AV IN 2
L/MONO
R
AUDIO
VIDEO
S-VIDEO
HDMI IN HDMI IN HDMI/DVI IN HDMI/DVI IN
1
1
2
2
VARIABLE
AUDIO OUT
VARIABLE
AUDIO OUT
COMPONENT INCOMPONENT IN
AUDIO
VIDEO
AV IN 1AV IN 1 AV OUTAV OUT
ANTENNA
IN
ANTENNA
IN
AUDIO
(RGB/DVI)
RGB(PC)
RGB INRGB IN
RS-232C IN
(CONTROL&SERVICE)
RS-232C IN
(CONTROL&SERVICE)
L/MONO
R
AUDIO
VIDEO
RGB(PC)
HDMI/DVI IN
1
AUDIO
(RGB/DVI)
RGB IN
1
2
Connect the DVI output of the digital set-top box to the
HHDDMMII//DDVVII IINN 11
jack on the TV.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO((RRGGBB//DDVVII))
jack on the TV.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select
HDMI1/DVI input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1

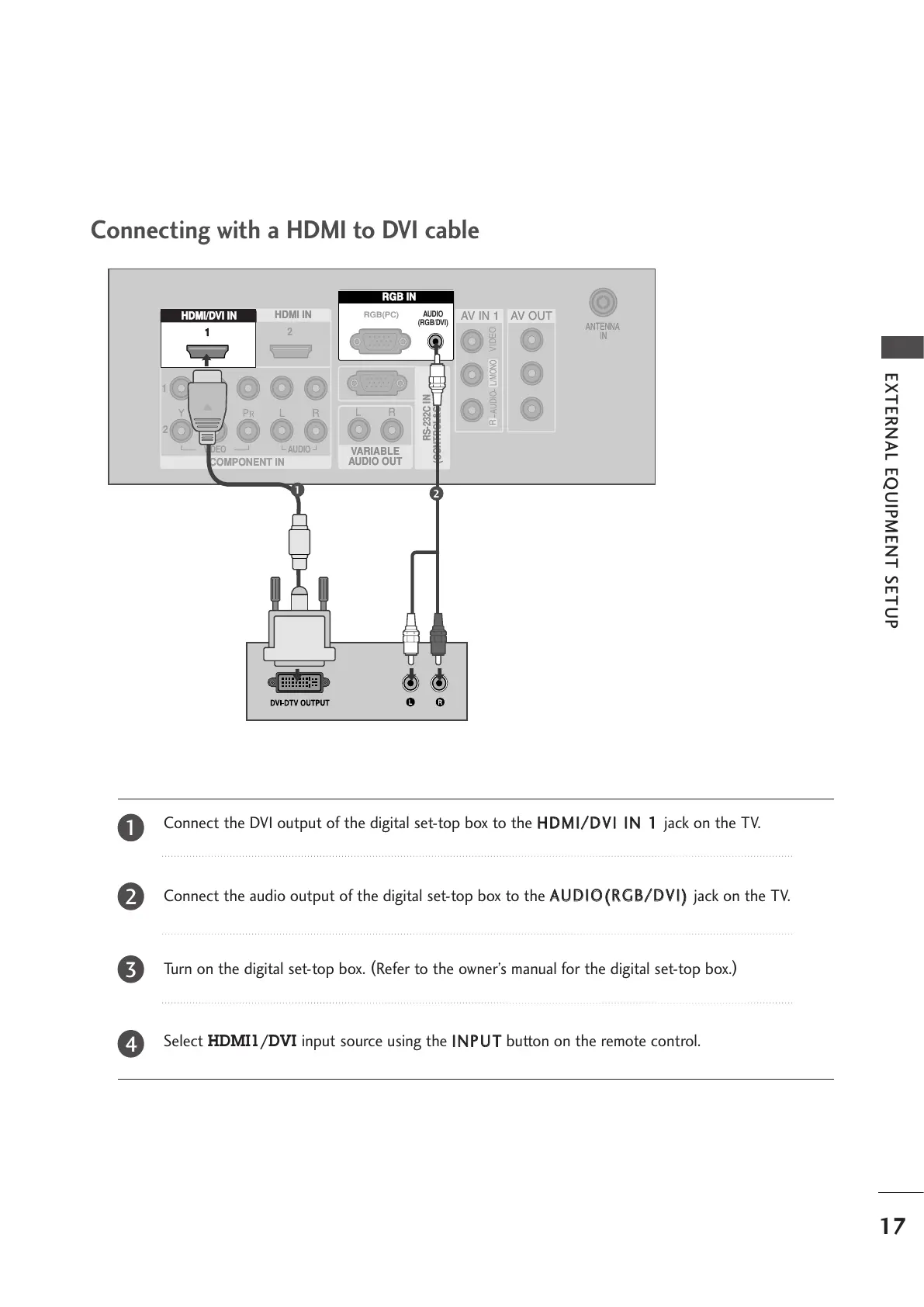

Connecting with a HDMI to DVI cable
