LG 32LX570M Commercial Mode Setup Guide

58
206-4281
Reference: FTG Mode via EBL (Local Conguration)
The following steps outline local FTG configuration of individual
TV EBLs using a direct PC-to-TV (EBL) connection. Refer to the
Free-To-Guest (FTG) Device Configuration Application User
Guide for further information.
FTG Device Conguration Application software is available online
at: www.lg.com/us/commercial/display-solutions/ftg.
Note: If the TV CPU is already in FTG Mode, you cannot use this
procedure to make changes to the FTG Channel Map and FTG
Installer Menu settings. Refer to FTG Mode information on pages
7 to 9 for further details.
Note: If the preceding condition applies, but you wish to switch the
TV to FTG Mode via EBL, see Reference section, “Restoring
Factory Defaults on the TV(s),” for further information before
proceeding.
1. Install (if necessary) and launch the FTG Device Conguration
Application (v5.5.1 or later) on the PC that will be used to
congure the EBL.
2. Build an FTG Channel Map using the FTG Channel Map Editor in
the FTG Channel Map Conguration Utility (or, if applicable, open
an existing FTG Conguration [.rml] le).
Note: Up to 141 logical channels can be dened in the FTG
Channel Map.
3. Connect the PC to the TV-LINK CFG jack on the TV’s rear jack
panel using a USB-to-TTL serial cable (TTL-232R-5V-AJ). If
necessary, install the device driver on the PC.
4. Turn ON the TV.
Note: If Installer Menu item 118 POWER SAVINGS is set to 3
(default), the TV must be ON in order for steps 5 and 6 below to
be successful.
5. “Write” the FTG Channel Map to the EBL (switches the EBL
from Pass-through Mode to FTG Mode).
Note: After a “Write” of new data, the TV will briey display a
green text banner that shows the EBL rmware version and
release date.
6. “Read” the current FTG Installer Menu settings from the EBL
using the FTG Installer Menu Conguration Utility. If necessary to
make changes to Installer Menu items, “Write” them back to the
EBL in FTG Mode.
7. Save the FTG Channel Map and FTG Installer Menu settings to
an FTG Conguration (.rml) le for future use.
8. Tune the TV to a logical channel in the FTG Channel Map.

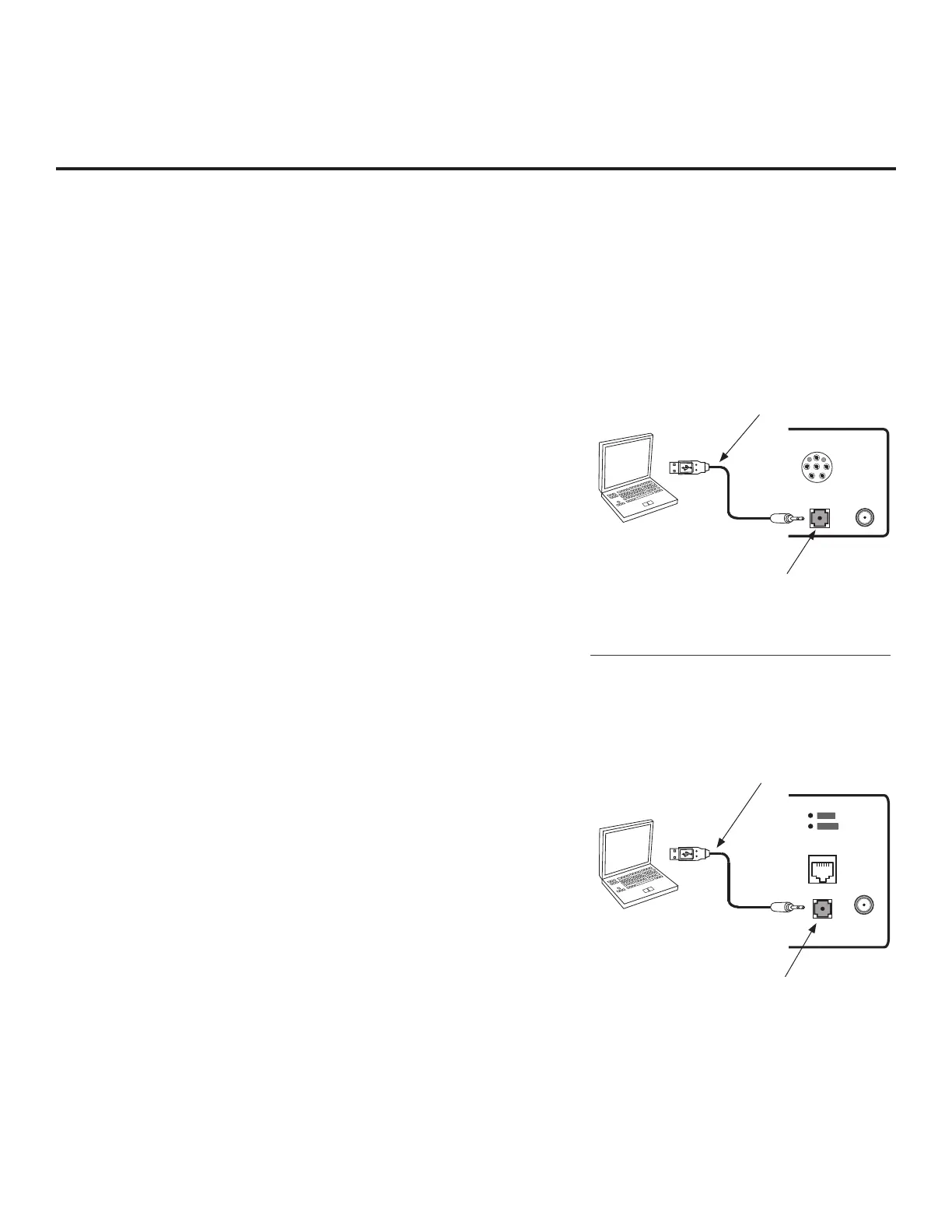

USB-to-TTL Serial Cable
Required for local FTG Mode
via EBL configuration.
Laptop
PC
PILLOW
SPEAKER
ANTENNA/
CABLE IN
TV-LINK
CFG
GAME CONTROL
/ MPI
ANTENNA/
CABLE IN
RESET
UPDATE
TV-LINK CFG
Laptop
PC
22/28LX570M Jack Panel
32/43LX570M Jack Panel
TV-LINK CFG
Use to connect PC to TV (EBL) for local
FTG Mode via EBL configuration.
USB-to-TTL Serial Cable
Required for local FTG Mode
via EBL configuration.
Laptop
PC
PILLOW
SPEAKER
ANTENNA/
CABLE IN
TV-LINK
CFG
GAME CONTROL
/ MPI
ANTENNA/
CABLE IN
RESET
UPDATE
TV-LINK CFG
Laptop
PC
TV-LINK CFG
Use to connect PC to TV (EBL) for
local FTG Mode via EBL configuration.

LG 32LX570M Specifications

General

Screen shape	Flat
Response time	9 ms
Display diagonal	31.8 \
Display brightness	- cd/m²
Display technology	LED
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1200:1
Display diagonal (metric)	81.28 cm
Screen format adjustments	4:3, 16:9
Supported graphics resolutions	1366 x 768
Motion interpolation technology	-
3D	No
Cable lock slot type	Kensington
RJ-12 ports quantity	1
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
Smart modes	Cinema, Energy saving, Game, Sports, Standard, Vivid
Sound modes	Game, Movie, Music, News, Sports, Standard
Audio decoders	Dolby Digital
RMS rated power	10 W
Number of speakers	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Audio formats supported	AAC, AC3, EAC3, MP3, PCM
Image formats supported	JPG
Picture processing technology	LG Triple XD Engine
Panel mounting interface	200 x 200 mm
AC input voltage	120 V
Power consumption (standby)	0.5 W
Power consumption (typical)	42 W
Package depth	114.3 mm
Package width	800.1 mm
Package height	510.54 mm
Package weight	6622.45 g
Certification	UL, FCC, cUL, NOM
Sustainability certificates	RoHS, ENERGY STAR
Cables included	AC

Weight and Dimensions

Depth (without stand)	55.88 mm
Width (without stand)	734.06 mm
Height (without stand)	436.88 mm
Weight (without stand)	5307.03 g
