LG 32LX570M - 32;43 LX570 M Rear and Side Jack Panels

67
206-4281
..........
USB IN
IN 2
AV IN
..........
USB IN
IN 2
PILLOW SPEAKER
SPEAKER OUT
LINE OUT
VIDEO
L/MONO-AUDIO-R
AV IN/AUDIO IN
L R
SERVICE ONLY
OPTICAL
AUDIO OUT
IN
1
GAME CONTROL
/ MPI
ANTENNA/
CABLE IN
RESET
UPDATE
TV-LINK CFG
UPDATE
Restricted to software updates.
RESET
Initiates a hardware reset and turns the TV OFF.
GAME CONTROL/MPI
When the TV/EBL is in Pass-through Mode, the
MPI function enables an external MPI control
device (i.e., VOD/PPV STB, etc.) to control the TV.
Game Control—EBL in SONIFI PPV Mode only.
AV IN/AUDIO IN
Connect to composite audio/
video output from external device.
SPEAKER OUT / LINE OUT
( 3.5 mm jack) Connect external audio (xed speaker,
variable speaker, or xed line level [amplier])
equipment. See Reference section, “External Stereo
Speaker Specifications,” for further information.
HDMI IN 1
Connection for HDMI output from
external device.
ANTENNA/CABLE IN
Connect to Antenna/
CATV.
SERVICE ONLY
Restricted to service updates.
TV-LINK CFG
( 3.5 mm jack) Use to connect PC to TV (EBL)
for local FTG Mode via EBL configuration.

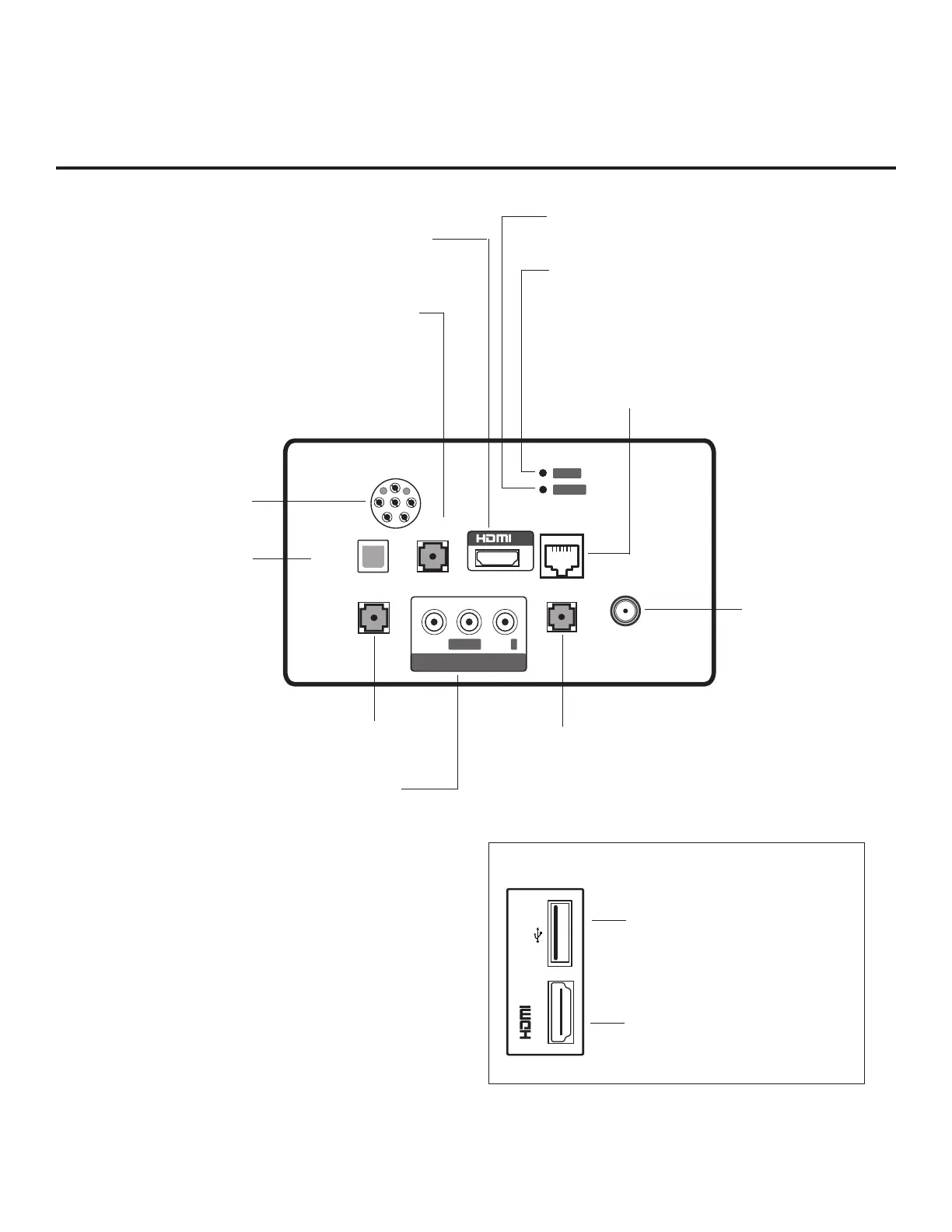

Reference: 32/43LX570M Rear and Side Jack Panels
OPTICAL AUDIO OUT
Use for amps and home
theater systems.
Note: When the TV is OFF,
this port is not enabled.
Side Jack Panel
HDMI IN 2
Connection for HDMI output
from external device.
USB IN
Insert USB memory device
for software updates, cloning
purposes, FTG Mode via CPU
configuration, picture/music
entertainment, etc., as applicable.
PILLOW SPEAKER
Connect pillow speaker here.
