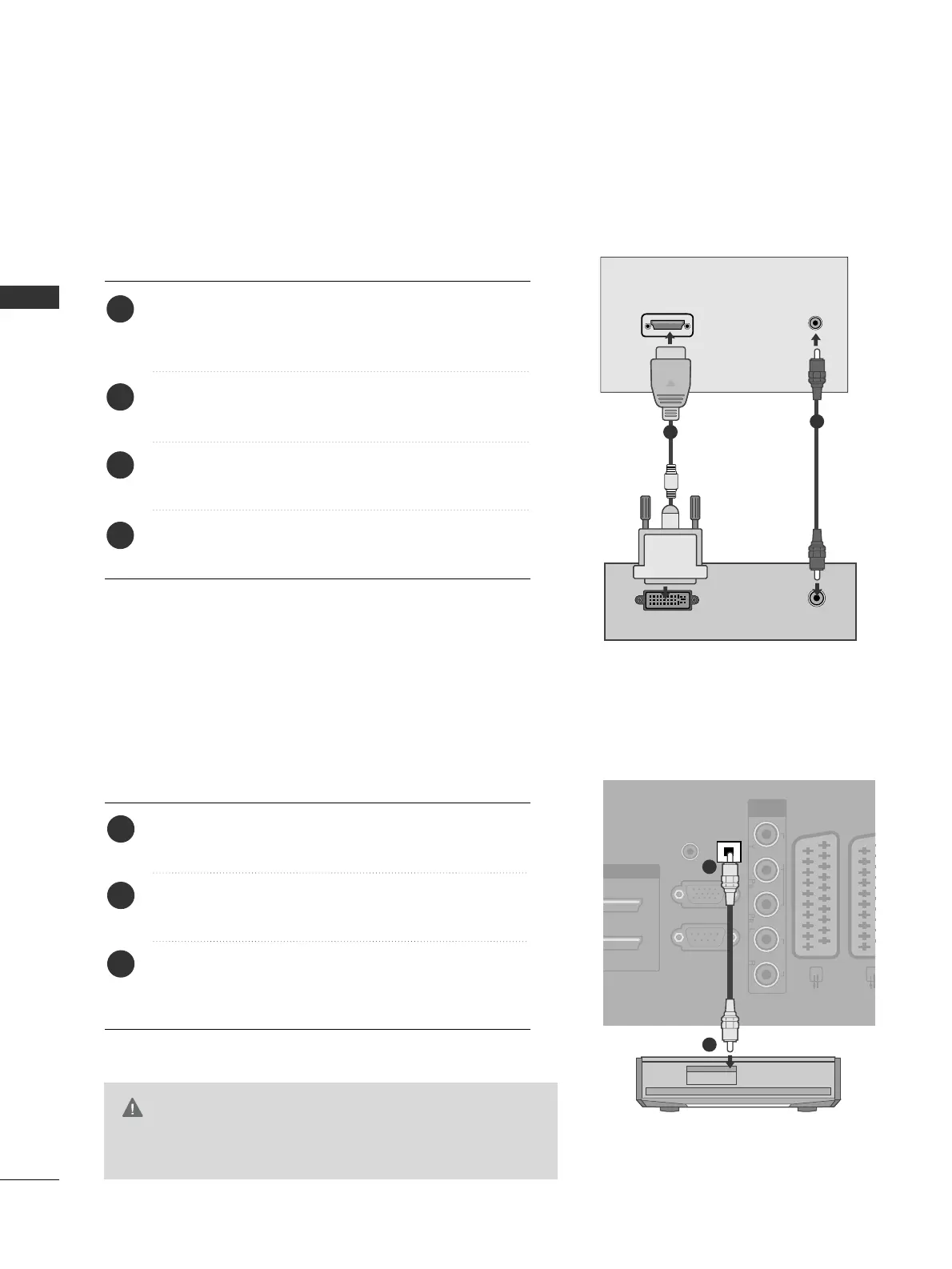

EXTERNAL EQIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
Connect the digital set-top box to
HHDDMMII//DDVVII IINN
,
HHDDMMII//DDVVII IINN 11((DDVVII))
or
HHDDMMII//DDVVII IINN 11
jack on
the TV.
Connect the audio output of the digital set-top box to
the
AAUUDDIIOO IINN ((RRGGBB//DDVVII))
jack on the TV.
Turn on the digital set-top box.
(
Refer to the owner’s
manual for the digital set-top box.
)
Select HDMI/DVI or HDMI 1 input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1
Connecting with a HDMI to DVI cable
DVI-PC OUTPUT
AUDIO
HDMI/DVI IN
AUDIO IN
(RGB/DVI)
1
2
DIGITAL AUDIO OUT SETUP
(Except for 19/22LS4D
*
)
- Sending the TV’s audio signal to external audio equipment via
the Digital Audio Output (Optical) port.
G
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
RGB IN (PC)
OPTICAL
DIGITAL
AUDIO OUT
AV 1 AV
RS-232C IN
(CONTROL & SERVICE)
AUDIO IN
(RGB/DVI)
DVI IN
COMPONENT
IN
VIDEO AUDIO
Connect one end of an optical cable to the TV Digital
Audio
(
Optical
)
Output port.
Connect the other end of the optical cable to the
digital audio
(
optical
)
input on the audio equipment.
Set the “ TV Speaker option - Off ” in the AUDIO
menu. (
G
pp..8800
) Refer to the external audio equipment
instruction manual for operation.
2
3
1
1
2
