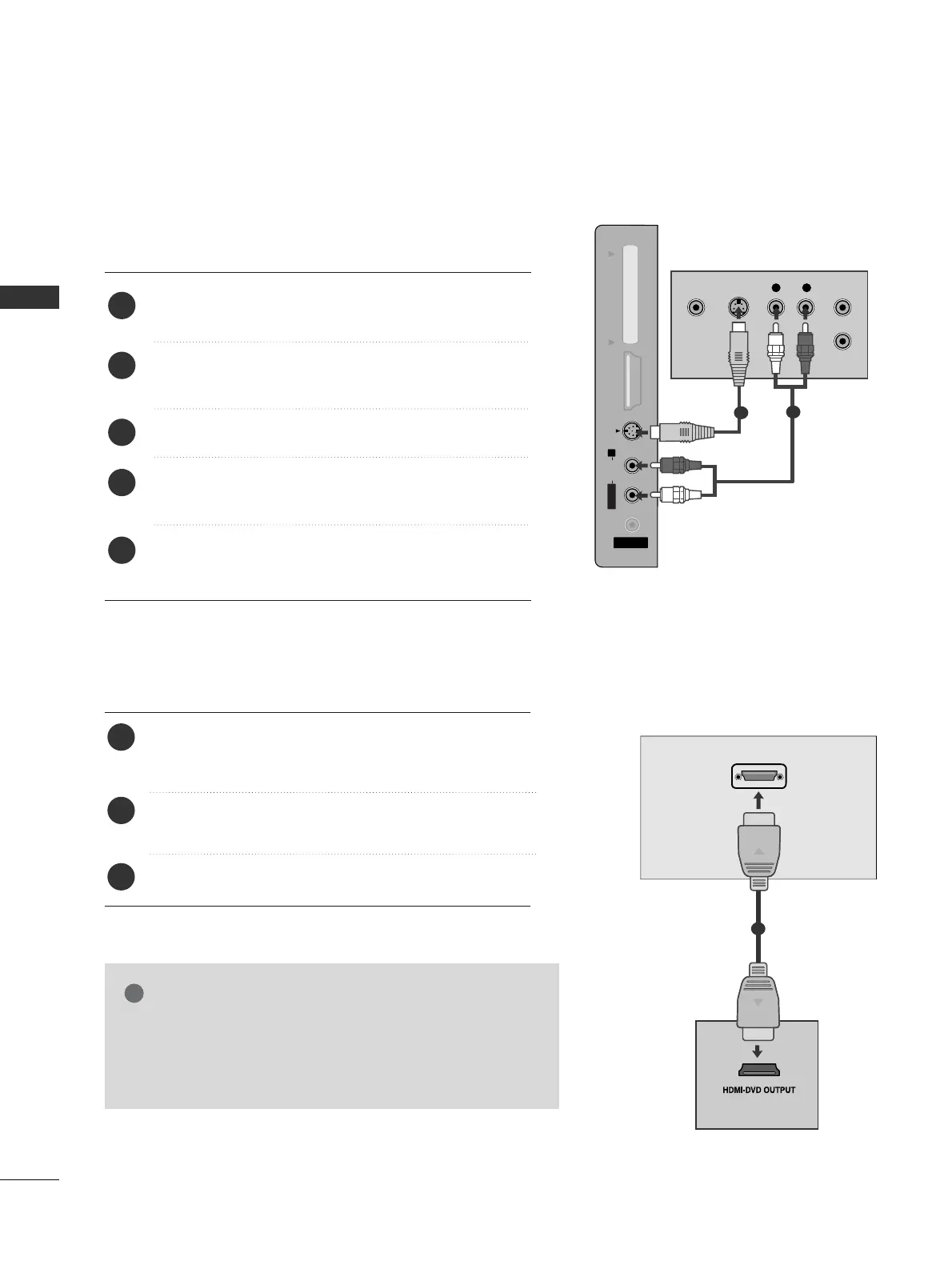

EXTERNAL EQIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
HDMI/DVI IN
AV 1 AV 2
Connecting the HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII//DDVVII IINN
,
HHDDMMII//DDVVII IINN 11
,
HHDDMMII IINN 22
or
HHDDMMII IINN 33
jack on the TV.
Select HDMI/DVI,
HHDDMMII11
,
HHDDMMII22
or
HHDDMMII33
input
source using the
IINNPPUUTT
button on the remote control.
Refer to the DVD player's manual for operating instructions.
2
3
1
1
GG
The TV can receive video and audio signals simultaneously
when using a HDMI cable.
GG
If the DVD does not support Auto HDMI, you must set the
output resolution appropriately.
NOTE
!
Connecting with a S-Video cable (Except for
19/22LS4D
*
, 32/37/42LG20
**
, 32/42LG32
**
, 42/50PG10
**
)
AV IN 3
L/MONO
R
AUDIOAUDIO
HDMI IN 3HDMI IN 3 PCMCIA CARD SLOT PCMCIA CARD SLOT
VIDEOVIDEO
S-VIDEO
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
Connect the S-VIDEO output of the DVD to the
SS--VVIIDDEEOO
input on the TV.
Connect the audio outputs of the DVD to the
AAUUDDIIOO
input jacks on the TV.
Turn on the DVD player, insert a DVD.
Select
AV 3 input source using the INPUT button on
the remote control.
Refer to the DVD player's manual for operating
instructions.
2
3
4
5
1
1
2
