Image shown may differ from your TV.
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems,
USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to
the manual provided with each device.
Connecting to an Antenna or Cable

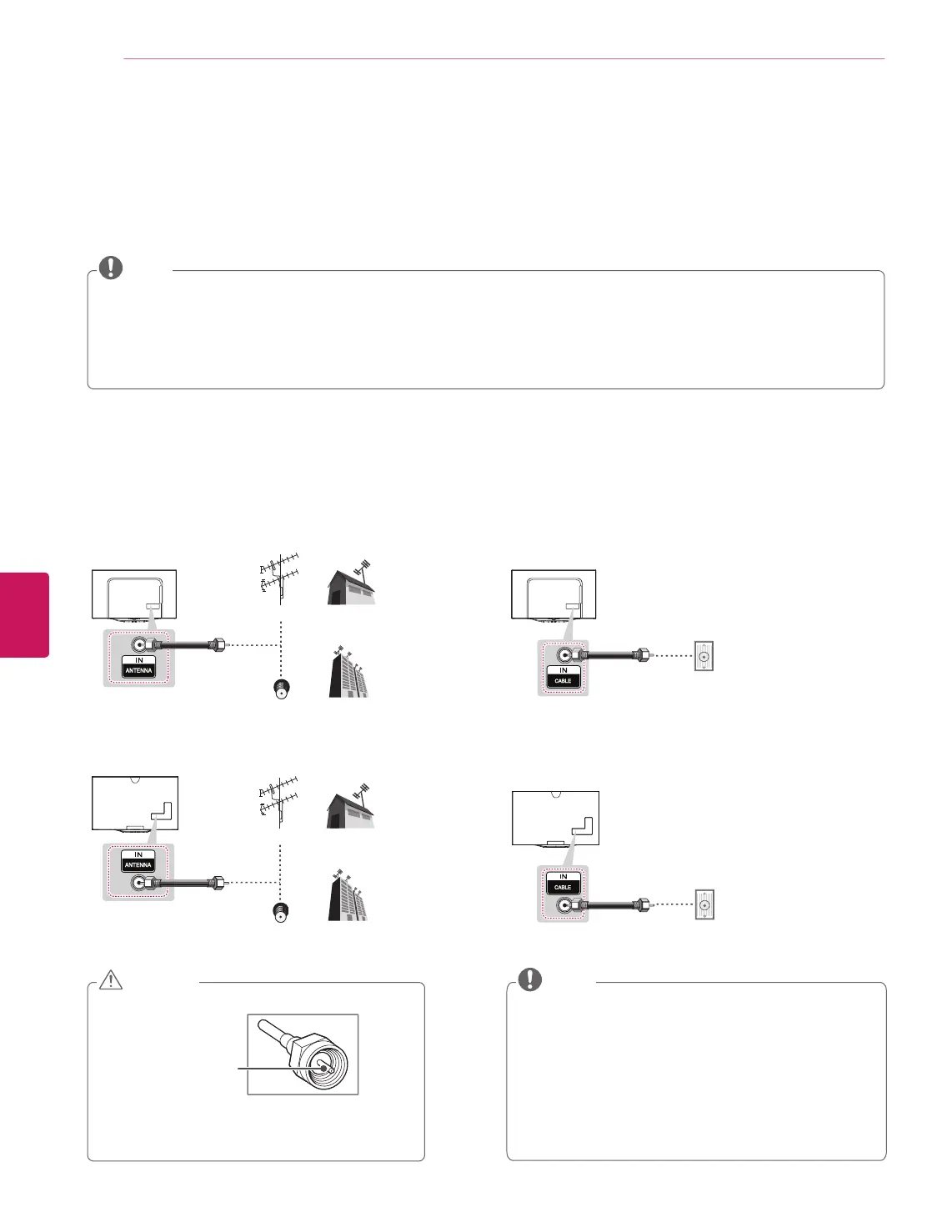

Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations may differ from the actual items.
An RF cable is optional.
Make sure not to bend the copper wire of the RF
cable.
Copper wire
Complete all connections between devices, and
then connect the power cord to the power outlet to
prevent damage to your TV.
CAUTION
If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD
recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
The external device connections shown may differ slightly from illustrations in this manual.
Connect external devices to the TV regardless of the order of the TV port.
If you connect a gaming device to the TV, use the cable supplied with the gaming device.
Refer to the external equipment’s manual for operating instructions.
NOTE
To improve the picture quality in a poor signal area, please
purchase a signal amplifier and install properly.
Use a signal splitter to use 2 TVs or more.
If the antenna is not installed properly, contact your dealer
for assistance.
DTV Audio Supported Codec: MPEG, Dolby digital, AAC,
HE-AAC.
This TV cannot receive ULTRA HD (3840 x 2160 pixels)
broadcasts directly because the related standards have not
been confirmed. (For 77EG970T)
NOTE
(*Not Provided)
Coaxial (75Ω)
Antenna
VHF Antenna
UHF Antenna
Terminal
or
Wall
Jack
(*Not Provided)
Coaxial (75Ω)
(For 55EC930T)
(*Not Provided)
Coaxial (75Ω)
Antenna
Terminal
or
Wall
Jack
(*Not Provided)
Coaxial (75Ω)
(For 77EG970T)
VHF Antenna
UHF Antenna
