LG 55UB820T User Manual

25
ENGENGLISH

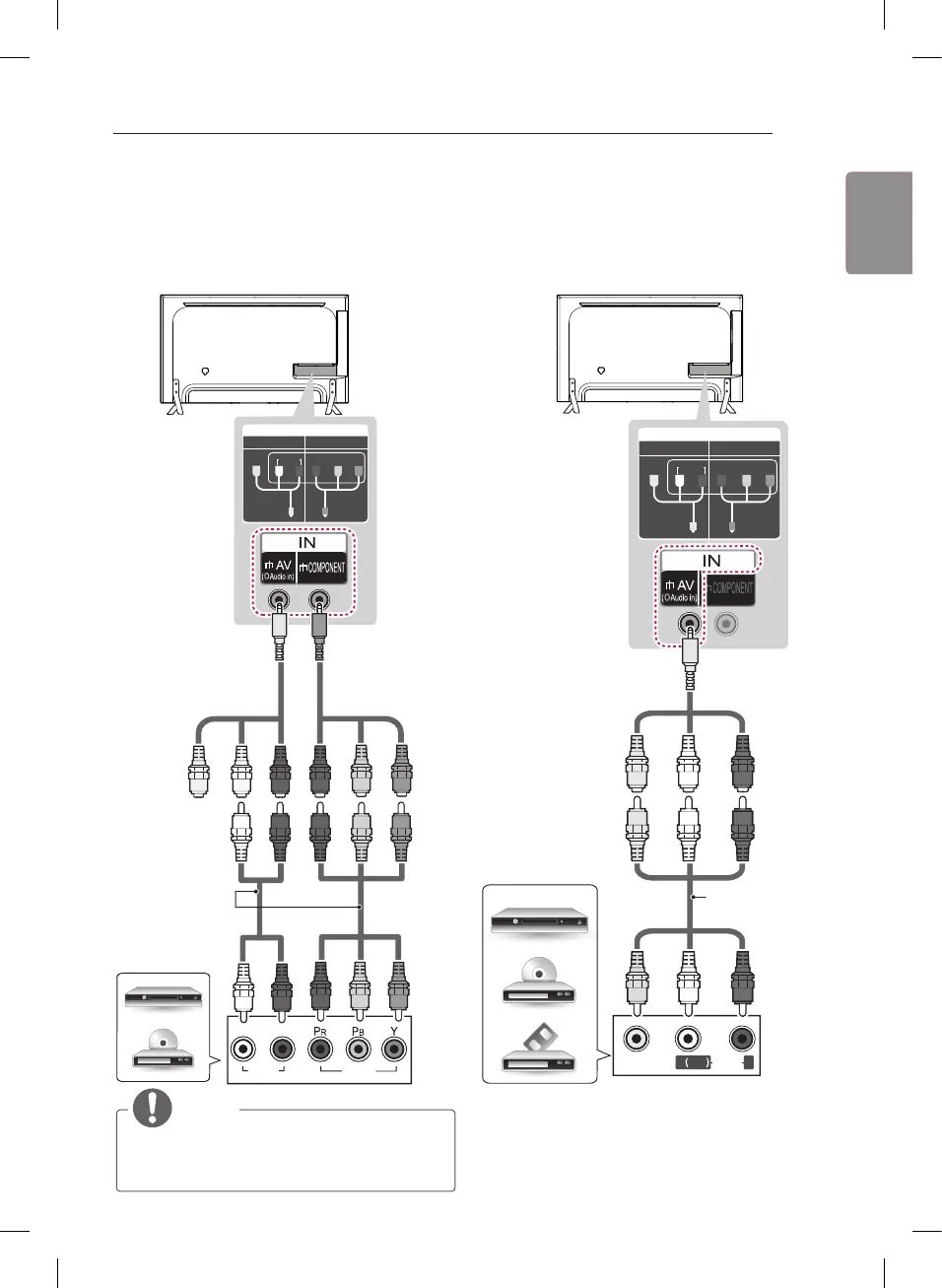

MAKING CONNECTIONS
Component connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown.
VIDEO
AUDIO
L R
IN
COMPONENT
YP
B AUDIO
AV
P
R VIDEO
NOTE
y
If cables are not installed correctly, it could
cause this image to display in black and
white or with distorted colours.
BLUE
GREEN
RED RED
WHITE
DVD / Blu-Ray /
HD Cable Box
RED
RED
BLUE
BLUE
GREEN GREEN RED RED WHITE WHITE YELLOW
(Use the composite
gender cable
provided.)
GREENYELLOW
(Use the component
gender cable provided.)
(*Not Provided)
Composite connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with the composite
cable as shown.
VIDEO
MONO
( )
AUDIO
L R
COMPONENT
PB
Y
IN
COMPONENT
YP
B AUDIO
AV
P
R VIDEO
VCR / DVD / Blu-Ray /
HD Cable Box
RED RED RED
WHITE
WHITE WHITE
YELLOW
YELLOW
YELLOW
(Use the composite
gender cable provided.)
YELLOW
(*Not Provided)
