LG 65UB930T Service Manual

- 20 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

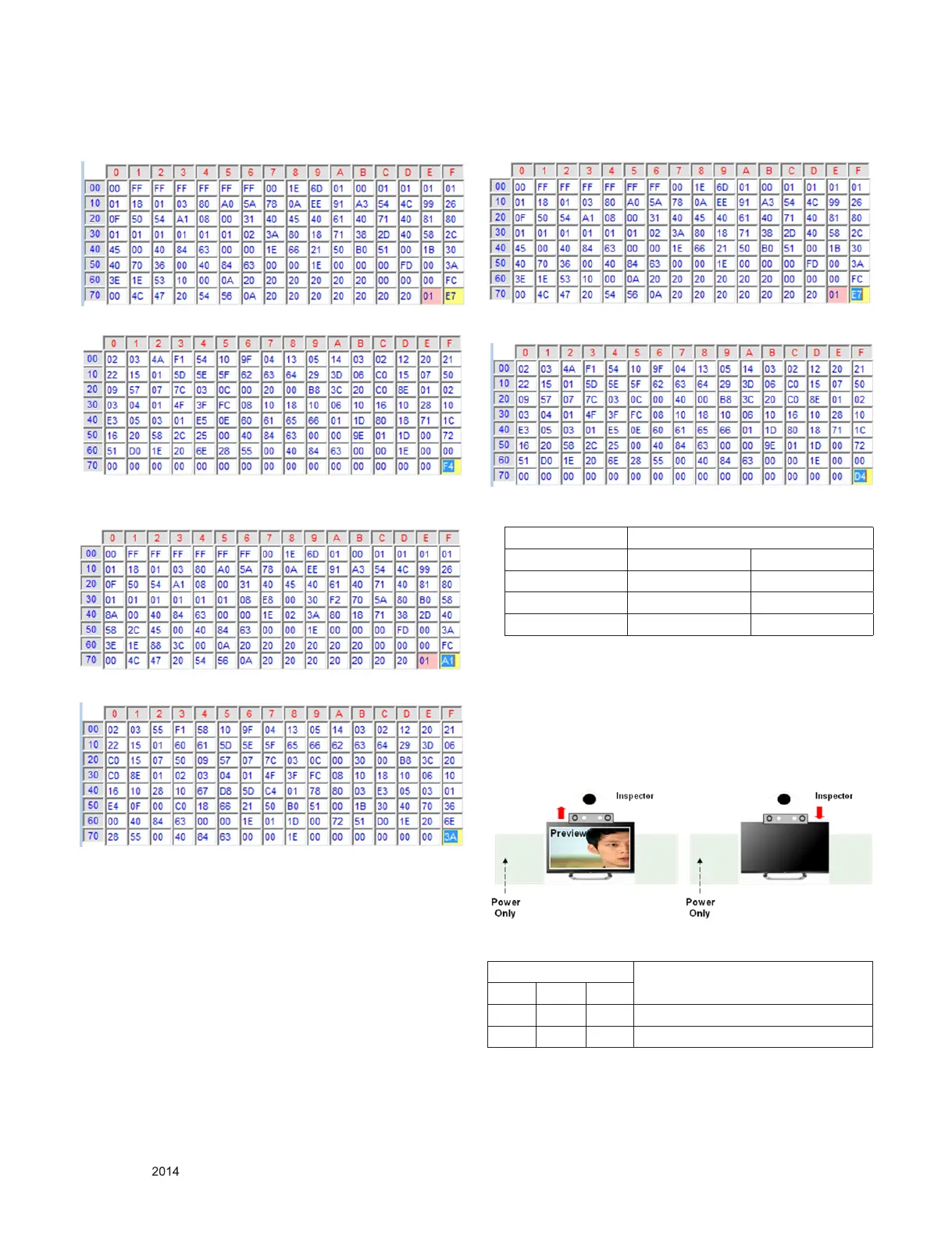

# HDMI2 (C/S: 0xE7, 0xF4)
EDID Block 0, Bytes 0-127
EDID Block 1, Bytes 128-255
# HDMI3 (C/S: 0xA1, 0x3A)
EDID Block 0, Bytes 0-127
EDID Block 1, Bytes 128-255
# HDMI4 (C/S: 0xE7, 0xD4)
EDID Block 0, Bytes 0-127
EDID Block 1, Bytes 128-255
* Checksum (HDMI 1/2/3/4)
Input FFh (Checksum)
HDMI1 E7 04
HDMI2 E7 F4
HDMI3 A1 3A
HDMI4 E7 D4
5.3. Camera Port Inspection(For UB98, UC9)
(1) Objective : To check how it connects between Camera and
PCBA normally, and their Function
(2) Test Method : This Inspection is available only Power-Only
Status.
i) Push Camera Up
ii) Camera’s Preview picture appears on TV Set
iii) Push Camera Down
(3) RS-232C Command
RS-232C COMMAND
Explanation
CMD DATA ID
Ai 00 23 Camera Function Start.
Ai 00 24 Camera Function End.
