LG 65UB930T Service Manual

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
JK5100-*1
TLA-6T764
LAN_TDK
1
R1
2
R2
3
R3
4
R4
5
R5
6
R6
7
R7
8
R8
12
SHIELD
9
R9
11
R11
10
R10[GND]
D1
YL_C
D2
YL_A
D3
GN_C
D4
GN_A
VA5101
5.5V
VA5100
5.5V
R5100
0
C5102
0.1uF
16V
C5101
0.01uF
50V
LAN_JACK_POWER
EPHY_RDP
VA5103
5.5V
EPHY_TDN
JK5100
BS-R570098
LAN_UDE
1
P1[CT]
2
P2[TD+]
3
P3[TD-]
4
P4[RD+]
5
P5[RD-]
6
P6[CT]
7
P7
8
P8
12
SHIELD
9
9
11
P11
10
P10[GND]
D1
YL_C
D2
YL_A
D3
GN_C
D4
GN_A
VA5102
5.5V
C5100
0.1uF
16V
C5103
0.01uF
50V
EPHY_TDP
EPHY_RDN
51
LAN_VERTICAL
2012.12.17

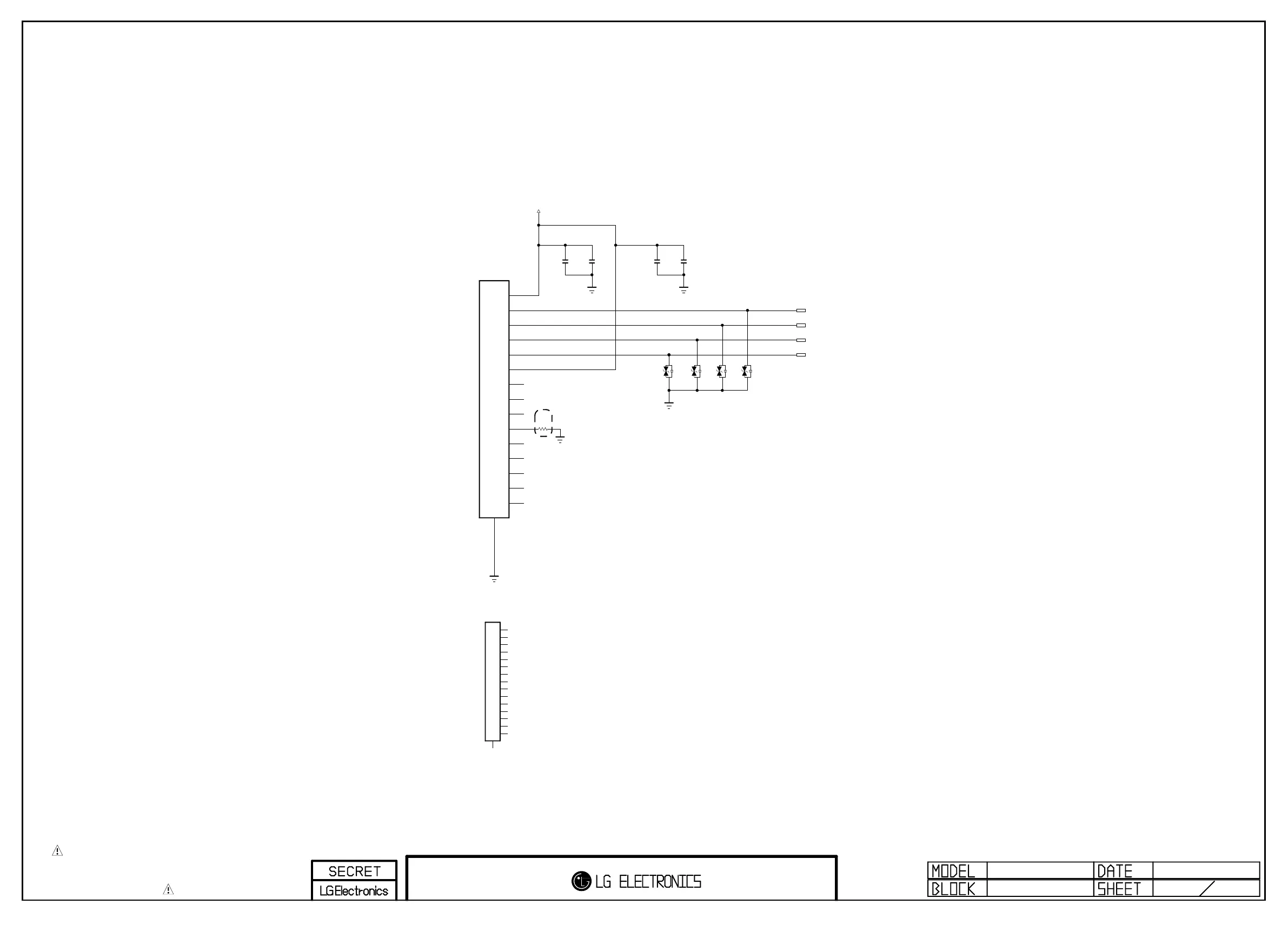

Ethernet Block
EMI
BSD-14Y-UD-051-HD
Copyright ⓒ 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

LG 65UB930T Specifications

General

Brand	LG
Model	65UB930T
Category	LED TV
Language	English
