REFRIGERANT PIPING AND SENSOR DIAGRAM /
OPERATION RANGE AND LIMIT

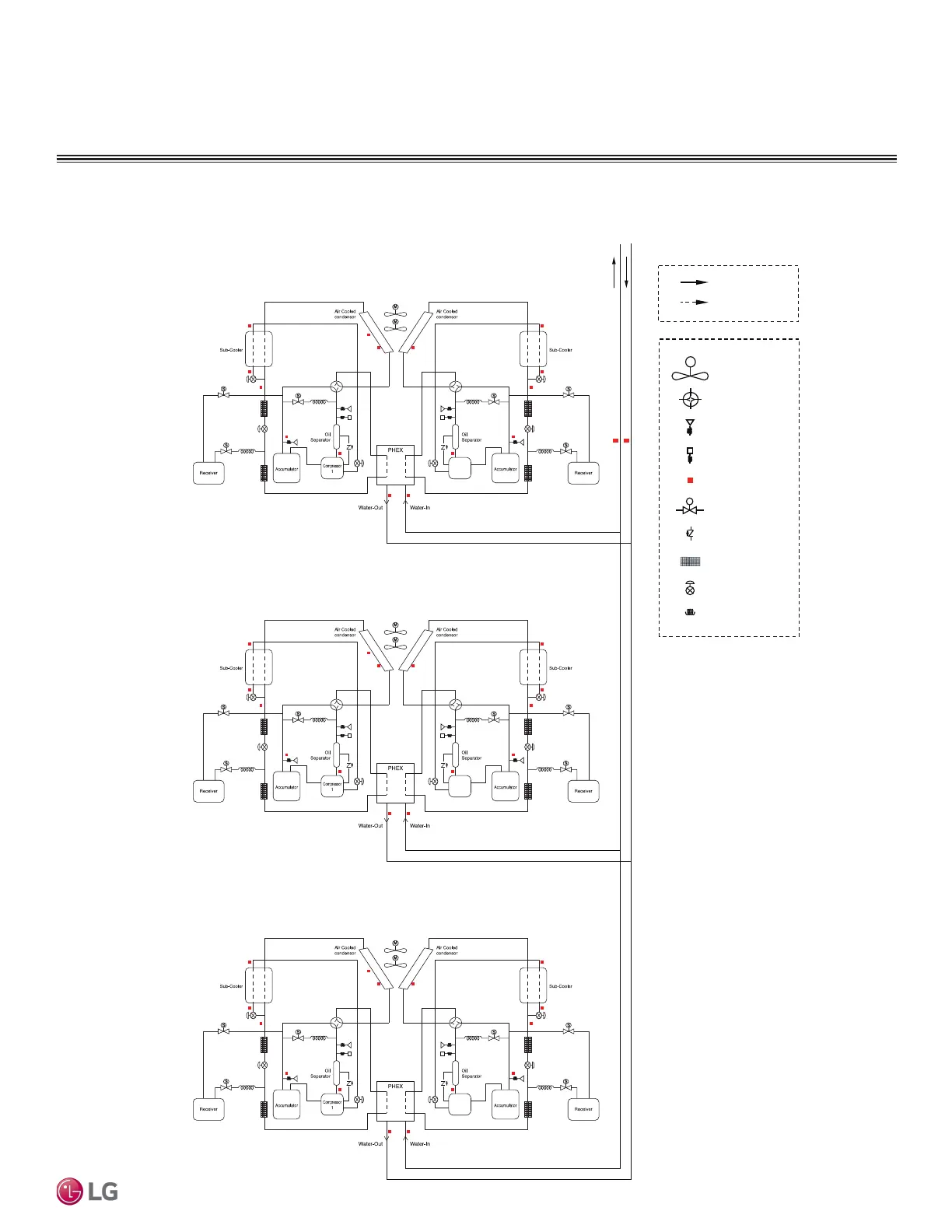

Figure 9: Tri;le Frame Chiller Refrigerant Piping and Sensor Location Diagram.
Refrigerant Piping and Sensor Diagram, Triple Frame
Compressor
2
Compressor
2
Compressor
2
M
S
Cooling
Heating
Fan motor
4 way valve
Pressure sensor
Pressure switch
Solenoid valve
Check valve
Strainer
Electonic expantion
Valve
Expansion valve
Temperature sensor
To Next Page
