Wiring Diagrams

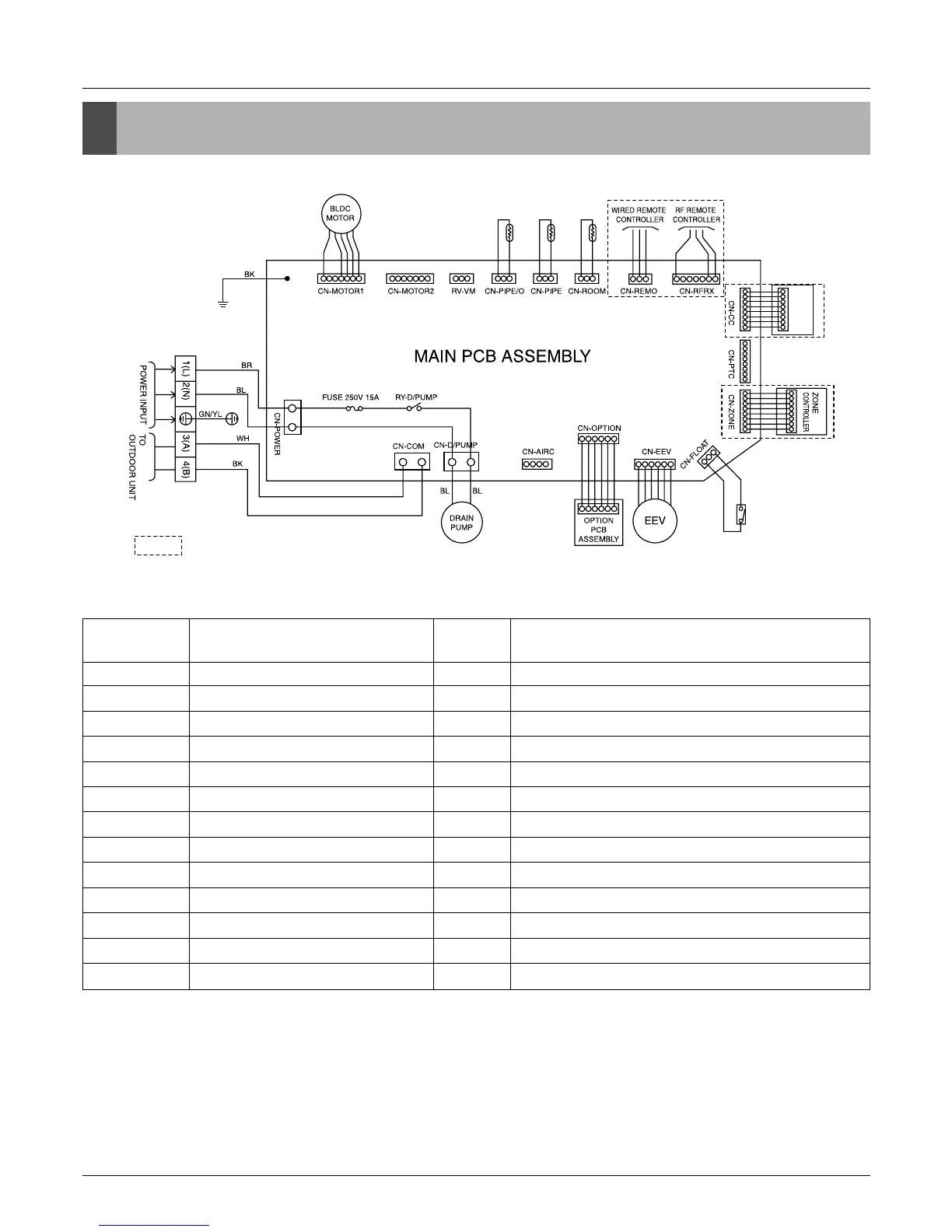

6. Wiring Diagrams
Accessory
DRY
CONTACT
CONNECTOR
SPEC. COLOR DESCRIPTION
NUMBER
CN-MOTOR1 AC FAN MOTOR OUTPUT WHITE MOTOR OUTPUT OF PHASE CONTROL
CN-MOTOR2 AC FAN MOTOR OUTPUT WHITE MOTOR OUTPUT OF PHASE CONTROL
CN-PIPE/O DISCHARGE PIPE THERMISTOR RED DISCHARGE PIPE THERMISTOR
CN-PIPE PIPE SENSOR WHITE PIPE THERMISTOR
CN-ROOM ROOM SENSOR YELLOW ROOM THERMISTOR
CN-REMO REMOTE CONTROLLER GREEN REMOTE CONTROL LINE
CN-FLOAT FLOAT SWITCH INPUT BLUE FLOAT SWITCH SENSING
CN-EEV EEV OUTPUT WHITE EEV CONTROL OUTPUT
CN-D/PUMP DRAIN PUMP OUTPUT WHITE AC OUTPUT FOR DRAIN PUMP
CN-OPTION OPTION PWB. WHITE COMMUNICATION BETWEEN MAIN AND OPTION
CN-COM COMMUNICATION WHITE COMMUNICATION BETWEEN INDOOR AND OUTDOOR
CN-D/PUMP DRAIN PUMP OUTPUT WHITE AC OUTPUT FOR DRAIN PUMP
CN-POWER AC POWER SUPPLY WHITE AC POWER LINE INPUT FOR INDOOR CONTROLLER
