LG ARNU Series - Dimensions

- 90 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Dimensions
4. Dimensions

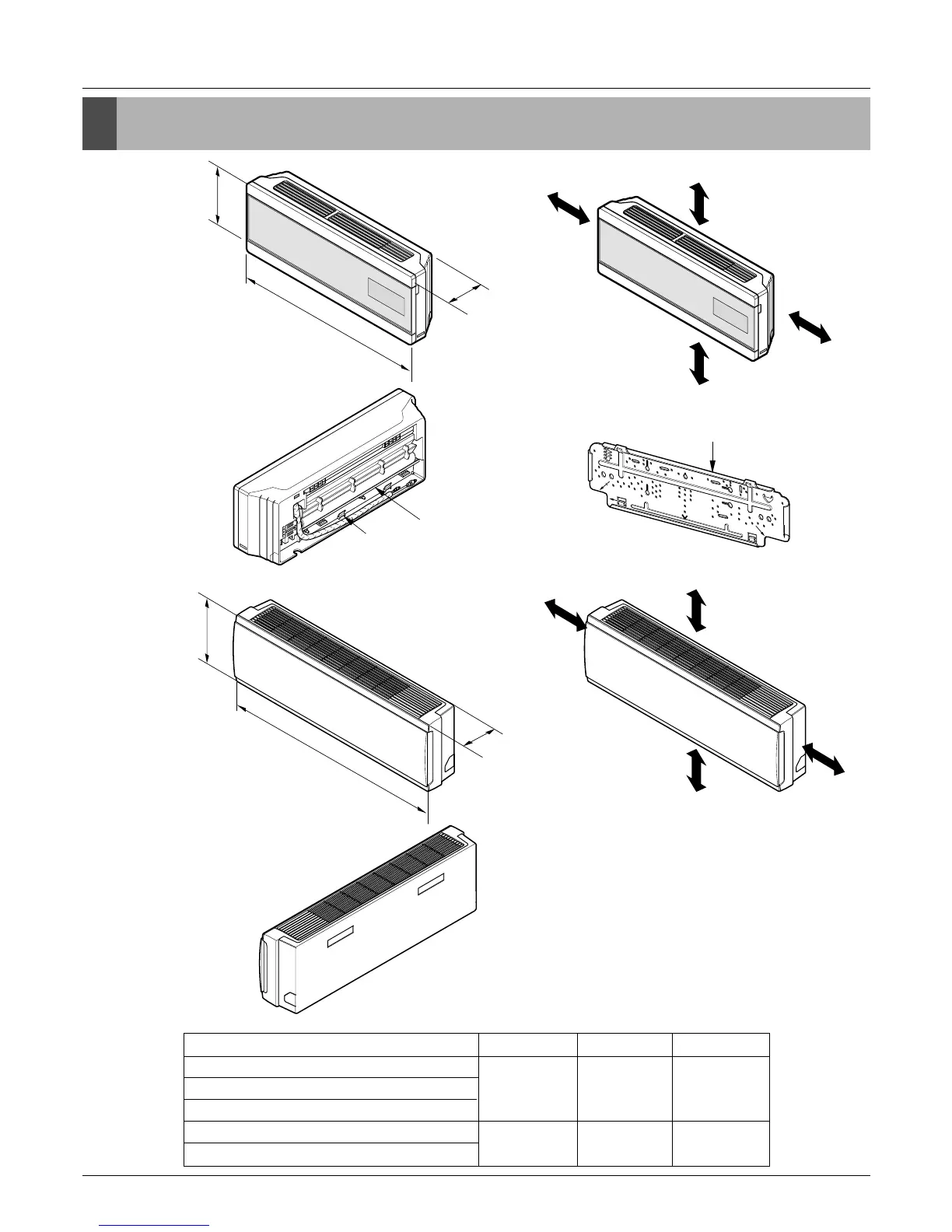

ARNU07GSE*1
ARNU09GSE*1
ARNU12GSE*1
ARNU18GS3*1
ARNU24GS3*1
45 45
4-R7
R208
153
78
52
1030
1030
494
361
970
153
5313
More than 10cm
More than 2.3m
More than 5cm
More than
5cm
Installation plate
D
H
W
Pipe See Note
Drain Hose
H
W
D
More than 10cm
More than 2.3m
More than 5cm
More than
5cm
WHD
Model
ARNU07GSE*1
ARNU09GSE*1
ARNU12GSE*1
ARNU18GS3*1
ARNU24GS3*1
(unit : mm)
915 282 169
1170 315 173
