LG ARNU Series - Dimensions

- 138 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
4. Dimensions

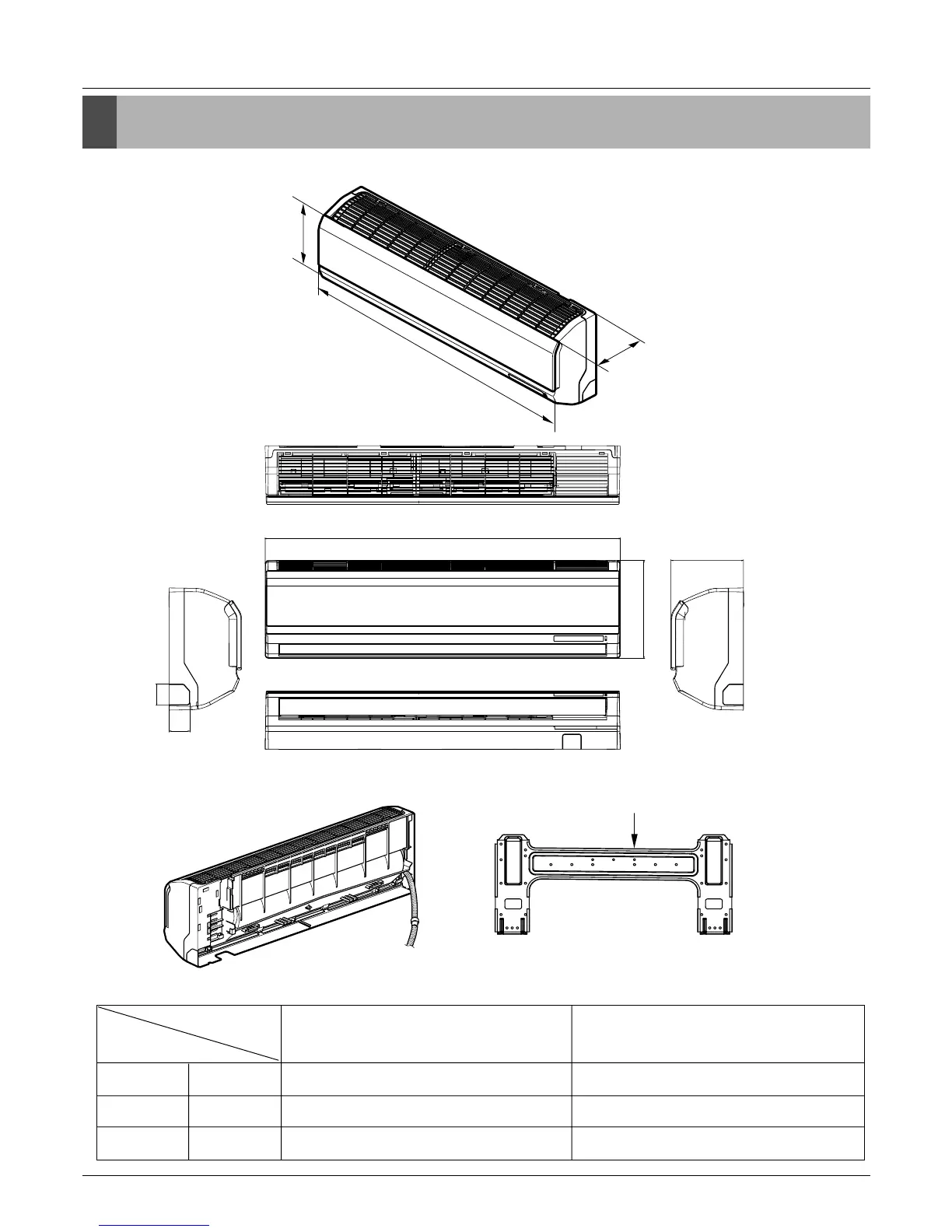

Dimensions
ARNU07GSE*1
ARNU09GSE*1
ARNU12GSE*1
ARNU18GS5*1
ARNU24GS5*1
Installation plate
D
H
W
1090
300
178
52
51
(unit:mm)
W mm 895 1090
H mm 282 300
D mm 165 178
Model
Dimension
SE(7, 9, 12K) S5(18, 24K)
