THE INDOOR UNIT INSTALLATION
23
ENGLISH
THE INDOOR UNIT INSTALLATION

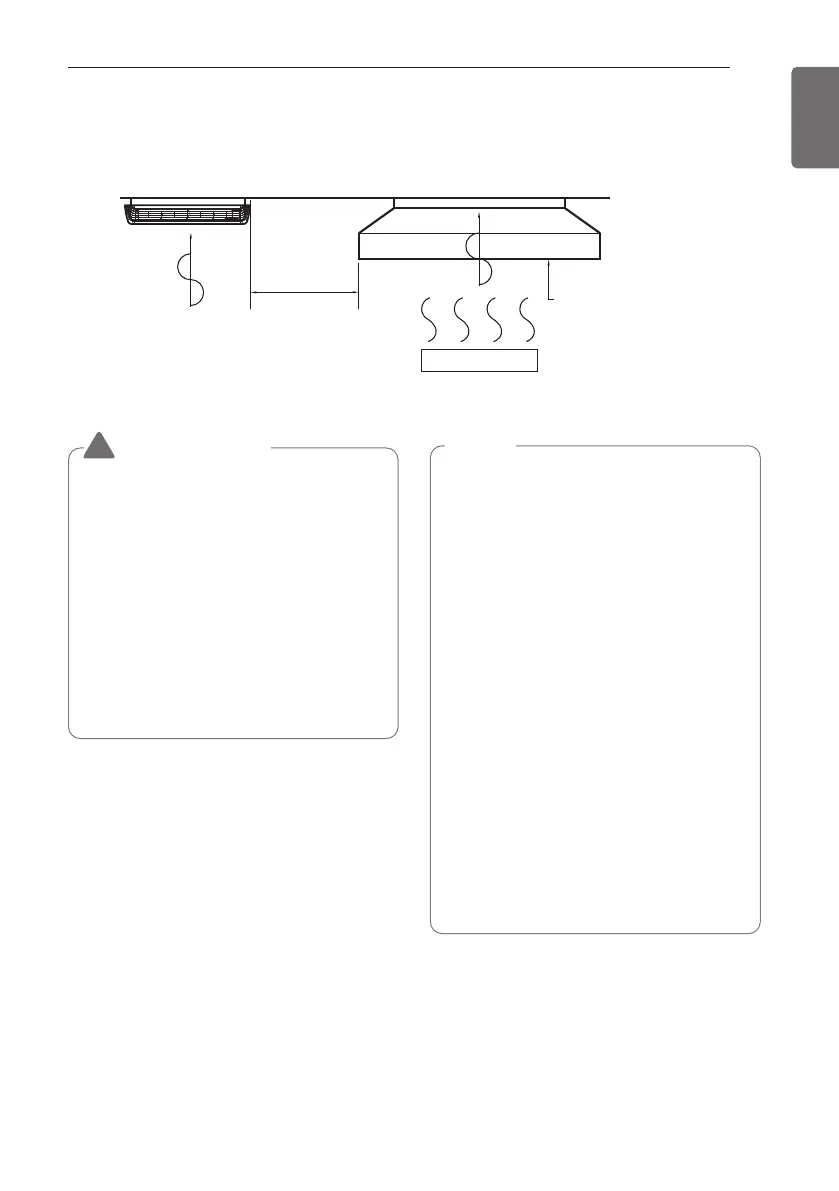

Use the ventilation fan
for smoke-collecting
hood with sufficient
capacity.
Cooking table
Air conditioner
Take enough
distance
Install the unit leaning to a drainage hole side
as a figure for easy water drainage.
NOTE
• Avoid the following installation location.
1. Such places as restaurants and kitchen
where considerable amount of oil
steam and flour is generated.
These may cause heat exchange
efficiency reduction, or water drops,
drain pump mal-function.
In these cases, take the following
actions;
• Make sure that ventilation fan is enough
to cover all noxious gases from this
place.
• Ensure enough distance from the
cooking room to install the air
conditioner in such a place where it may
not suck oily steam.
2. Avoid installing air conditioner in such
places where cooking oil or iron
powder is generated.
3. Avoid places where inflammable gas is
generated.
4. Avoid place where noxious gas is
generated.
5. Avoid places near high frequency
generators.
CAUTION
!
• This air-conditioner uses a drain pump.
• Install the unit horizontally using a level
gauge.
• During the installation, care should be
taken not to damage electric wires.
• Select and mark the position for fixing
bolts and piping hole.
• Decide the position for fixing bolts
slightly tilted to the drain direction after
considering the direction of drain hose.
• Drill the hole for anchor bolt on the
ceiling or wall.
To Next Page
