THE INDOOR UNIT INSTALLATION
41
ENGLISH
Maintenance
drain port
Upward
routing
not allowed
Pipe clamp
Indoor unit
300 mm or less
Piping material: Polyvinyl chloride pipe VP-
25 and pipe fittings
700 or less
1 -1.5 m
Clamp metal(attached) Drain hose(attached)
Drain raising pipe
300 mm or less300 mm or less300 mm or less
Heat insulation material: Polyethylene
foam with thickness more than 8 mm.
Max
450
250
Flexible hose
Be sure to loop
1/50~1/100
Unit : mm
1. Connect the elbow connector to the
product facing upwards.
2. Place the bolt of the clamp joint
upwards to secure the connector.
[Type : Round]

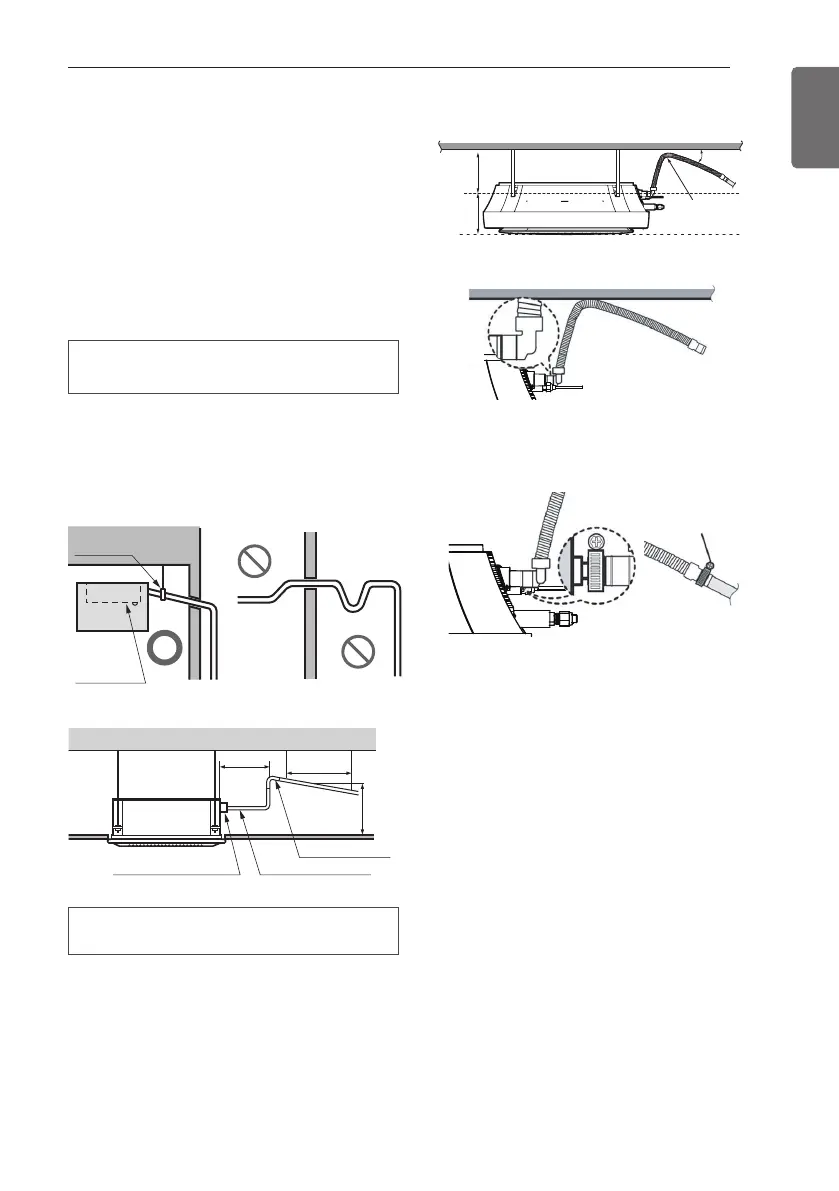

Indoor Unit Drain Piping
[Ceiling Concealed Duct / Cassette]
- Drain piping must have down-slope (1/50 to
1/100): be sure not to provide up-and-down
slope to prevent reversal flow.
- During drain piping connection, be careful
not to exert extra force on the drain port on
the indoor unit.
- The outside diameter of the drain connection
on the indoor unit is 32 mm.
- Be sure to execute heat insulation on the
drain piping.
- Install the drain raising pipes at a right
angle to the indoor unit and no more than
300 mm from the unit.
To Next Page
