LG CM24F User Manual

24

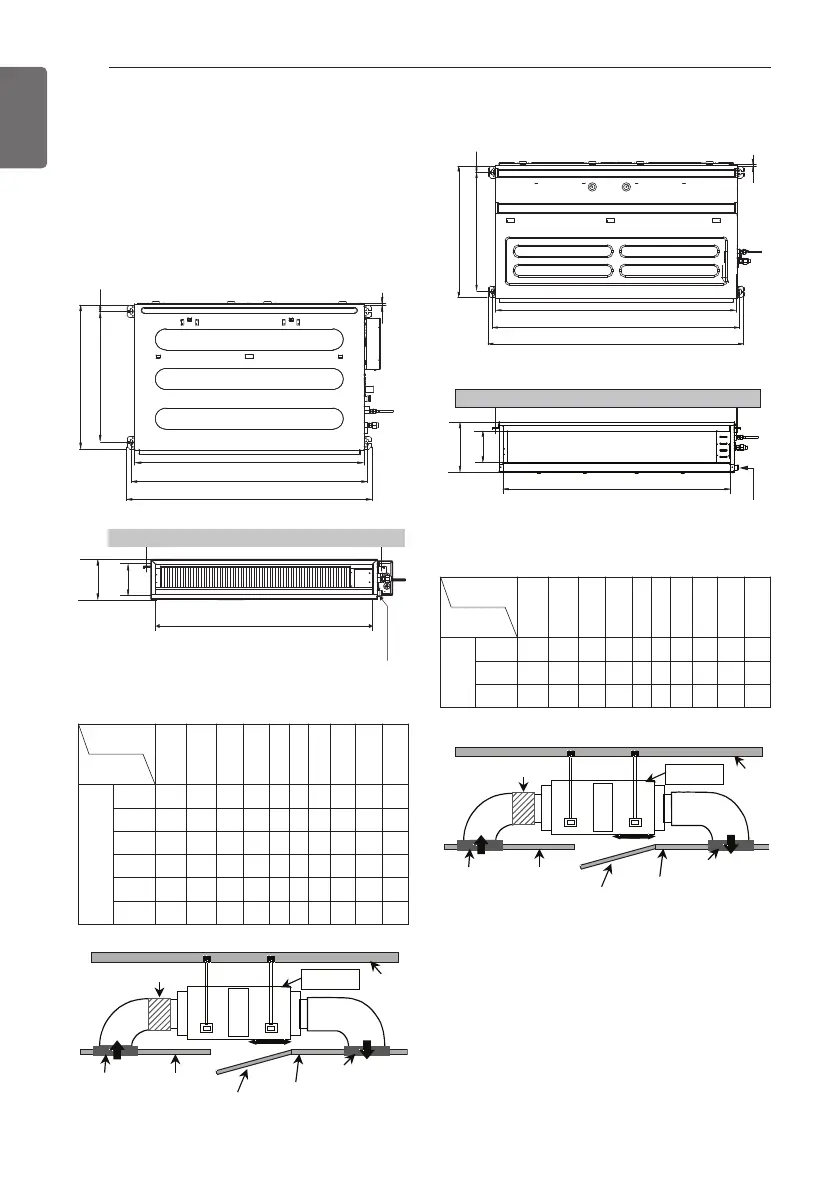

THE INDOOR UNIT INSTALLATION
ENGLISH
Position of suspension Bolt
- Apply a joint-canvas between the unit and
duct to absorb unnecessary vibration.
- Apply a filter Accessory at air return hole.
[Ceiling Concealed Duct – Low Static]
[Ceiling Concealed Duct – Mid Static]
C
E
G
D
F
I
A
J
B
H
Drainage hole
C
E
G
D
A
J
B
Drainage hole
F
I
H
Inspection Port
Indoor Unit
Ceiling
Canvas Duct
Air Intake Port
Ceiling Board
Ceiling Board
Air Discharge Port
Discharge
Flexible Duct
Intake
Duct
Inspection Port
Indoor Unit
Ceiling
Canvas Duct
Air Intake Port
Ceiling Board
Ceiling Board
Air Discharge Port
Discharge
Flexible Duct
Intake
Duct
(Unit: mm)
(Unit: mm)
Dimension
Chassis
A B C D E F G H I J
Low
Static
L1 733 772 628 700 36 190 20 660 155 700
L2 933 972 628 700 36 190 20 860 155 900
L3 1133 1172 628 700 36 190 20 1060 155 1100
L4 733 772 338 460 36 190 20 660 148 700
L5 933 972 338 460 36 190 20 860 148 900
L6 1133 1172 338 460 36 190 20 1060 148 1100
Dimension
Chassis
A B C D E F G H I J
Mid
Static
M1 933.4 971.6 619.2 700 30 270 15.2 858 201.4 900
M2 1 283.4 1 321.6 619.2 689.6 30 270 15.2 1 208 201.4 1 250
M3 1 283.4 1 321.6 619.2 689.6 30 360 15.2 1 208 291.4 1 250
