THE INDOOR UNIT INSTALLATION
39
ENGLISH

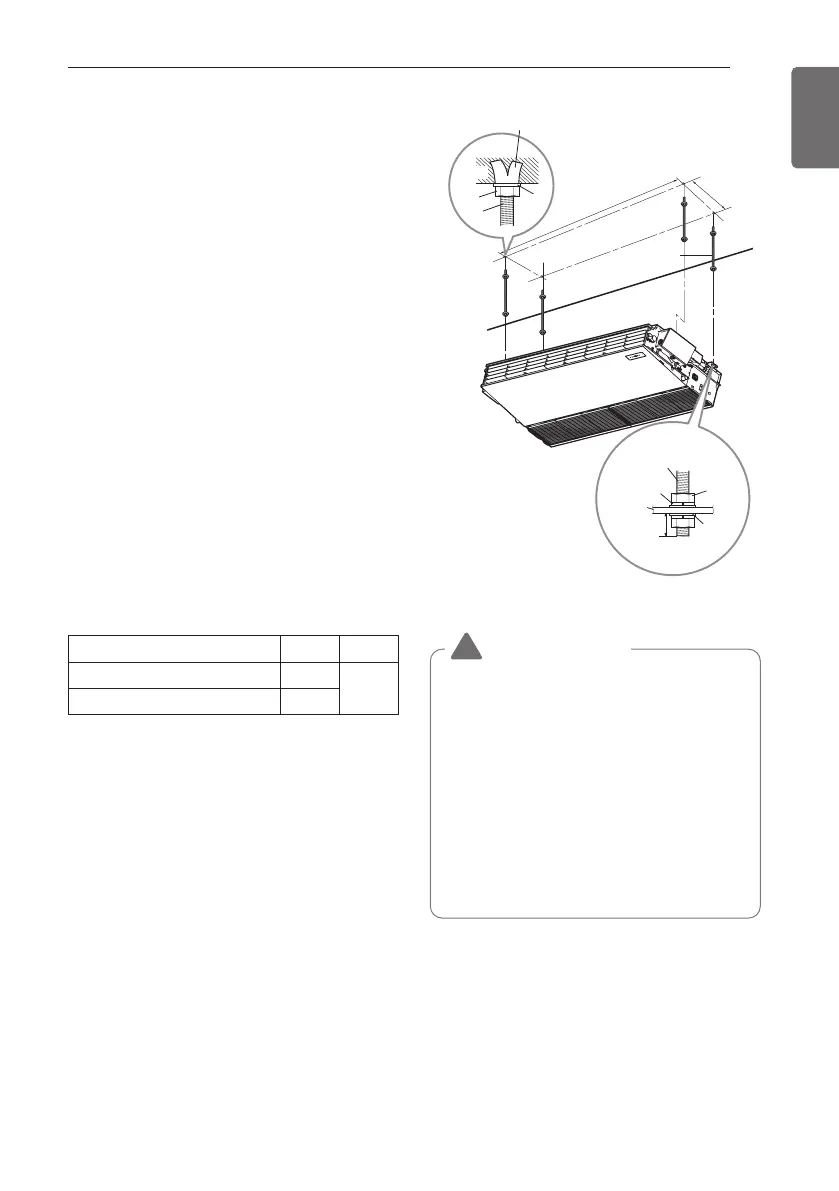

Mounting the anchor nut and
bolt
- Prepare 4 suspension bolts. (Each bolts
length should be same.)
- Measure and mark the position for the
Suspension bolts and the piping hole.
- Drill the hole for anchor nut on the ceiling.
- Insert the nuts and washer onto the
suspension bolts for locking the suspension
bolts on the ceiling.
- Mount the suspension bolts to the
anchornuts firmly.
- Secure the hangers onto the Suspension
bolts (adjust level roughly.) using nuts,
washers and spring washers.
- Adjust a level with a level gauge on the
direction of left-right, back-forth by adjusting
suspension bolts.
- Adjust a level on the direction of top-bottom
by adjusting suspension bolts. Then the unit
will be declined to the bottomside so as to
drain well.
(Unit : mm)
t
B
A
Nut
Ceiling
Anchor nut
Washer
Washer
Suspension
bolts
Suspension
bolts
Spring
washer
Max.
12 mm
Nut
Suspension
bolts
Hangen
Washer
Suspension bol
Suspension bol
Model (kBtu/h) A B
18 k/24 k 1 018
355
36 k/42 k/48 k/60 k 1 418
Installation information for declination
- Install declination of the indoor unit is
very important for the drain of the
convertible type air conditioner.
- Minimum thickness of the insulation
for the connecting pipe shall be 10
mm.
- If the Installation Plates are fixed to
horizontal line, the indoor unit after
installing will be declined to the
bottomside.
CAUTION
!
