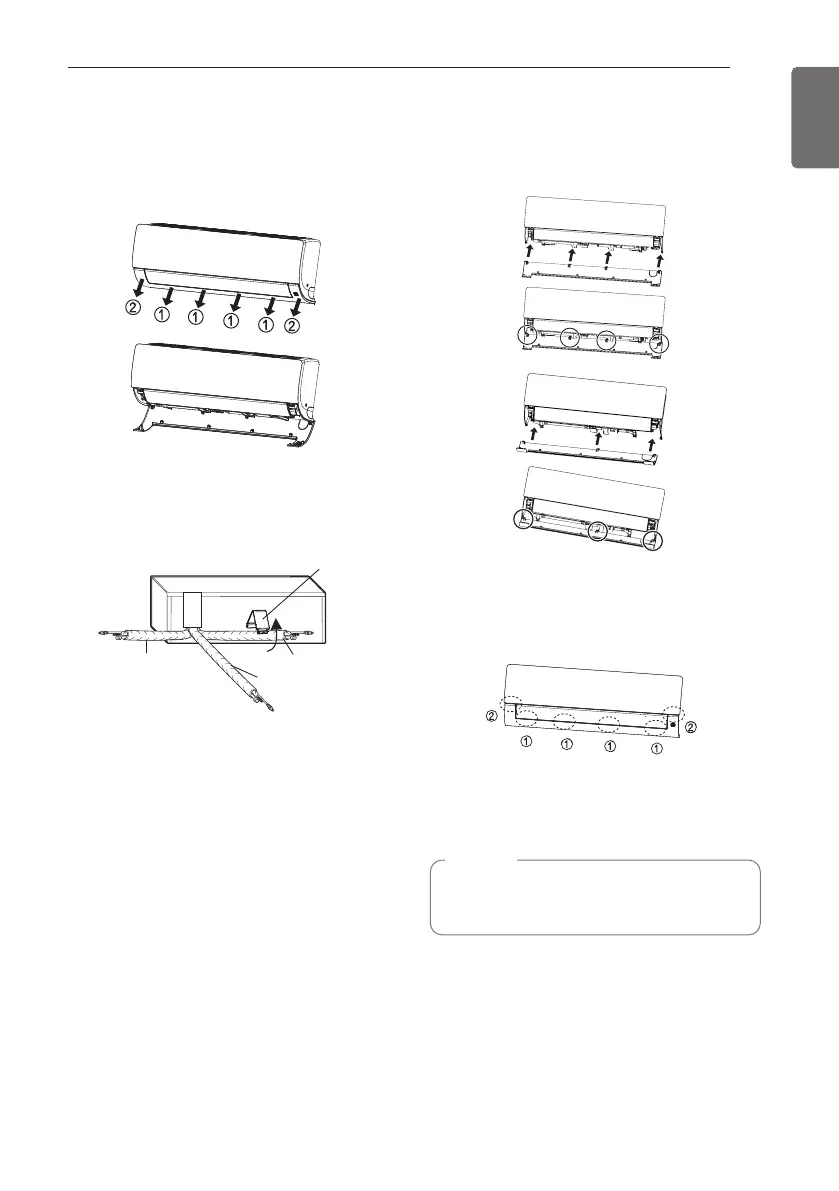

THE INDOOR UNIT INSTALLATION
29
ENGLISH
Connecting the Piping
1 Pull the cover at the bottom of the indoor
unit. Pull the cover ①→②.
2 Remove the cover from the indoor unit.
3 Pull back the tubing holder.
4 Remove pipe port cover and positioning
the tubing
Assembly of chassis cover
1 Insert 4 hooks of the chassis cover into
gap of the chassis certainly.
2 Push the 6 point hook to assemble chassis
cover. Push the chassis cover ①→②.
* The feature can be changed according to
type of model.
Right
Indoor unit back side view
Tubing holder
Left
Backwards
NOTE
To protect the chassis cover bended,
assembly chassis cover correctly.
To Next Page
