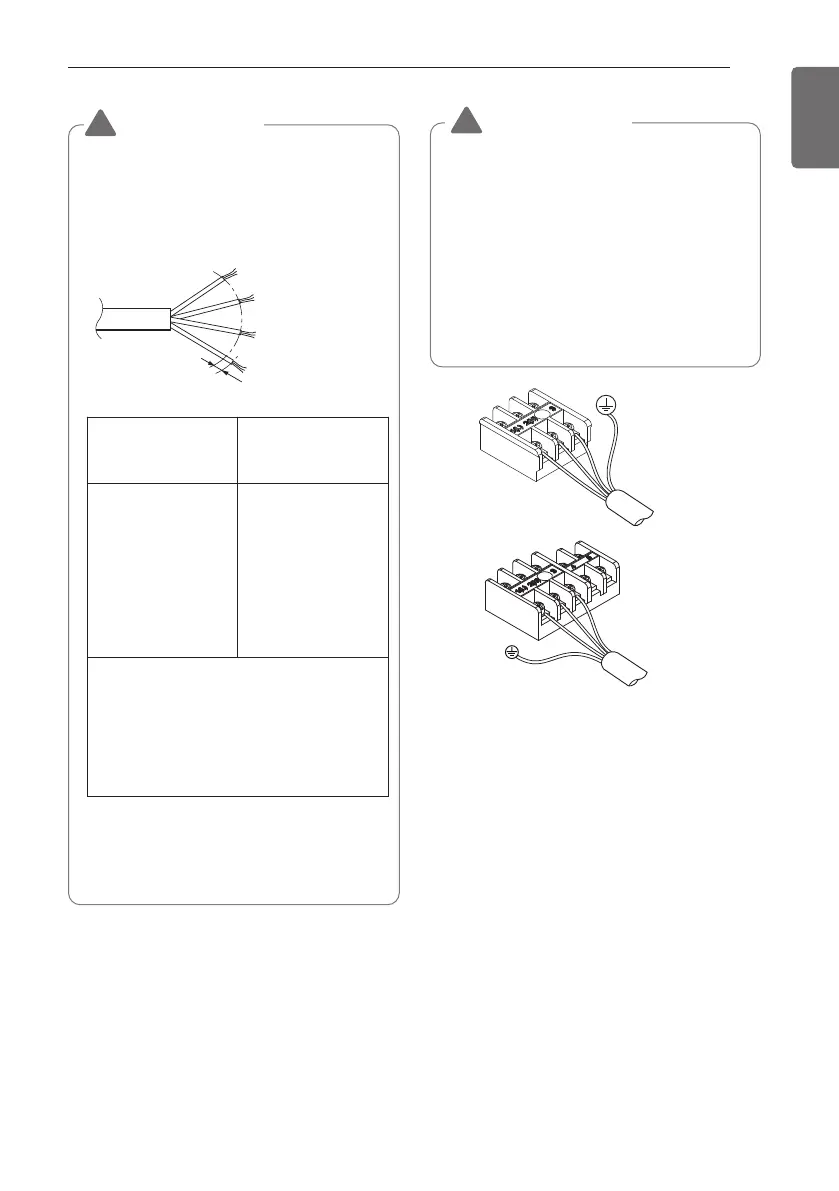

THE INDOOR UNIT INSTALLATION
CAUTION
!
- The circuit diagram is a subject to
change without notice.
- The earth wire should be longer than the
common wires.
- When installing, refer to the circuit
diagram on the chassis cover.
- Connect the wires firmly so that they
may not be pulled out easily.
- Connect the wires according to color
codes, referring to the wiring diagram.
• The connecting cable connected to the
indoor and outdoor unit should be
complied with the following
specifications (Rubber insulation, type
H05RN-F approved by HAR or SAA).
• If the supply cord is damaged, it must
be replaced by a special cord or
assembly available from the
manufacturer of its service agent.
CAUTION
!
20 mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA
Rated current of
appliance A.
Nominal
cross-sectional area
mm
2
≤ 0.2
> 0.2 and ≤ 3
> 3 and ≤ 6
> 6 and ≤ 10
> 10 and ≤ 16
> 16 and ≤ 25
> 25 and ≤ 32
> 32 and ≤ 40
> 40 and ≤ 63
Tinsel cord
0.5
0.75
1.0 (0.75)
1.5 (1.0)
2.5
4
6
10
NOTE For supply cords supplied with
multi-phase appliances, the nominal
cross-sectional area of the conductors is
based on the maximum cross-sectional
area of the conductors per phase at the
supply cord connection to the appliance
terminals.
To Next Page
