3. TECHNICAL BRIEF
- 40 -
3.5.8 Bluetooth (M101 : LBRQ-2B43A)
The MSM6281 includes BT baseband embedded BT 1.1 compliant baseband core, so the other

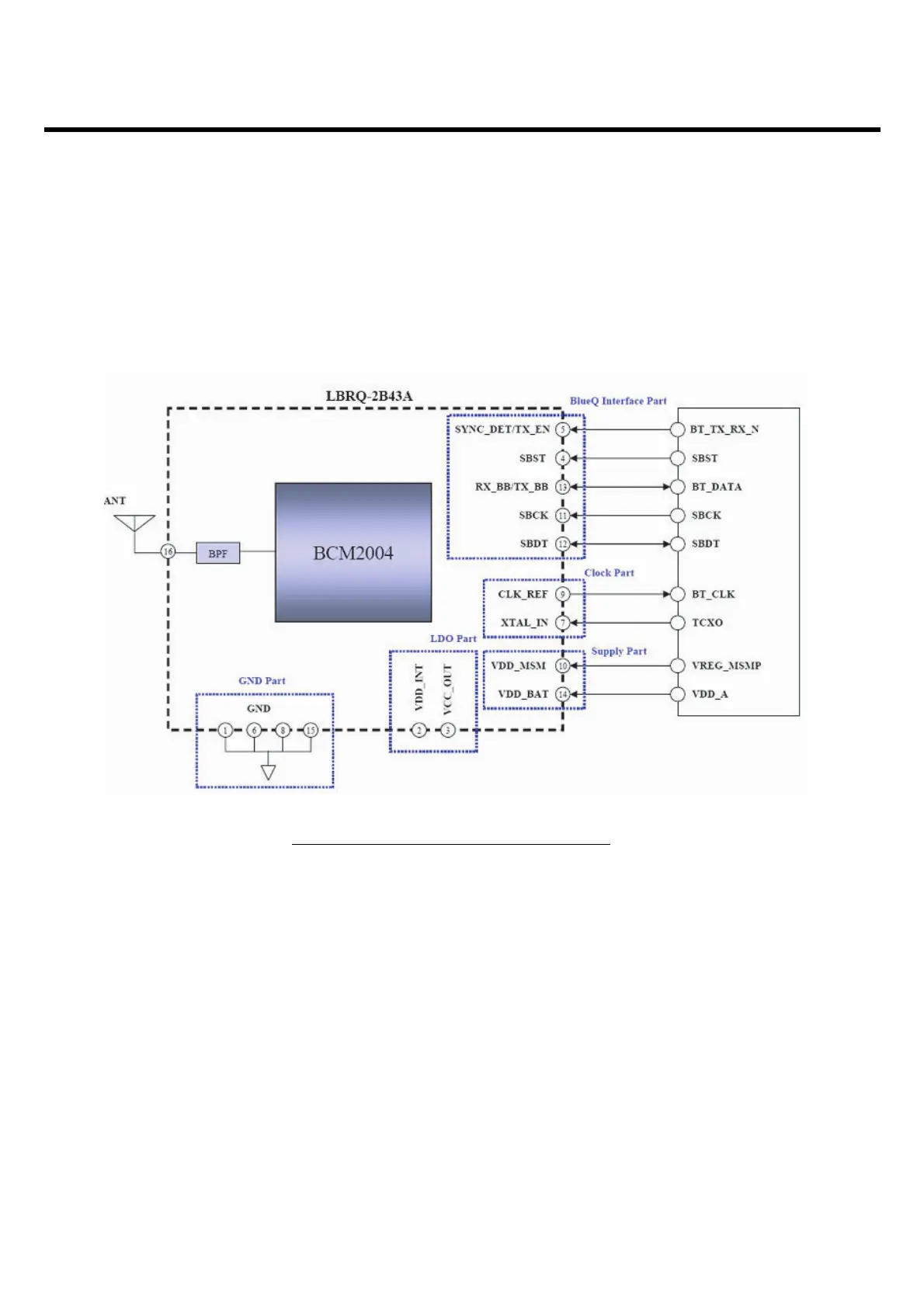

bluetooth components are an bluetooth RF module and Antenna. Figure 3-5-8 shows the bluetooth
system architecture in the CU920/CU915.
