3. TECHNICAL BRIEF
- 41 -
3.5.9 Media FLO (The Media FLO function is for CU920)
The Media FLO system is an end-to-end solution that enables multicasting of high-quality video, audio,
clipcast media, and IP datacasting. The MediaFLO system uses forward link-only(FLO™)technology_a
new air interface designed to increase capacity and reduce the costs of content delivery to mobile
devices. The QUALCOMM FLO chipset RBR1000™ Ics can be integrated into handsets for receiving
FLO multicast signals.
MSM6281
MBD1000
MEMORY
RBR1000
FLO_INI1
EBI2_DATA(0:15)
A(1:9)
EBI2_WE_N
EB
I2_OE_N
FLO_INI0
RESOUT_EBI2_N
FLO_SSB
I
FL
O_CS
RF_ON
MBD_RX_IQ
RX
FILT
ER
RBR1000_TCXO
VREG_MFLO_2.6V
VREG_MSM
P_2.8V
VREG_MSMA_2.6V
VREG_MSMC_1.8V
VREG_MSME_1.8V
SLEEP_CLK
TCXO_MSM
SDRAM_DATA(0:31)
SDRAM_ADDR(0:12)

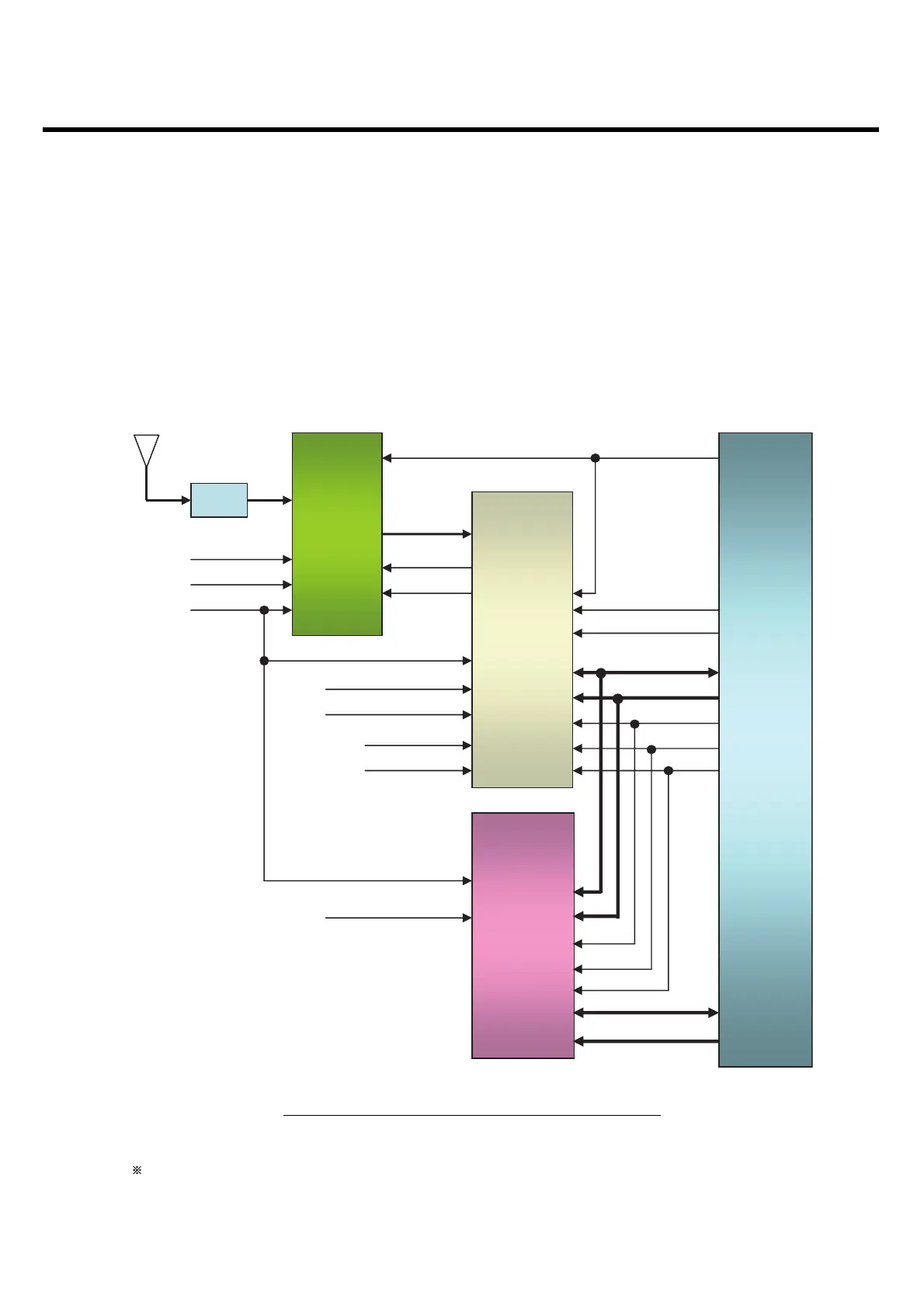

Figure. 3.5.9 CU920 Media FLO system architecture
only CU920
