- 72 -
3. TECHNICAL BRIEF
3.10.6 Keypad Light
There are 2 White LEDs in Main key backlight circuit, which are driven by LED_CON line from
PM6650 pin23 (KPD_DRV_N).
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes

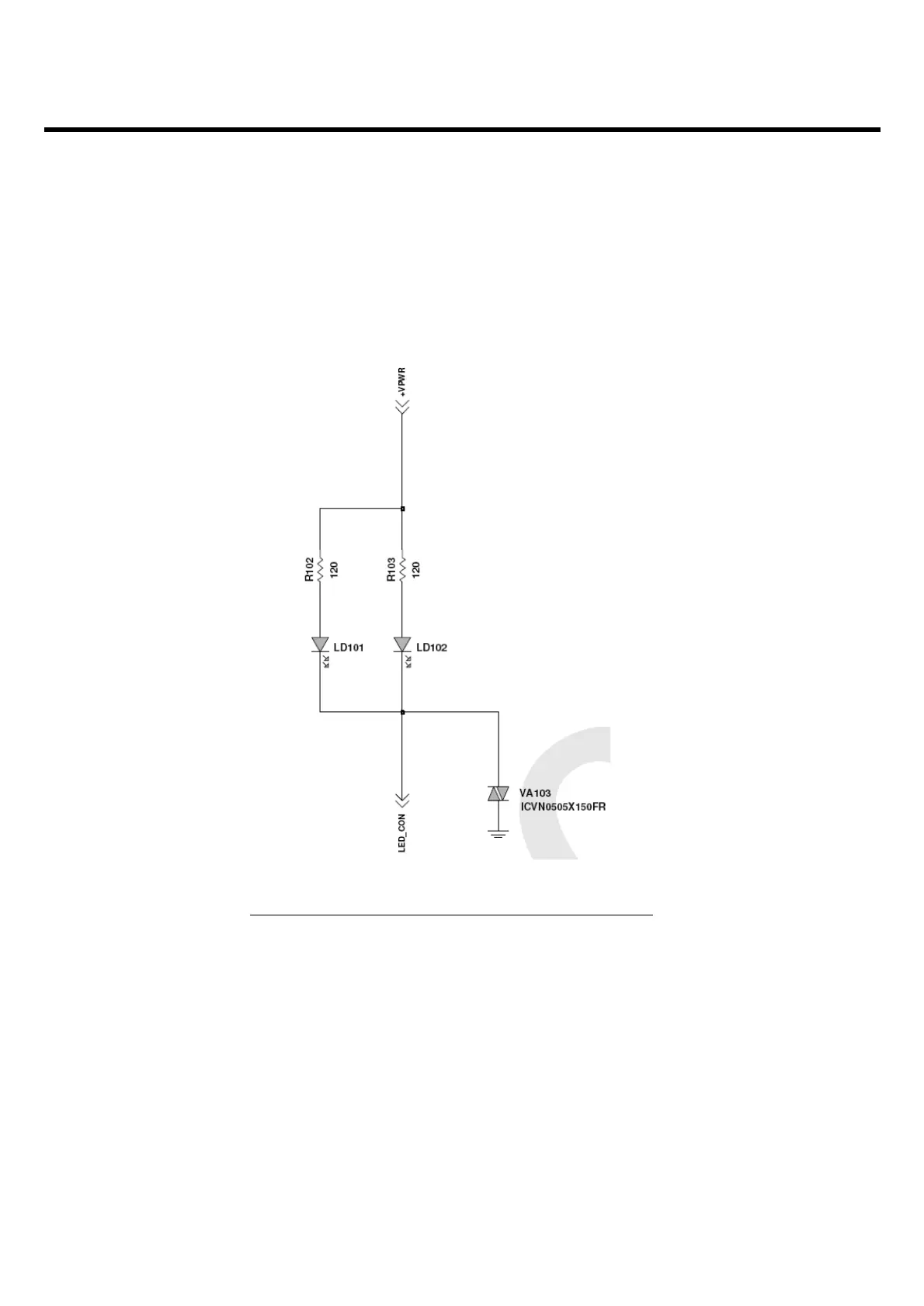

Figure. Schematic of KEY back light circuit (KEY side )
