LG D690 - Pcb Layout

- 136 -
Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
8. PCB LAYOUT
ANT6100 ANT6101
CN9105
CN9106
U8700
C8701
C1105
C1340
L1329
FL1305
U1100
U3100
VB9200
U6101
U6102
D9201
LD8100
CN9103
U5200
X5200
U9100
U2100
U1200
U5100
U8101
FL1100
FL1300
FL1302
FL1303
SC9112SC9118
SC9110
SC9101
SC9105
SC9115
SC9120
SC9116
SC9104
C9103
U1300
CN9102
SC9113
L1345
U1301
C1336
C1335
C1334
L1341
L1322
L1350
L1307
C1301
L1306
C1302
L1200
L1201
C1100
L1102
C1117
C2328
C2324
C9105
C9104
C5215
C5207
C5208
C5218
C5219
C5216
VA9101
L1113
R1203
C1207
L1112
L1101
C1110
L1314
C1303
R1602
L5106
R5100
C5103
C5112
L1308
L1309
L1312
L1305
C1300
L1304
C1116
L1121
L1122
L1120
C1115
R1109
C1339
C1337
L1343
C1304
L1315
L1317
L1100
L1107
L1111
L1117
C1106
C2325
TP2206
TP2100
TP5203
TP5201
TP5204
TP5202
TP5200
TP5206
R1103
C2327
C2331
C2322
C2334
C2335
C2326
C2330
C6104
C2337
L1103
L1116
C1111
C1321
L1319
L1316
C1314
L1320
L1310
FL1301
R1603
C1311
C1312
C1313
R1601
L1344
L1328
C1120
C1122 C1123
C1124
C1121
C1119
C1118L1119
C1131
L1104
L1108
L1109
C1338
L1300
L1327
X1200
L1325
L1347 L1346
C2103
C9115
R9119
R9118
R9103
R2102
C2321
R2101
C2336
R9105
R2105
C2102
C2100
R2104
C9107
R3105
R2103
C3111 C3109
C3114
C7208
D6101
D6100
C3113
C3110
C3112
C6152
FB6102
VA9215
C9910
L9200
C6151
R6134
R6133 C6147
R3101 R3100
R3104
R3102 R3108 R3103
R3106
R3107
R3309
C3102
C5202
C5210
C3115
C3116
L1303
L1349
L1351
C1328
C5107
C5104
U5101
L5104
L5105
L5112
C5114
C5111
L5113
L5111
R5101
L1340
C1327 L1338
L1348
L1324
L1323
C5109
L5110
C5116
C5117
C5115
C5120
L5100
LD9200
C5102
C5013
C5119
C5105
R1300
L1336
L1339
L1337
C1307
C1308
C1201
C1200
L1313 L1318
L1301
L1302
L1326
R1106
R1107
R1108
R1104
R1105
R9116
R9115
R3109
C5214
C5213
C5209
C5200
R5200
C5212
C6141
FB6111
FB6110
C6140
C6145
R6138
VA7201
C6106
C6107
VA7200
CN6100
C6142
FB6101
C6144
C6149
C6150
R6137
R6135
R8107
C6143
C6146
C6148
R6136
R4200
R6132
C5203
L5200
C5217
L5201
R5204
C5205
C3103
C9112
R9117
C2101
C1206
R1204
C1203
C1202
C1204
C1205
C1310
C1309
L1335
C1331
C1333
C1332
C1330
L1321
C1306
L1311
L1342
C8700

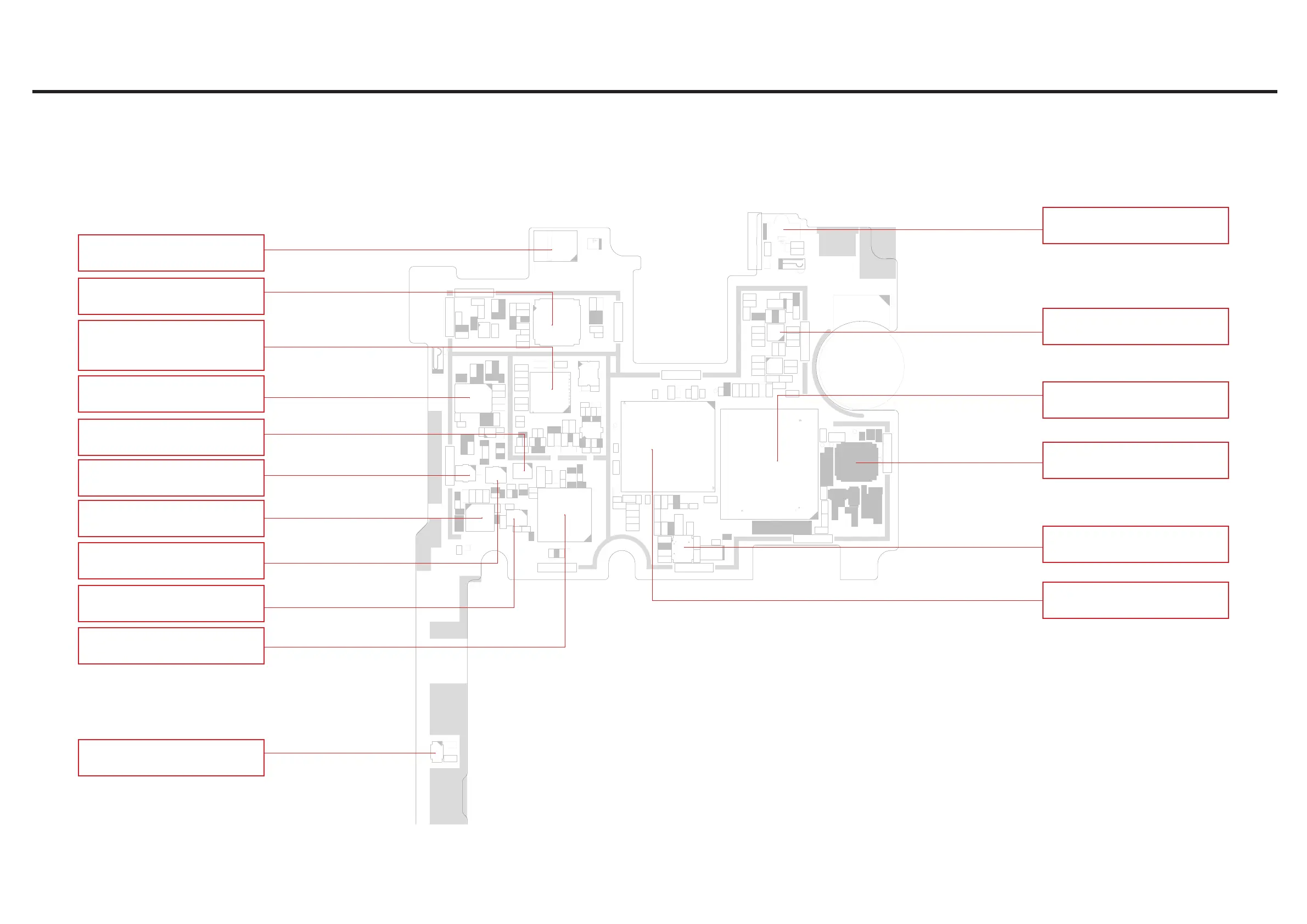

8. PCB LAYOUT
LG-D690_MAIN_1.0_TOP_1
U8101 : Proximity Sensor
- No Proximity Funtion
LD8100 : IRRC LED
- Q-remote not Operate
U6102 : Audio Codec
- No sound
U5300 : NFC IC
- No NFC Funtion
U3100 : eMMC
- No Power / Reset
U9100 : DCDC Converter
- No Network service
U2100 : Main AP MSM8226
- No Power on / No Charging
U5100 : BT/WIFI Module
- Can not use BT and WIFI
U1300 : WCDMA Band 2/5/8 PAM
- No Network service
FL1300 : WCDMA Band 2 Duplexer
- No Network service
FL1302 : WCDMA Band 2 Duplexer
- No Network service
U1301 : WCDMA Band 1 PAM
- No Network service
FL1303 : WCDMA Band 8 Duplexer
- No Network service
FL1305 : WCDMA Band 1 Duplexer
- No Network service
U1100 : FEM + GSM PAM
- No Network service
U8700 : Hall Sensor IC
- Quick Cover not operate
U1200 : Modem
- No Network Service
- No Power
