LG D690 - Charging Troubleshooting

3. TROUBLE SHOOTING
- 86 -
Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3.17 Charging Troubleshooting
LGD690 uses Linear Charger IC(RT9536GQW) for charging control.The MT6323 circuit, detects the VUSB_USB_INand VBAT
voltages, and controls Linear charger IC(RT9536GQW) with CHG_EN pin(GPIO90). The RT9536GQW maximum charging
current is set around 950mA.
Charging Procedure
- Supply the VBUS_USB_IN use a TA oru-USB cable
- MT6323 controls the Linear charger IC.
- Charging current ows into the main battery
Troubleshooting Check Point
- Connection of the TA or u-USB cable
- Main battery

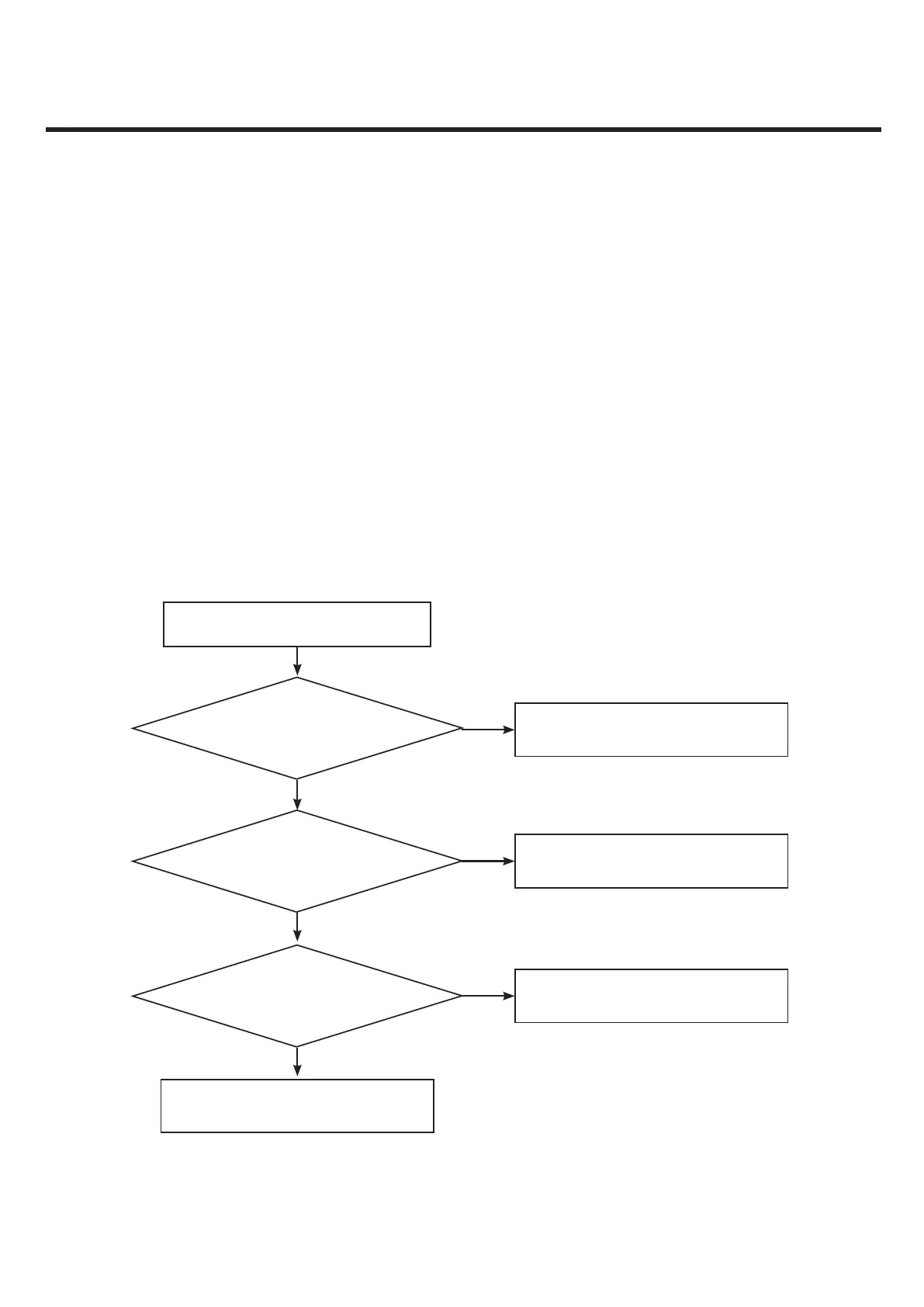

START
Check the Connection of
uUSB and Battery?
Check VBUS_USB_IN voltage
(4.7 ~ 5V, TP1 : C9107)?
Check +4V9_VCHG_LDO voltage
(4.6 ~ 5V, TP2 : C9112)?
Change or charging the Battery
Check TA or uUSB cable
Check U9100(Charger IC)
No
No
No
Yes
Yes
Yes
END
