3. 7 GPS/WIFI/BT RF component
3.7.1 GPS/WIFI/BTComponent
The MT667 is the combination module that integrates GPS, WLAN(WIFI) and BT
LGE Internal Use Only
3.7 GPS/WIFI/BT/NFCRF component
3.7.1 GPS/WIFI/BTComponent
The MT667 is the combination module that integrates GPS, WLAN(WIFI) and BT

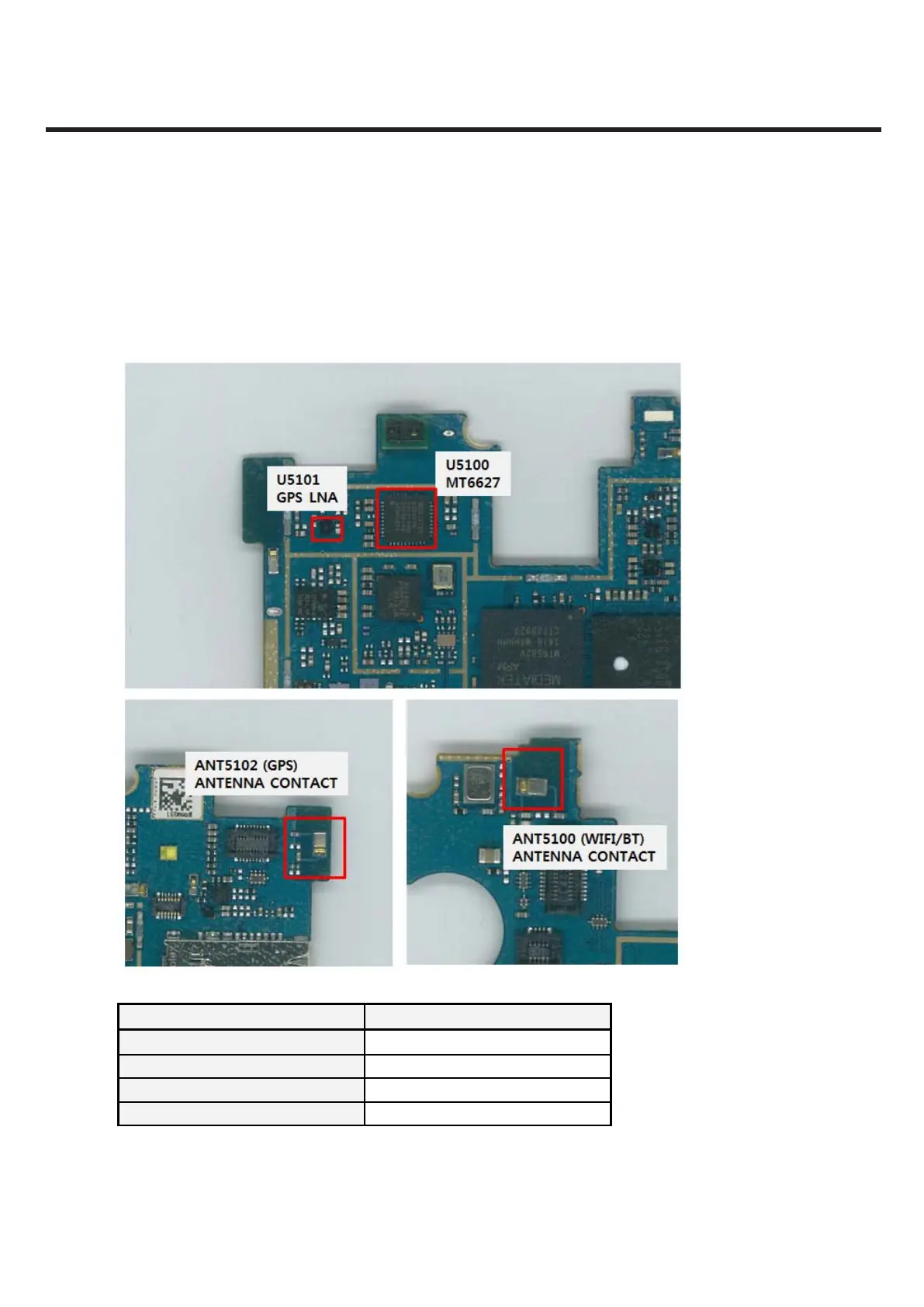

Reference Description
ANT5100 ANTENNA CONTACT(WIFI/BT)
ANT5102 ANTENNA CONTACT(GPS)
U5101 GPS LNA
U5100 MT6627
3.8 GPS/WIFI/BT SIGNAL PATH
3.8.1 GPS Signal Path
