3. TROUBLE SHOOTING
- 56 -
Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

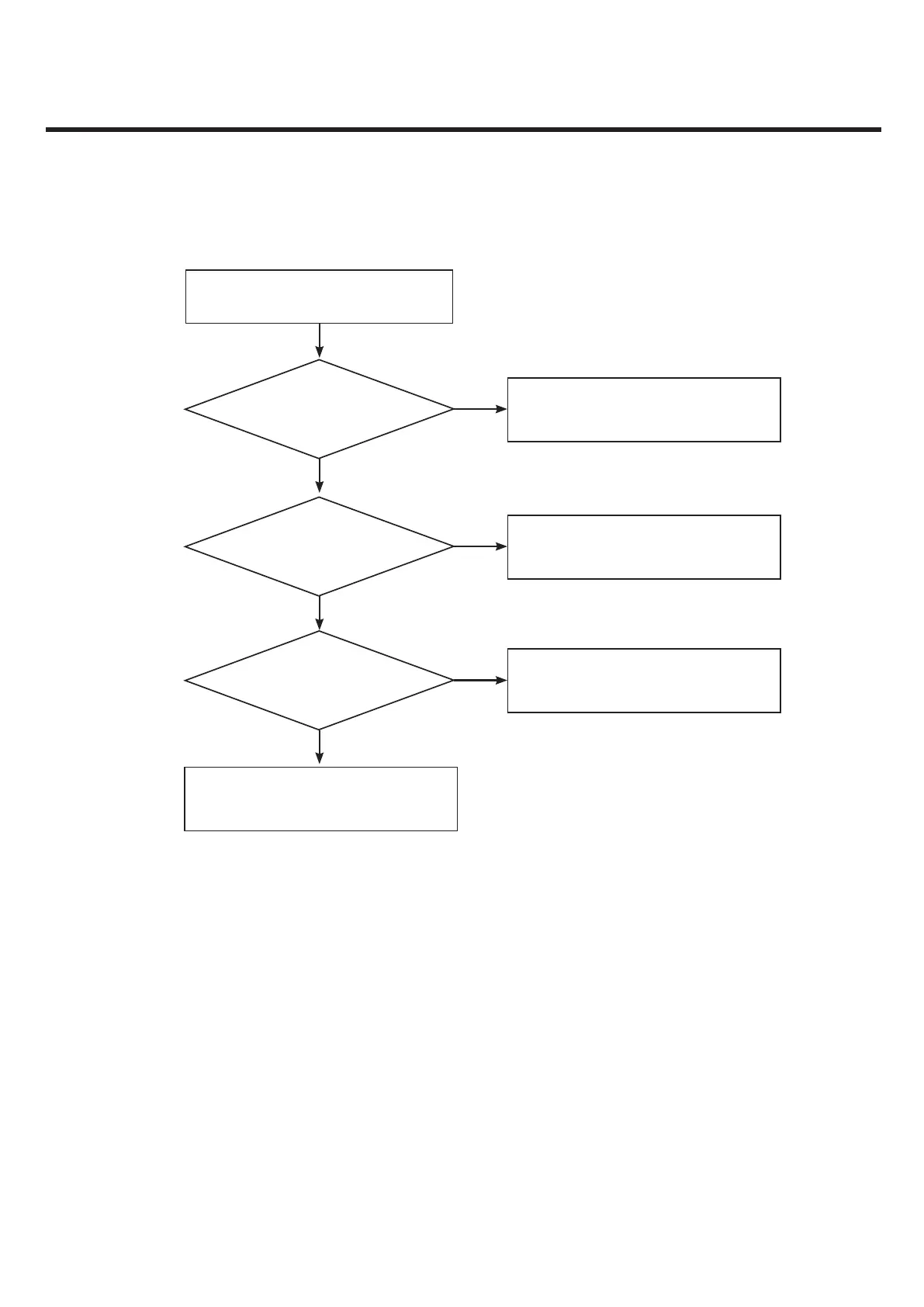

Set the Phone Rx is ON
Check TP2,3 Signal exist ?
Check TP1 Signal exist ?
Check TP4,5 Signal exist ?
Check Tx Module
Check RF Switch (M/S)
Check GSM RX SAW
Check MT6166
