LG D690 - Trouble Shooting; RF Component

3. TROUBLE SHOOTING
- 20 -
Copyright © 2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. TROUBLE SHOOTING
3. 1 RF Component
LGE Internal Use Only
4. TROUBLE SHOOTING
4.1 RF Component

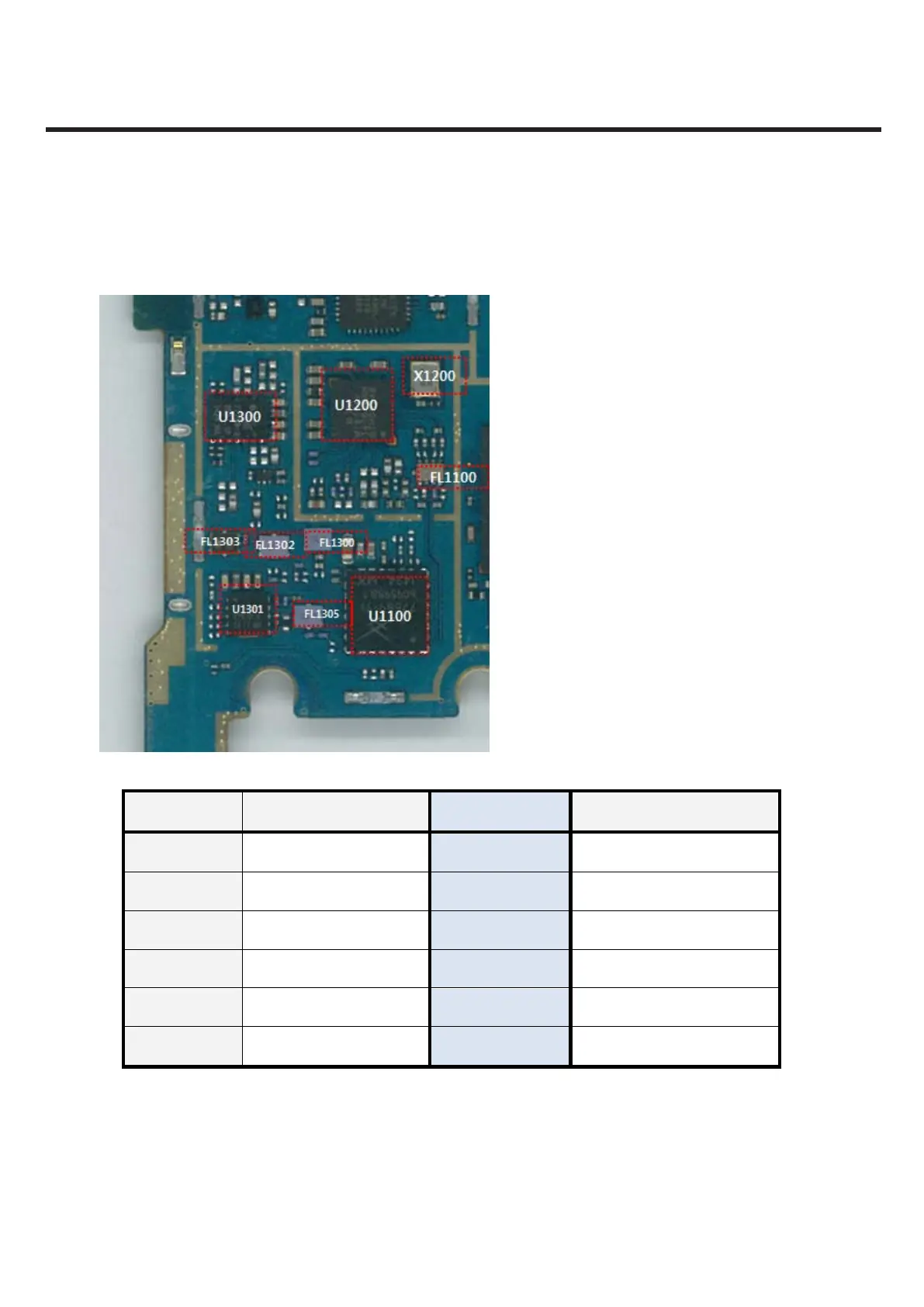

Reference Description Reference Description
U1100 FEM + GSM PAM X1200 XTAL
U1200 MT6166 FL1100 GSM QUAD Rx SAW Filter
U1300 WCDMA B2/5/8 PAM FL1300 WCDMA B5 Duplexer
U1301 WCDMA B1 PAM FL1302 WCDMA B8 Duplexer
U1602 WCDMA B2/B8 Dual PAM FL1303 WCDMA B2 Duplexer
FL1305 WCDMA B1 Duplexer
4.2 SIGNAL PATH
