10
Connecting
2
Connecting

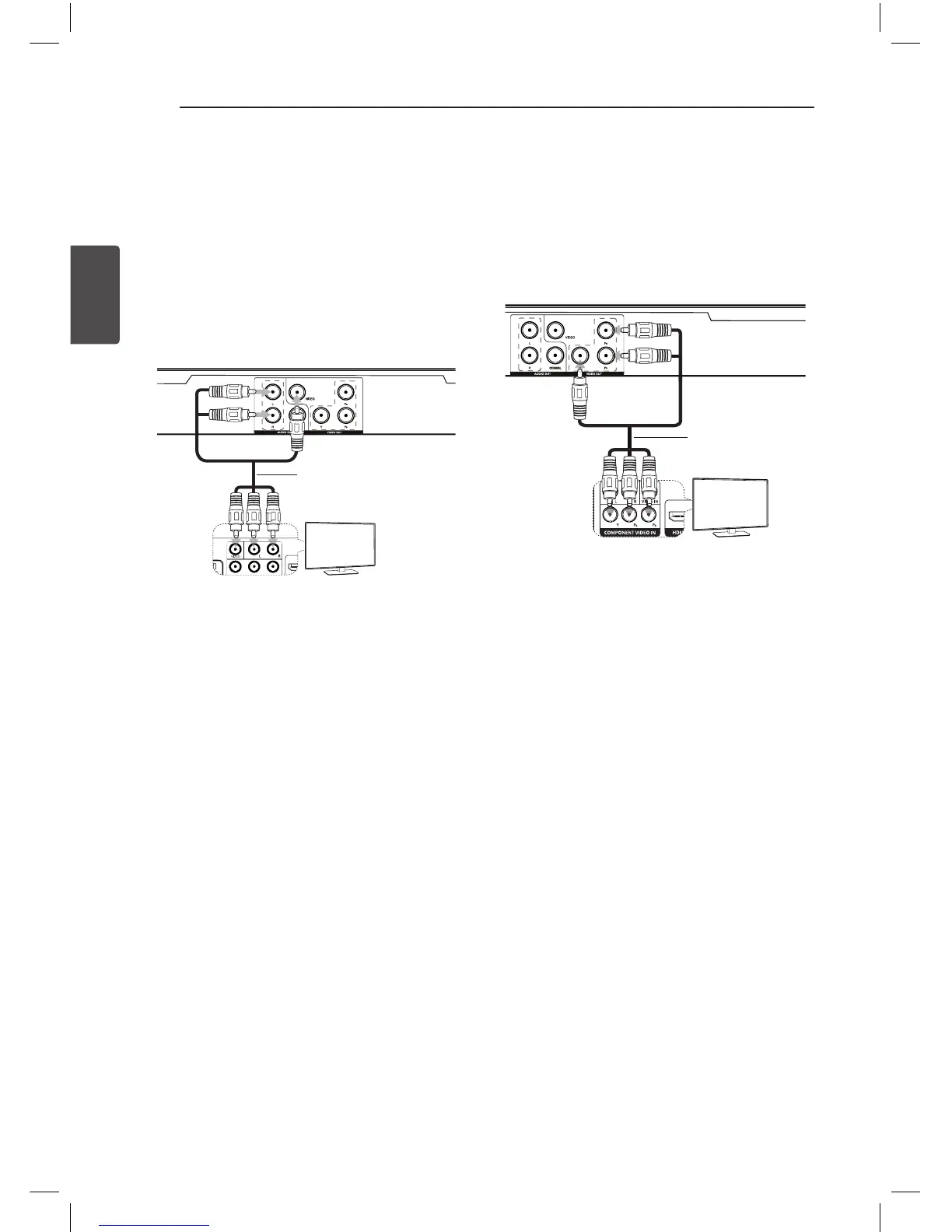

Connecting to your TV
Connecting Video / Audio
Cable
Connect the VIDEO/AUDIO OUTPUT on the unit to
VIDEO/AUDIO IN on TV with Video/Audio cable,
such as VIDEO with yellow, AUDIO Left/Right with
white/ red.
Video/Audio cable
Rear of the Unit
Connecting Component Video
Cable
Connect the COMPONENT VIDEO OUT (Y P
B
P
R
)
jacks on the unit to the corresponding input jacks
on the TV using Component video cable, such as Y
with green, P
B
with blue, and P
R
with red.
Component
Cable
Rear of the Unit
y
If your TV accepts progressive format signals, you
must use this connection and set [Progressive
Scan] to [On] on the setup menu.(See page
12)
y
You should still connect the AUDIO cable
between the unit and TV.
To Next Page
