Power connections
Connecting the AC Adapter
Connect the supplied AC Adapter from the unit to a power socket.
AC adapter
• This AC adapter operates on 100 - 240 V - 1.0 A 50 / 60 Hz.
• Contact an electrical parts distributor for assistance in selecting a suitable
AC plug adapter or AC cord set.
• Manufactured by NANJING WANLIDA TECHNOLOGY CO., LTD.
Connecting the Automotive adapter
This unit and its automotive adapter are designed for use in vehicles that have
8.5 - 15 volt, negative ground electrical systems. This is standard for most
vehicles. If your vehicle has a different type of electrical system, the DC power
system cannot be used.
Automotive adapter
• This automotive adapter operates on DC 8.5 - 15 V.
• Contact an electrical parts distributor for assistance in selecting a suitable
automotive adapter.
• Manufactured by GRAND POWER ELECTRONIC TECHNOLOGY
(SHENZHEN) CO., LTD.
Caution
• To prevent electrical shock and possible damage to your unit or vehicle,
always unplug the automotive adapter from the cigarette lighter socket
before you remove the plug from your unit.
• A 3 amp. 250 V fuse for protection is installed in the automotive adapter.
• While the engine is being started, disconnect the automotive adapter from
the car’s cigarette lighter socket.
• Do not operate your unit when the car battery is discharged.
Peak current from the car generator may cause the DC fuse to blow.
• If the vehicle’s supply voltage drops below approximately 10 volts, your unit
may not work properly.
• Do not leave your unit in a place where the temperature exceeds 40 °C
(104 °F), or the pick-up device may be damaged.
Examples include:
- Inside a car with the windows closed and in direct sunshine.
- Near a heating appliance.
* The actual set may differ from the drawing.

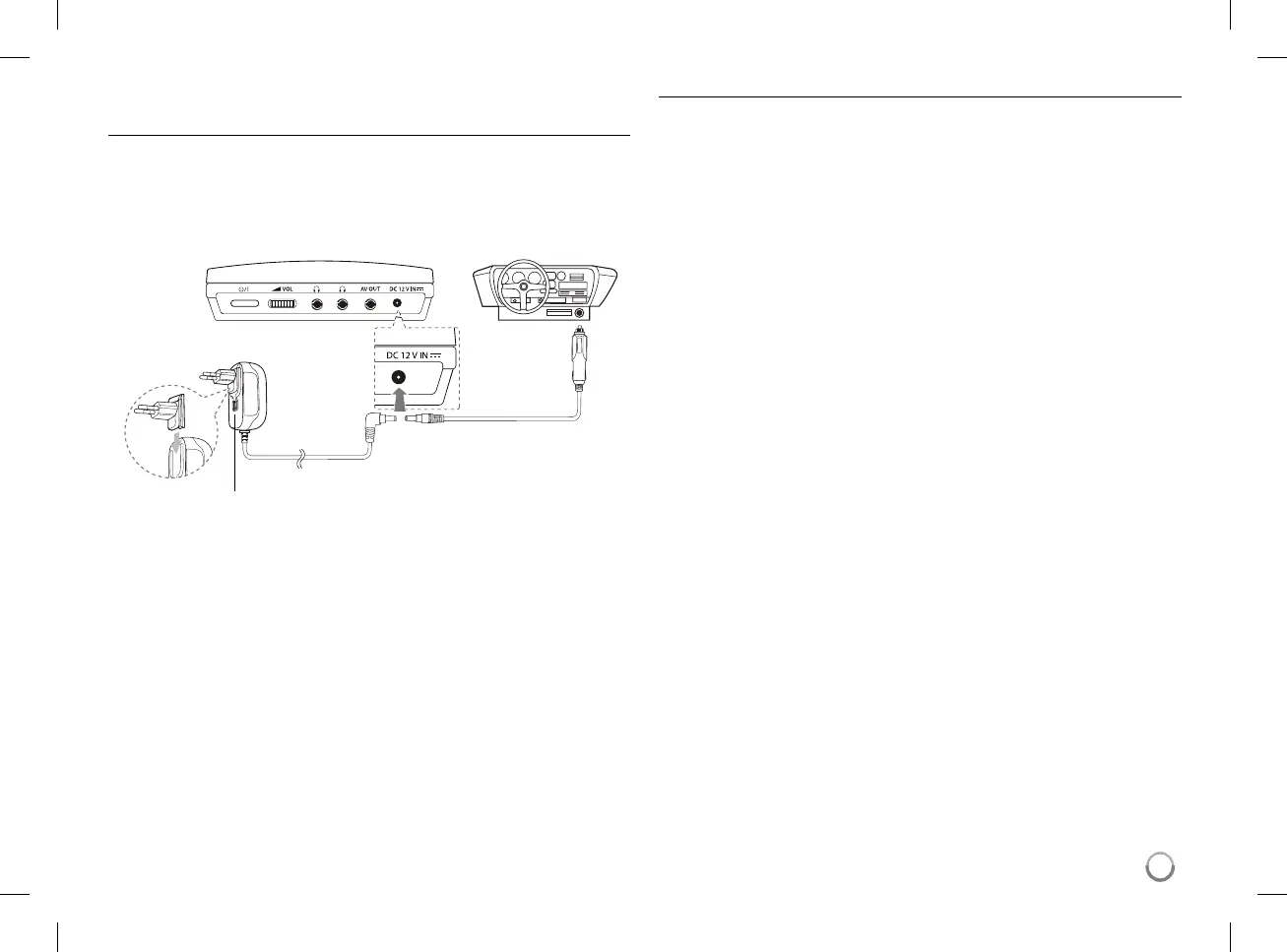

Plug into a power source.
Plug into the “DC 12 V IN” jack.
Plug into the car’s cigarette
lighter socket.
Power cord
release knob
