9

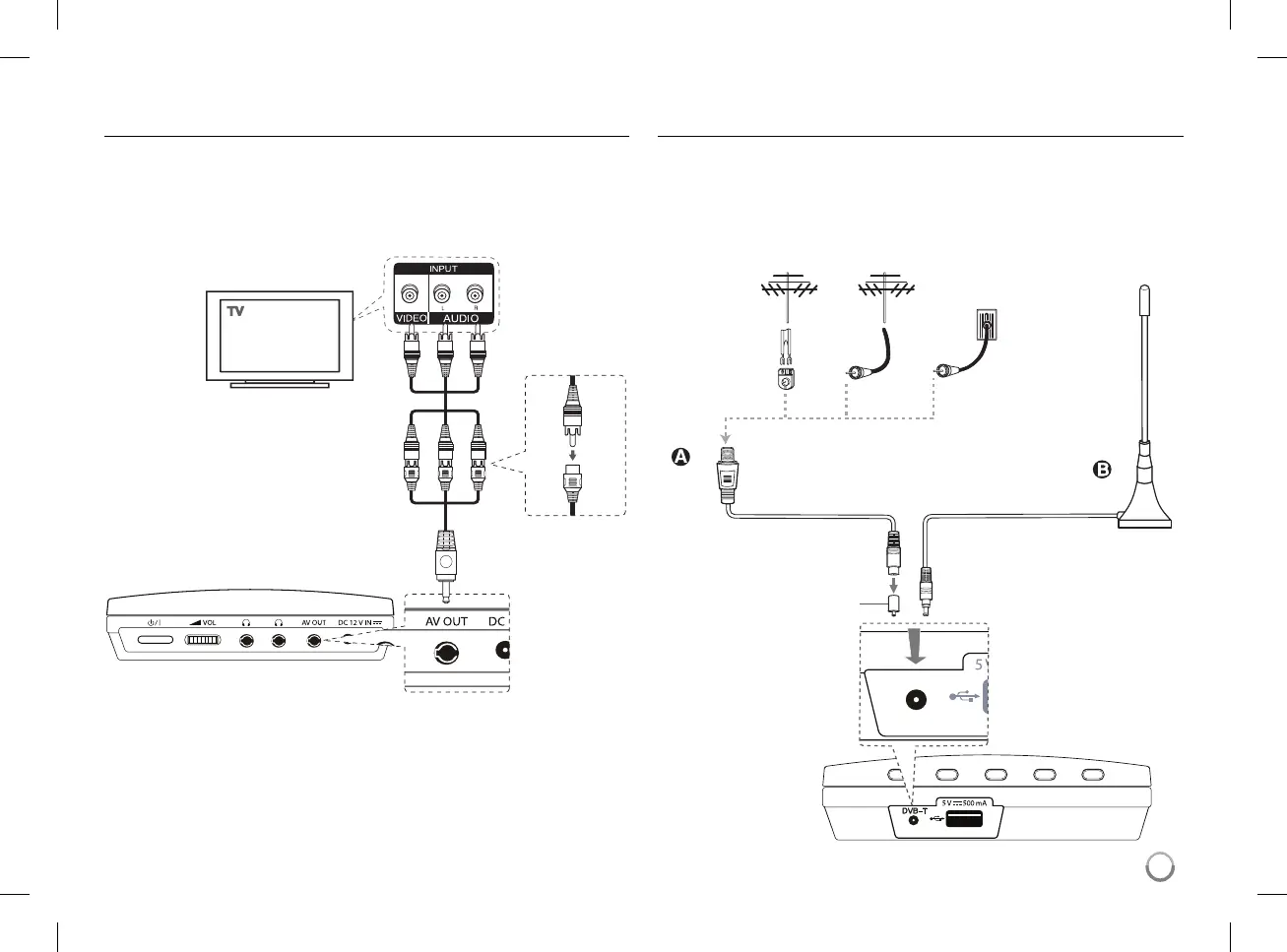

Hooking up the unit
Audio and Video Connection
Connect the AV OUT jack on the unit to the corresponding input jacks on your
TV using the supplied AV cable as shown below.
Audio/Video Cable
(not supplied)
Plug into the “AV OUT” jack.
Audio/Video Adapter
Antenna Connection
Connect the TV antenna to the DVB-T jack on the unit after selecting one
between A and B as shown below:
A: Connect an indoor antenna cable using supplied RF cable hub.
B: Connect a supplied External antenna cable.
DVB-T
RF cable hub
External antenna cable
Cable TV
Wall Jack
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not supplied)
OR OR
Antenna Antenna
To Next Page
