LG DR197 - Device Hardware Overview; Front Panel Layout

7
Introduction
a POWER button
Switches the recorder ON or OFF.
b Disc Tray
Insert a disc here.
c Display window
Shows the current status of the recorder.
REC: The recorder is recording.
TV: Indicates when the recorder is in TV tuner
mode.
: Indicates when the recorder is in timer
recording or a timer recording is programmed.
: Shows the current status of the recorder
(clock, program number, etc).
d Z (OPEN/CLOSE)
Opens or closes the disc tray.
e PROGRESSIVE SCAN (DR197)
Switches the progressive mode ON or OFF.
e RESOLUTION (DR198H)
Sets the output resolution for HDMI and
COMPONENT/ PROGRESSIVE SCAN VIDEO
OUT jacks.
- HDMI: 1080i, 720p, 576p, 576i
- COMPONENT: 576p, 576i
f N / X (PLAY / PAUSE)
Starts playback.
Pause playback or recording temporarily,
press again to exit pause mode.
g x (STOP)
Stops playback or recording.
h z (REC)
Starts recording. Press repeatedly to set the
recording time.
i PROG. (V/v)
Scans up or down through memorized channels.
j Remote Sensor
Point the recorder remote control here.
k DV IN
Connect the DV output of a digital camcorder.
l AV IN 4 (S-VIDEO IN)
Connect the S-Video output of an external source
(TV/ Monitor, VCR, Camcorder, etc.).
m AV IN 4 (VIDEO IN/AUDIO IN (Left/Right))
Connect the audio/video output of an external
source (Audio system, TV/ Monitor, VCR,
Camcorder, etc.).

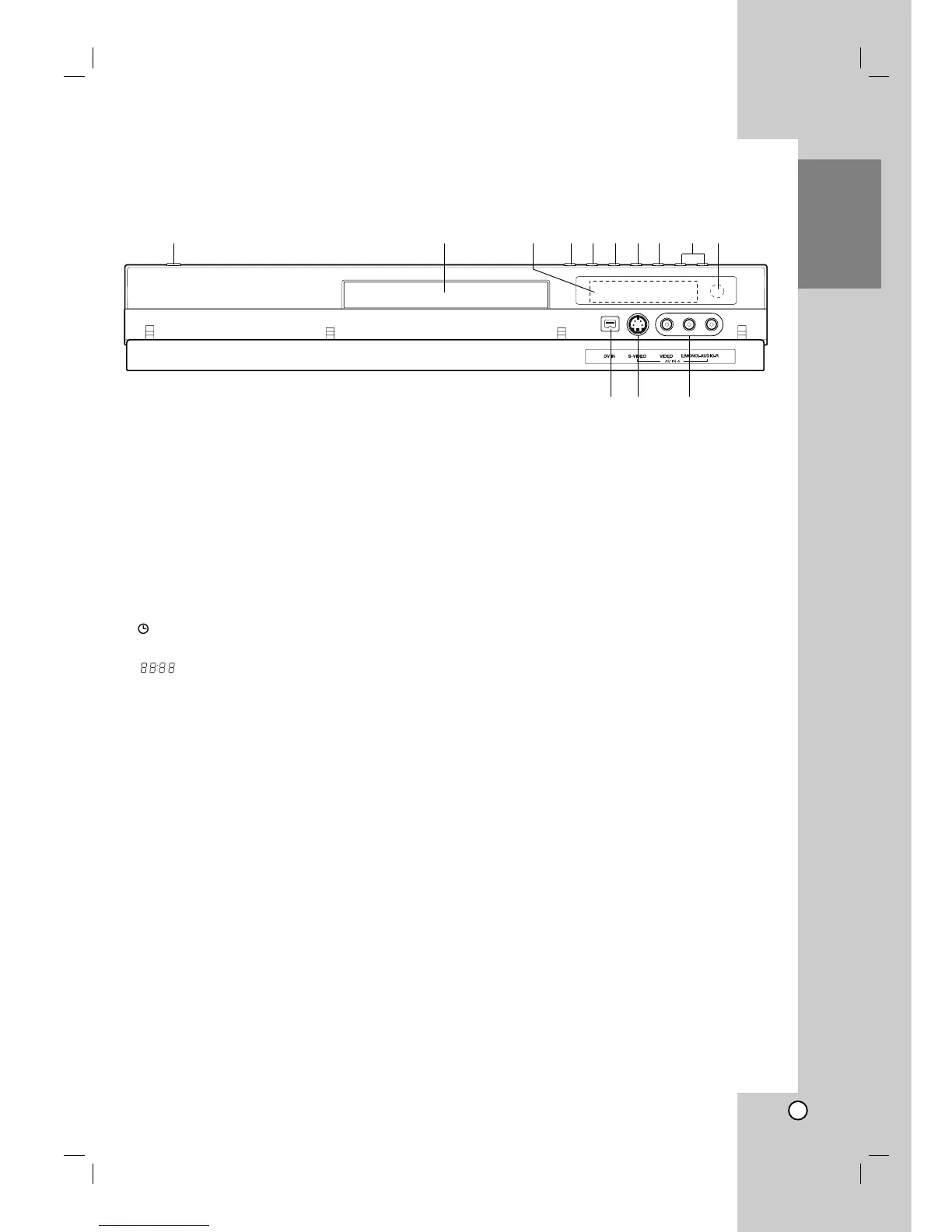

Front Panel
abcdefghij
kl m
