Connecting to the antenna
Remove the antenna cable plug from your TV set and
insert it into the antenna socket at the back of the
recorder. Plug one end of the antenna cable into the
TV socket on the recorder and the other end into the
antenna input socket on your TV set.
RF coaxial connection
Connect the ANTENNA OUT jack on the recorder to
the antenna input jack on the TV using the 75-ohm
Coaxial Cable supplied (R). The ANTENNA OUT jack
passes the signal through from the ANTENNA IN jack.
ANTENNA
INPUT
Aerial
Rear of the recorder
Rear of TV
L
R
AUDIO INPUT
VIDEO
INPUT
SCART INPUT
R
a ANTENNA IN
Connect the antenna to this terminal.
b COMPONENT OUTPUT (Y P
B PR)
Connect to a TV with Y P
B PR inputs.
c AV 2 (DECODER)
Connect the audio/video output of an external
source (Pay-TV decoder, Set Top Box, VCR, etc.).
d AC Power Cord
Plug into the power source.
e ANTENNA OUT
Passes the signal from the ANTENNA IN jack to
your TV/monitor.
f COAXIAL (Digital audio output)
Connect to digital (coaxial) audio equipment.
g AUDIO OUTPUT (Left/Right)
Connect to a TV with audio inputs.
h AV 1 (AUDIO/VIDEO)
Connect to a TV with SCART jack.

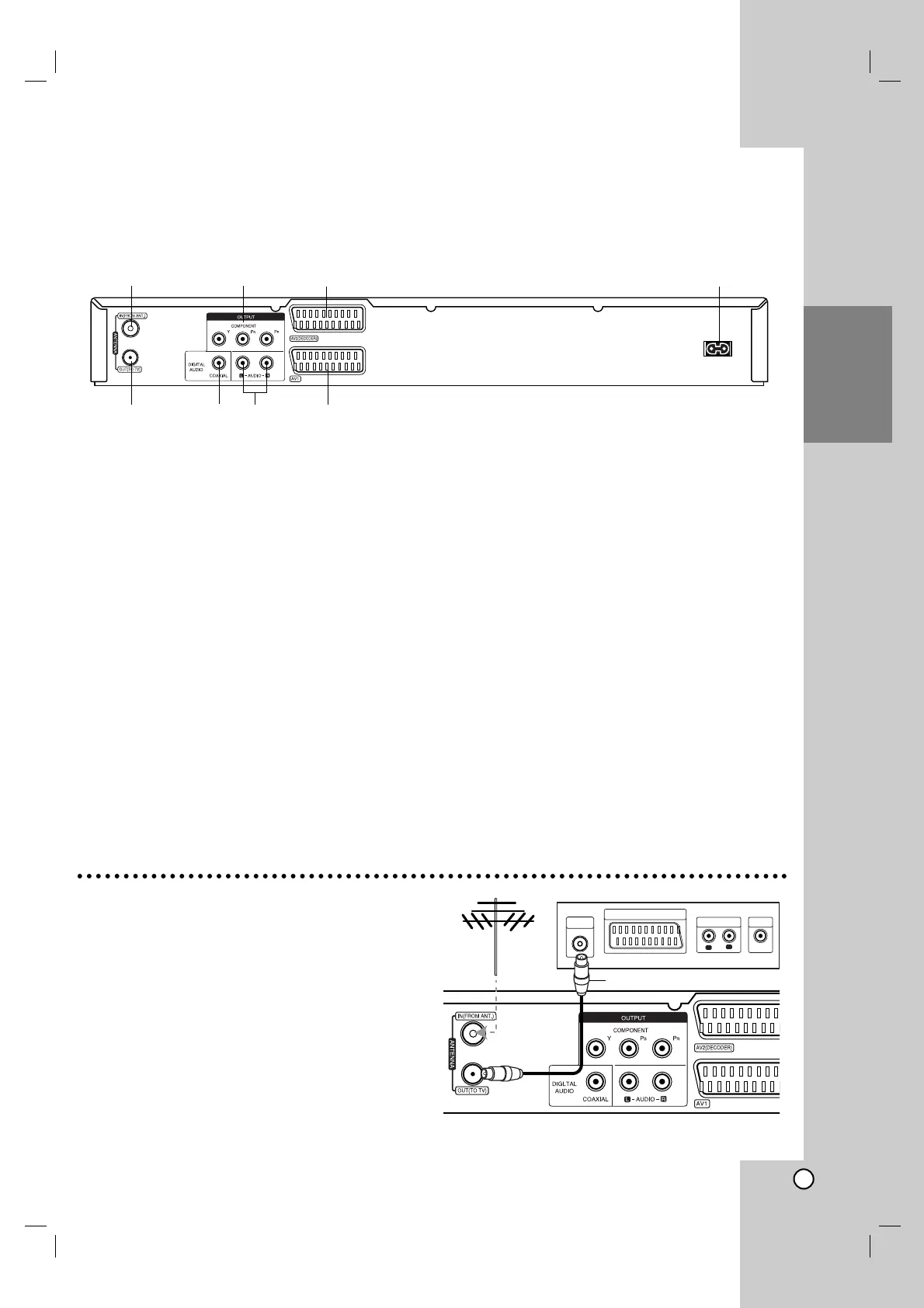

Rear Panel
Hookup and Settings
abc d
efgh
