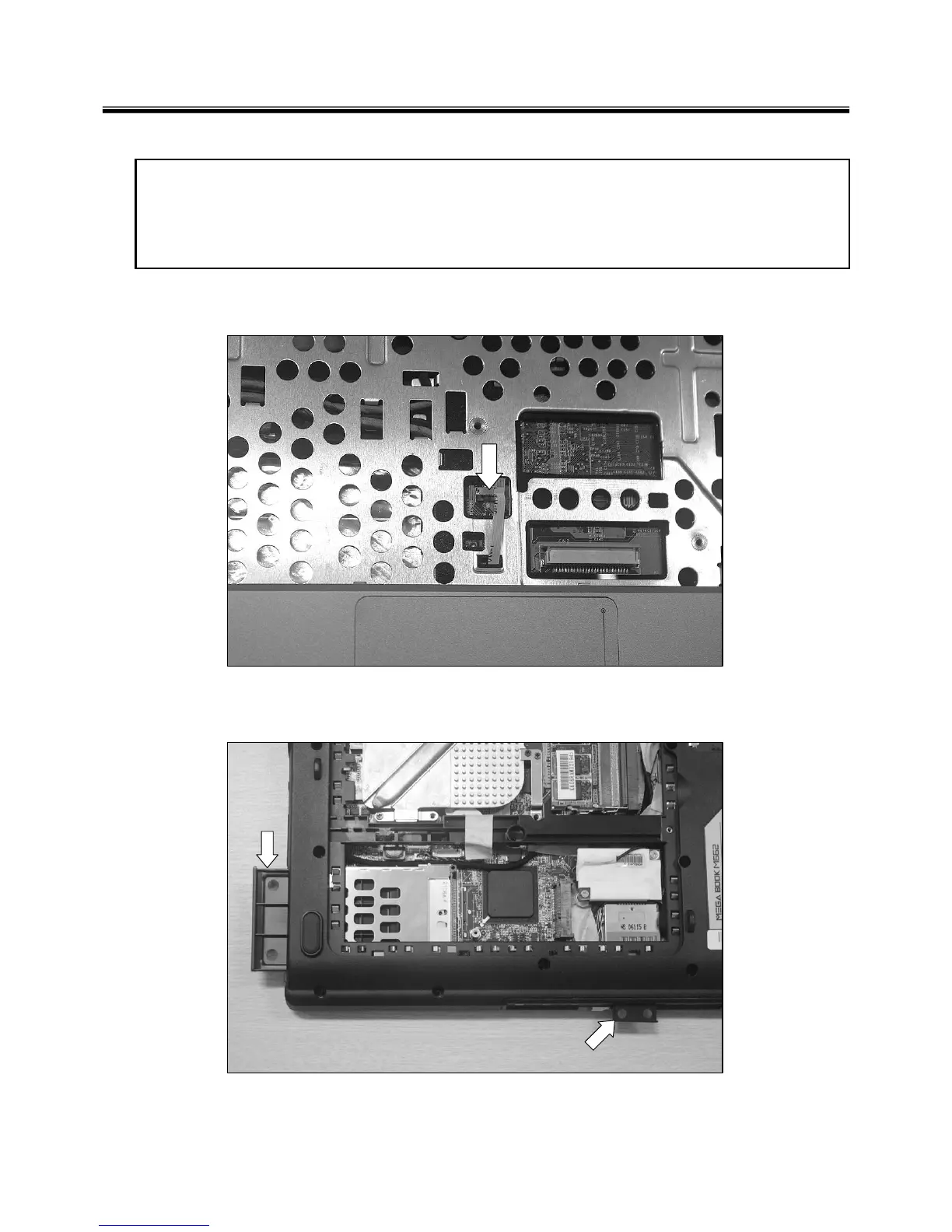

1. Disconnect the Touchpad Connector.
2. Remove the PCMCIA Dummy Card and the SD Dummy Card.
Ch5. Removing and replacing a part
■ 1120 Main Board
※ Remove the following parts in order before replacing this part
a. Battery Pack(1010) b. Hard Disk Drive(1020) c. Memory(1030) d. Optical Disk Drive(1040)
e. WLAN Card(1050) f. MDC Card(1060) g. Fan Assembly(1070) h. Retainer(1080)
i. Keyboard(1090) j. Button Sub Board(1100) k. Display Module(1110)
To Next Page
