LG G3F-TC4A User Manual

Chapter 4. FUNCTION BLOCKS
4 - 1
Chapter 4. FUNCTION BLOCKS
The followings explain the function blocks for the thermocouple input module used on the GMWIN
The types of function block are given here.
G3F
G3FG3F
G3F-
--
-TC4A
TC4ATC4A
TC4A G4F
G4FG4F
G4F-
--
-TC2A
TC2ATC2A
TC2A G6F
G6FG6F
G6F-
--
-TC2A
TC2ATC2A
TC2A
No
NoNo
No
Local Remote Local Remote Local Remote
Function
1 TC4INI TCR4INI TC2INI TCR2INI TC2INI TCR62INI
Module Initialization
2 TC4ARD TCR4RD TC2ARD TCR2RD TC2ARD TCR62RD
Reading the temperature
conversion value
(Array type)
3 TC4RD - TC2RD - TC2RD -
Reading the temperature
conversion value
(Single type)

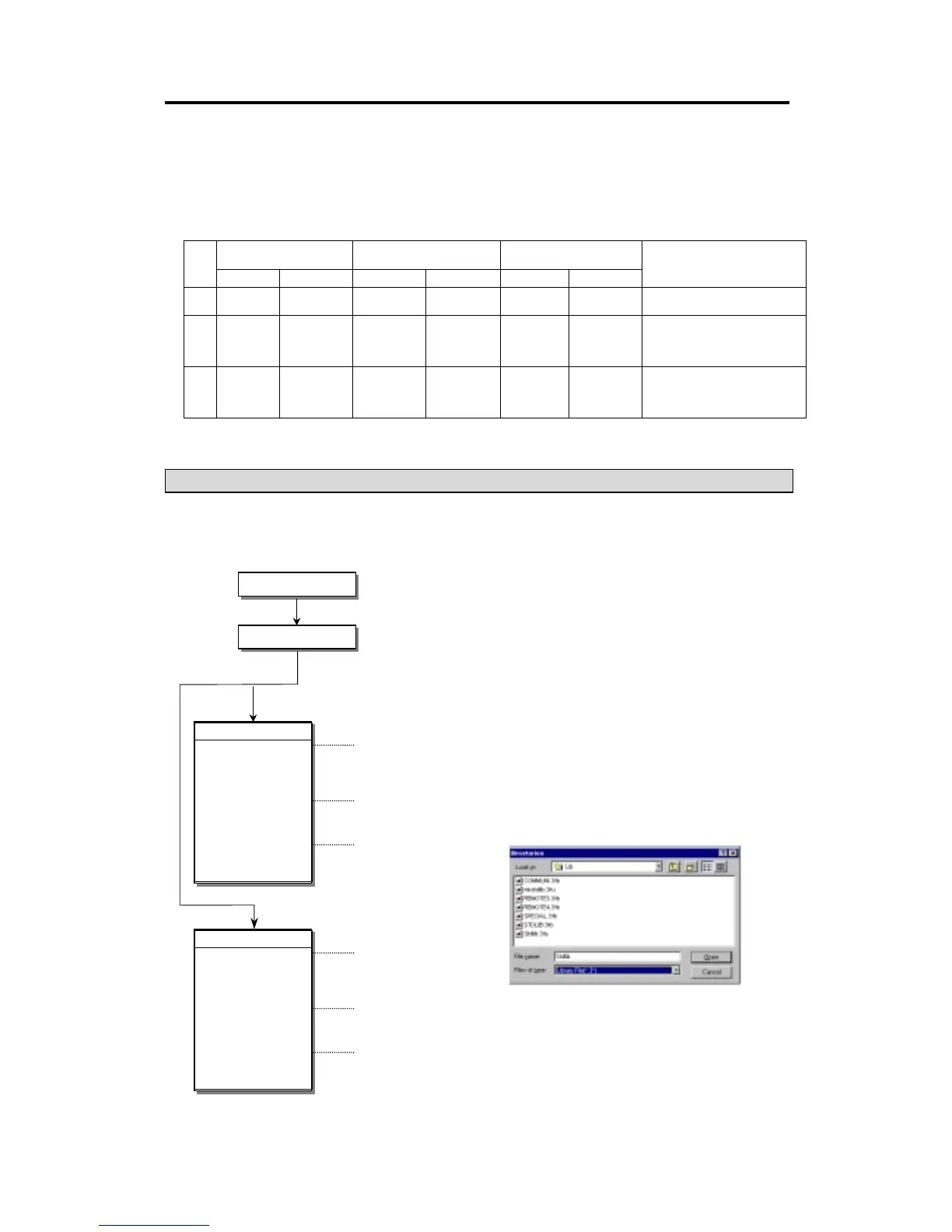

4.1 Insertion of the Function Blocks for the Thermocouple Input Module on the GMWIN.
Function blocks can be registered with the following procedure while the GMWIN is running.
Insertion of the function blocks is only possible when a project is open.
G4F-TC2A
1. Special. 4fb
•
TC2INI
•
TC2ARD
•
TC2RD
2. Remote4.4fb
•
TCR2INI
•
TCR2RD
3. Remote3.4fb
•
TCR4INI
•
TCR4RD
Project (P)
Library Insert (I)
G3F-TC4A
1. Special. 3fb
•
TC4INI
•
TC4ARD
•
TC4RD
2. Remote3.3fb
•
TCR4INI
•
TCR4RD
3. Remote4.3fb
•
TCR2INI
•
TCR2RD
Inserting local
function block
Inserting GM3 remote
function block
Inserting GM4 remote
function block
Inserting local
function block
Inserting GM4 remote
function block
Inserting GM3 remote
function block
Selection
